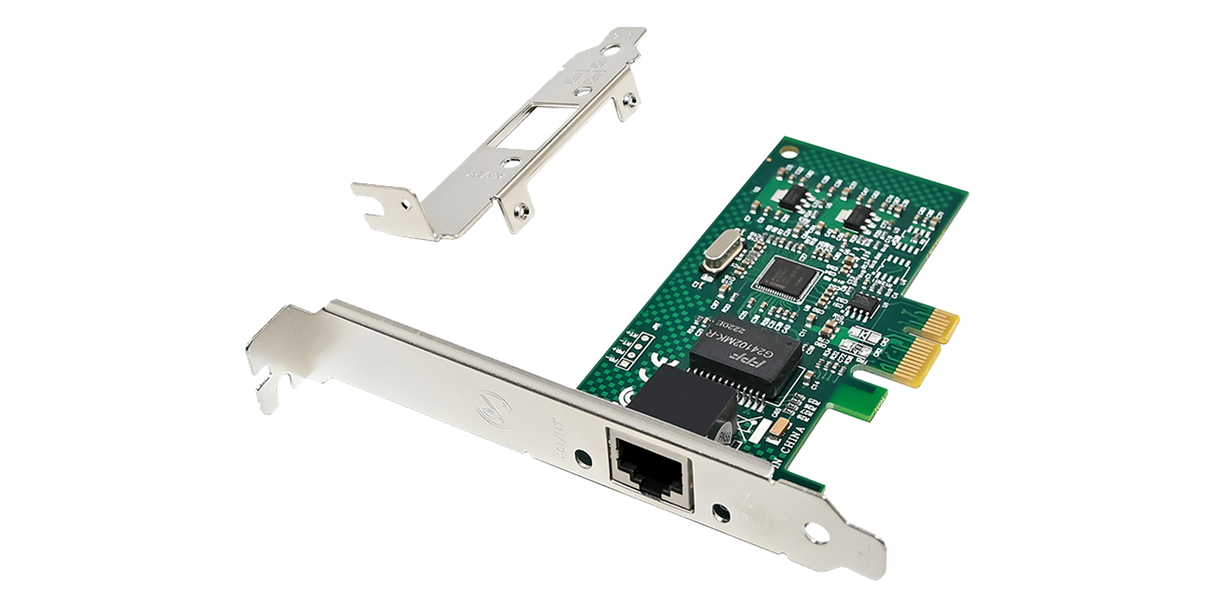

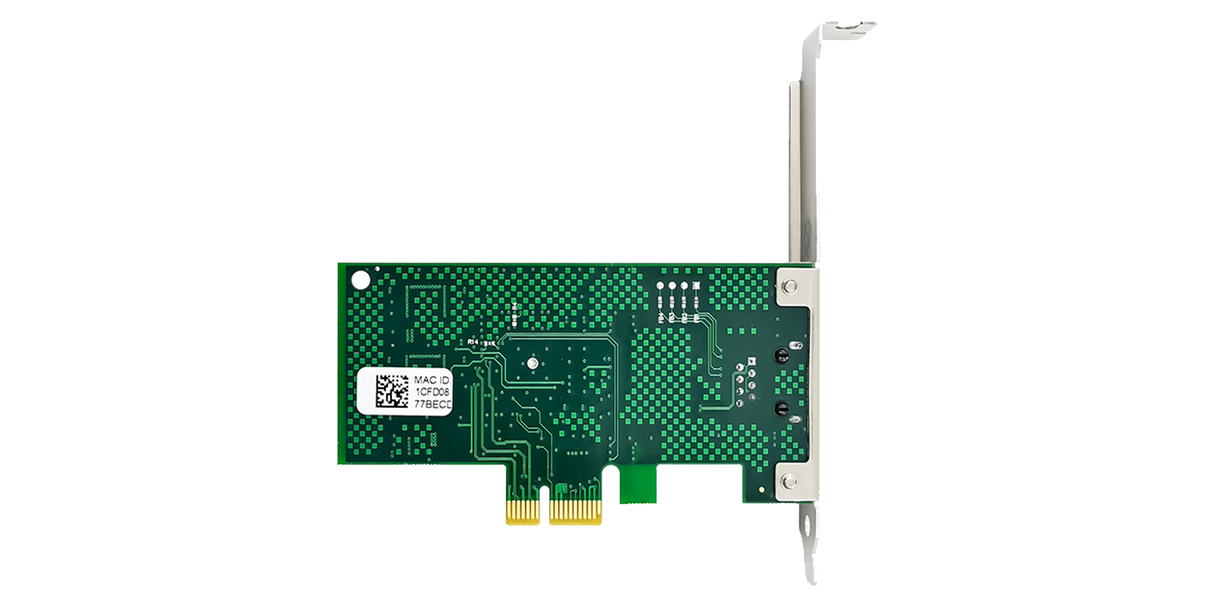

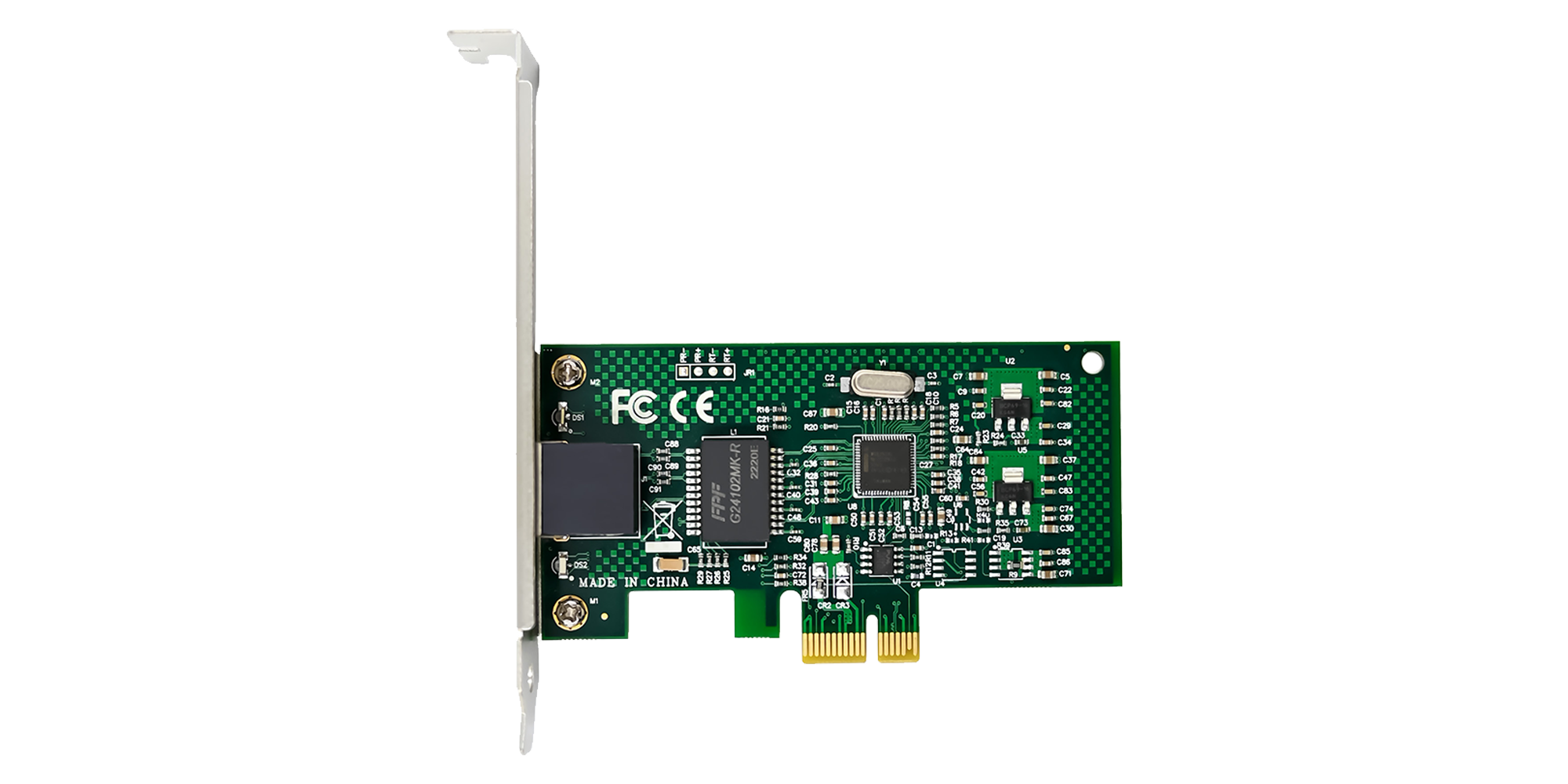

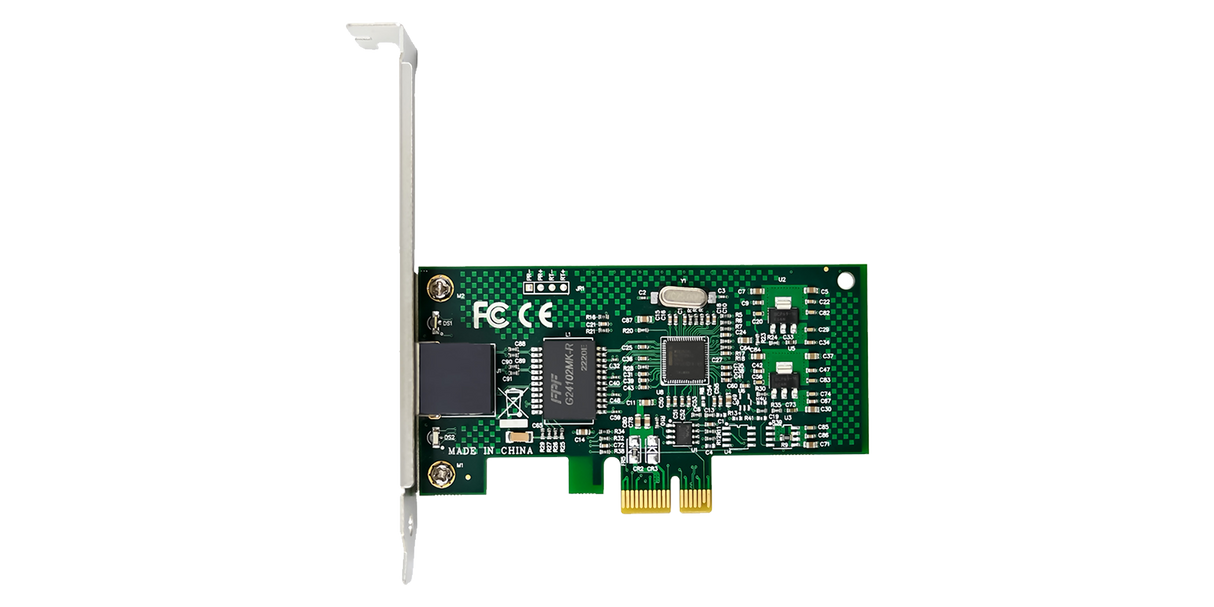

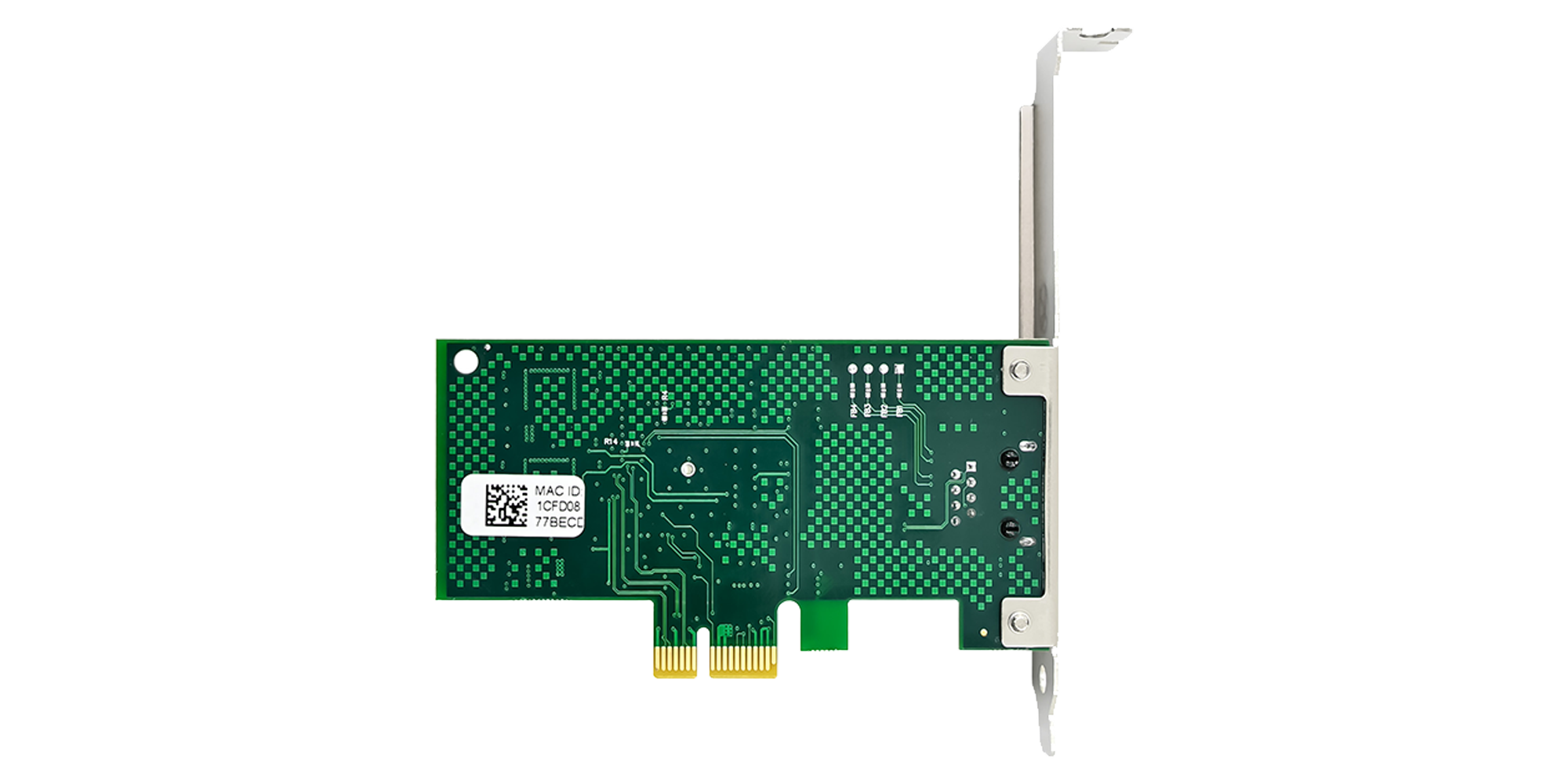

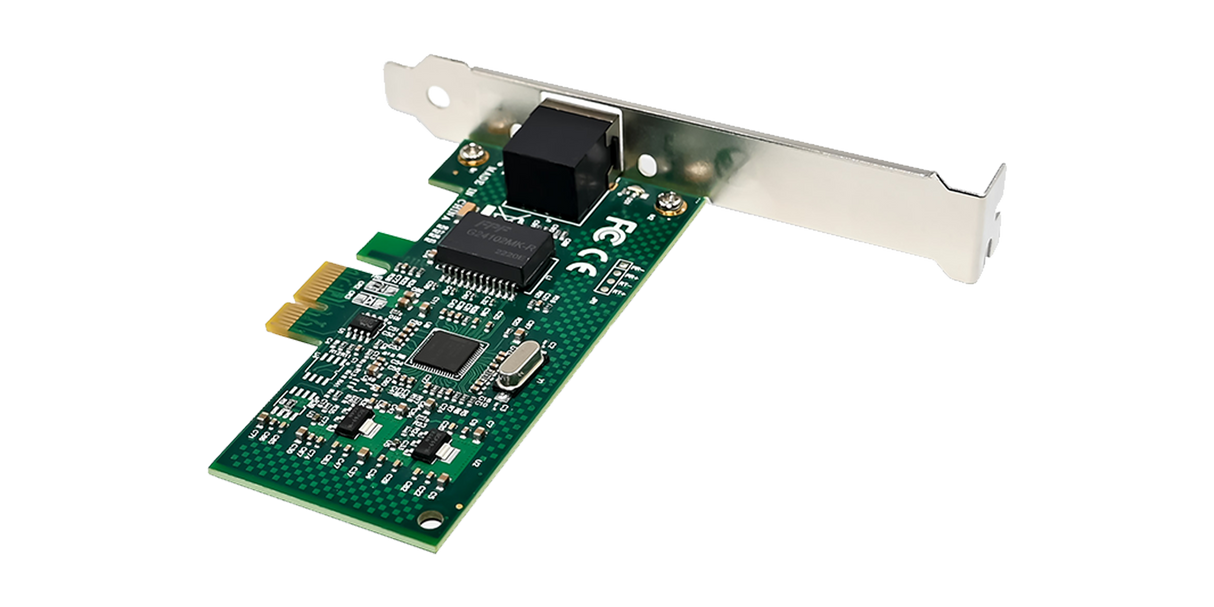

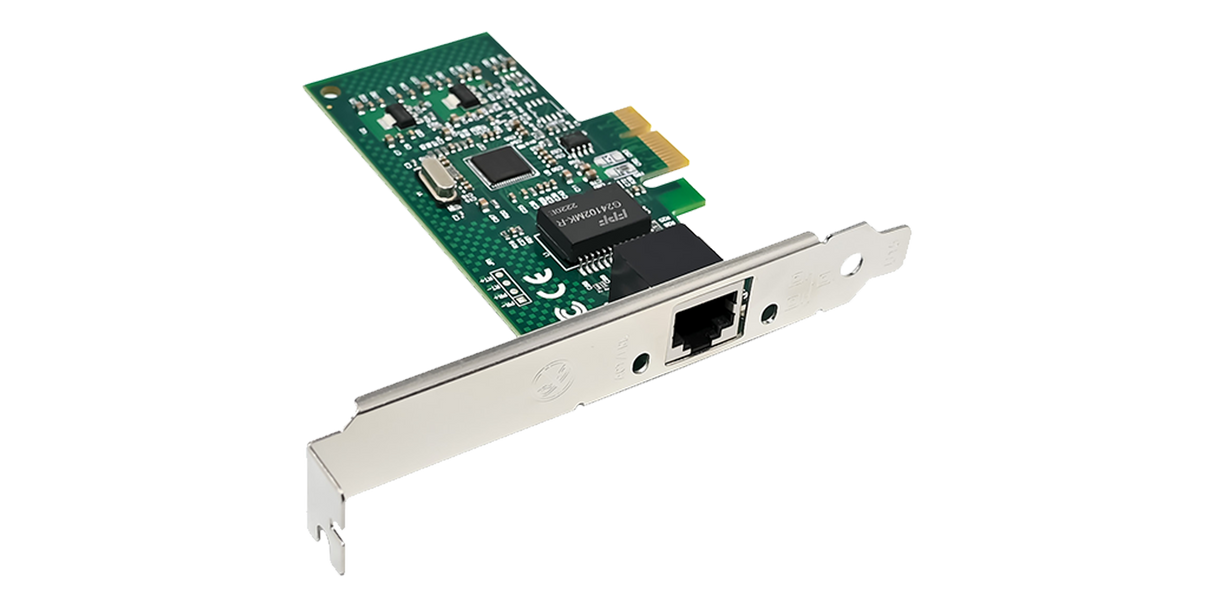

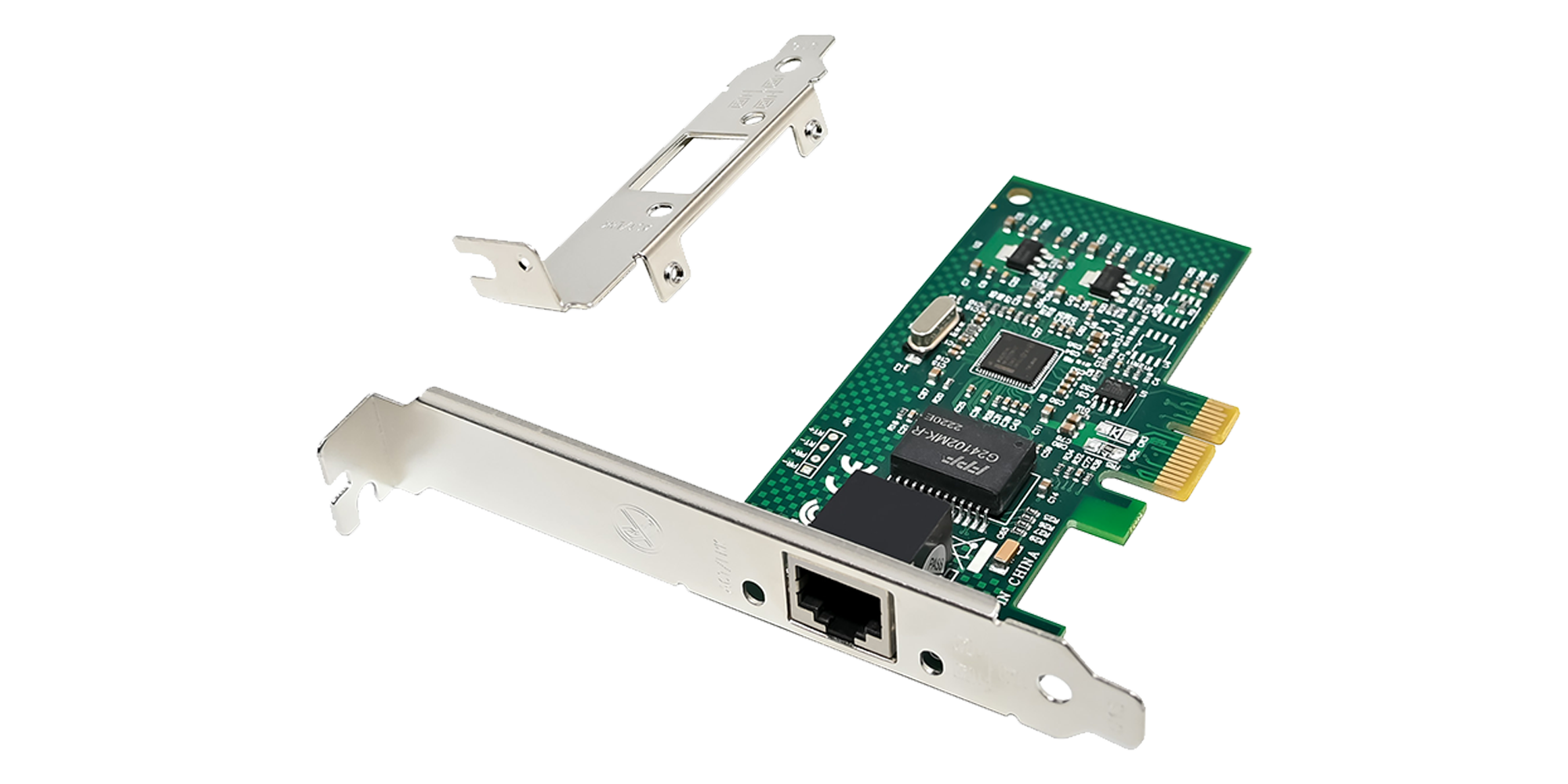

Intel 82574L based NIC PCIe 1.1 x1 Single Port 1GbE RJ45

Intel 82574L based NIC PCIe 1.1 x1 Single Port 1GbE RJ45

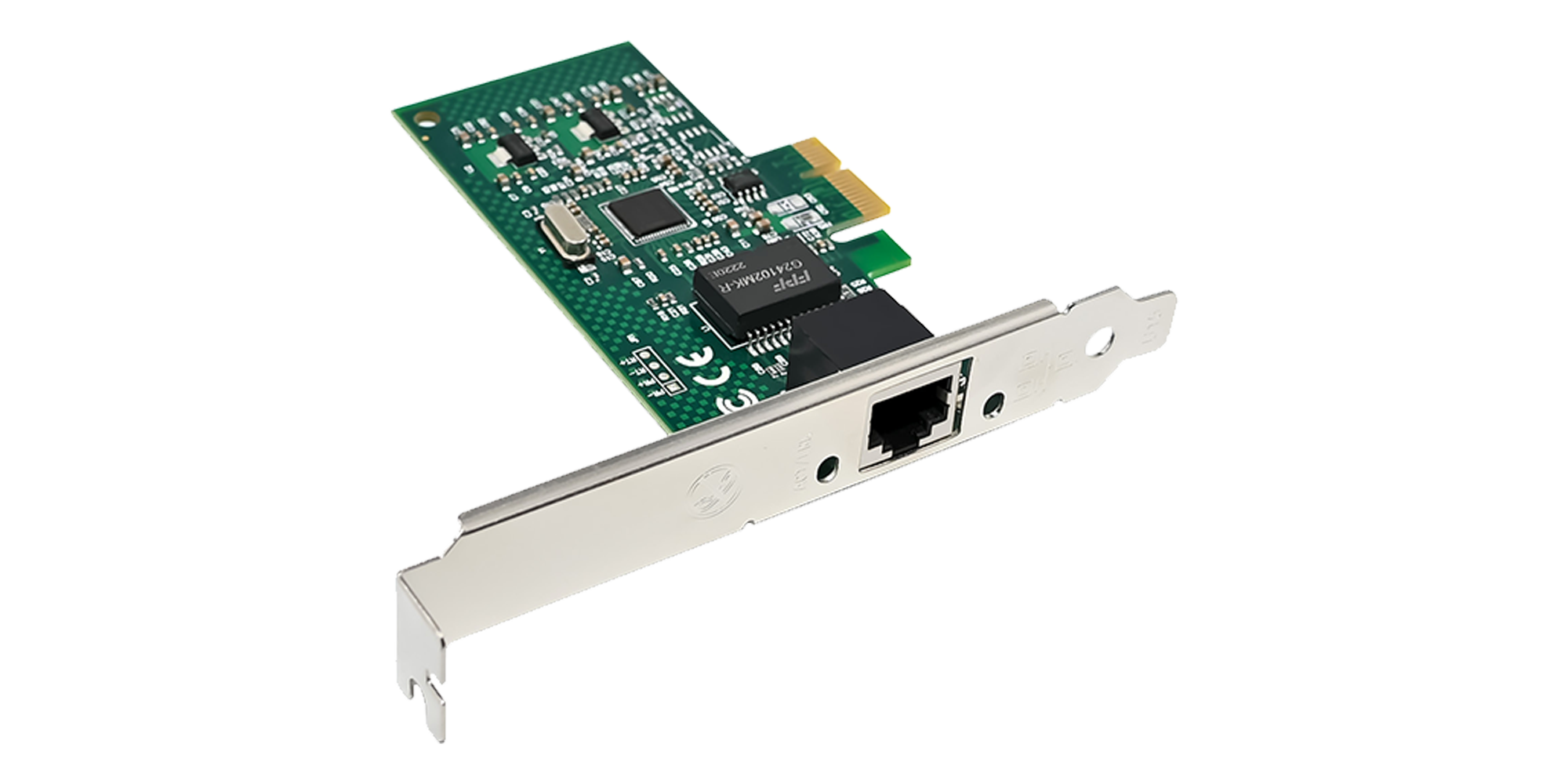

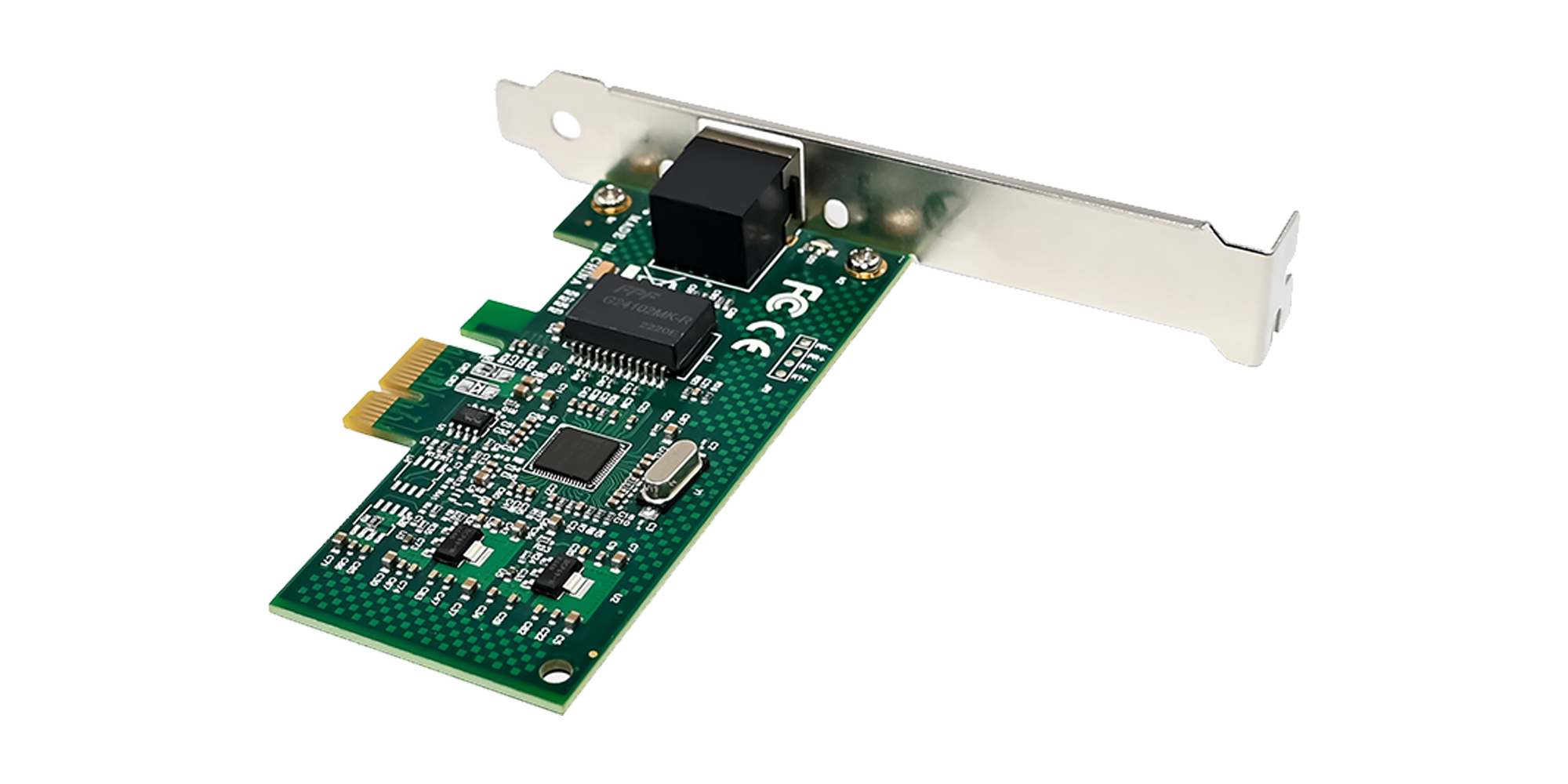

This PCIe Gigabit Network card has compact, low power components that offer a fully integrated Gigabit Ethernet Media Access Control and physical layer port. It is used for the Intel high-performance chip WG82574L, and uses the PCI Express architecture. This provides a single-port implementation in a relatively small area so it can be used for servers and any other personal computers.

System Requirements

• FreeBSD, Linux, VMware ESXi, XP, Vista 8, 8.1, and 10 32/64bit
• Windows server 2003/Server2008 R2/Server2012 R2
• One available PCIe x1/x4/x8/x16 slot

Specification

• Fully compliant with PCI-Express Base Specification Revision1.1
• Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps
• Fully Plug and Play compatible
• Full-duplex operation at 10/100/1000 Mbps
• Half-duplex operation at 10/100 Mbps

• 10/100/1000 data rate auto negotiation operation

• Fully compliant with IEEE802.3, 802.3u, 802.3ab

• Supports full duplex flow control (IEEE802.3x)

• Supports IEEE802.1P Layer 2 Priority Encoding

• Supports IEEE802.1Q VLAN tagging

• IPv4 and IPv6 checksum offload support

• Receive Side Scaling (RSS) with two hardware receive queues

• Supports jumbo frame to 9k bytes

• Crossover detection and Auto correction operation
