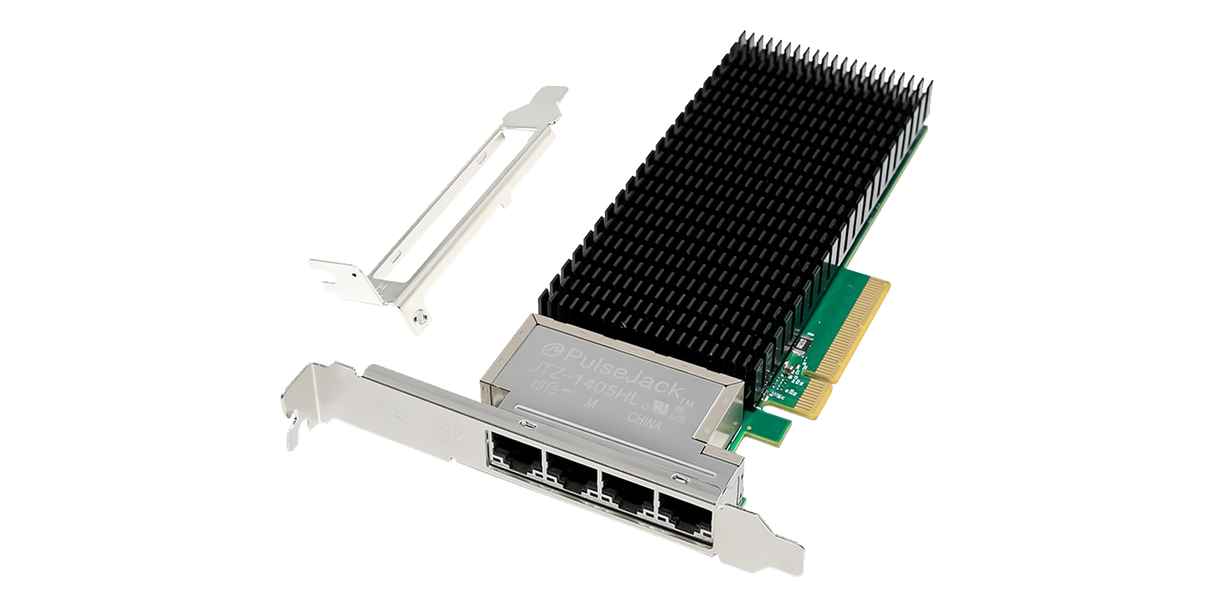

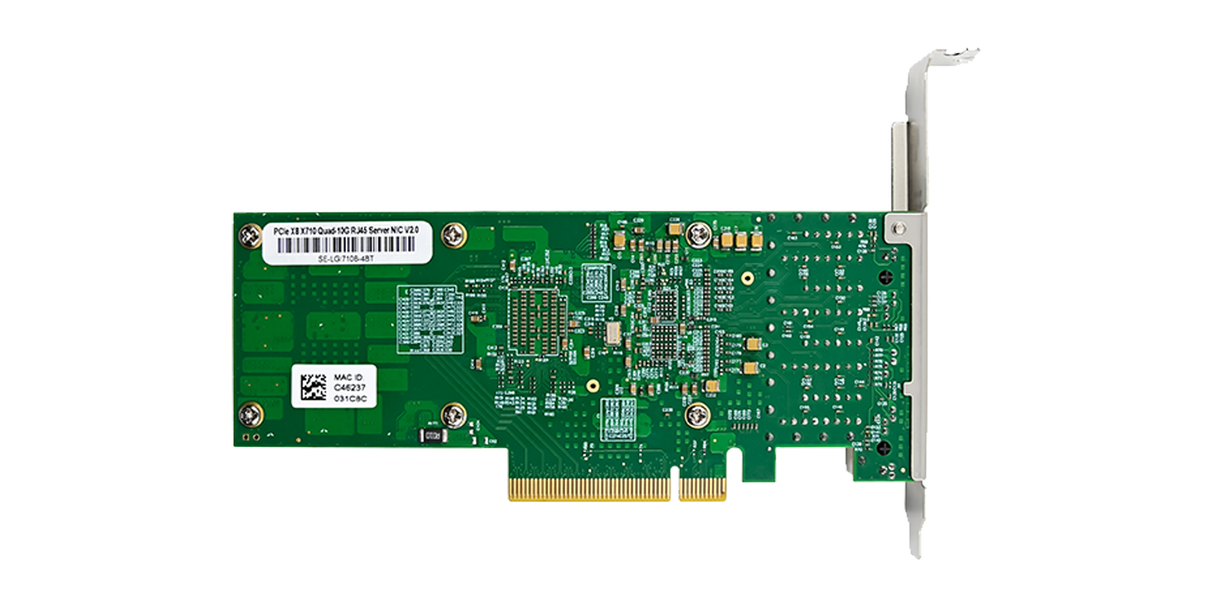

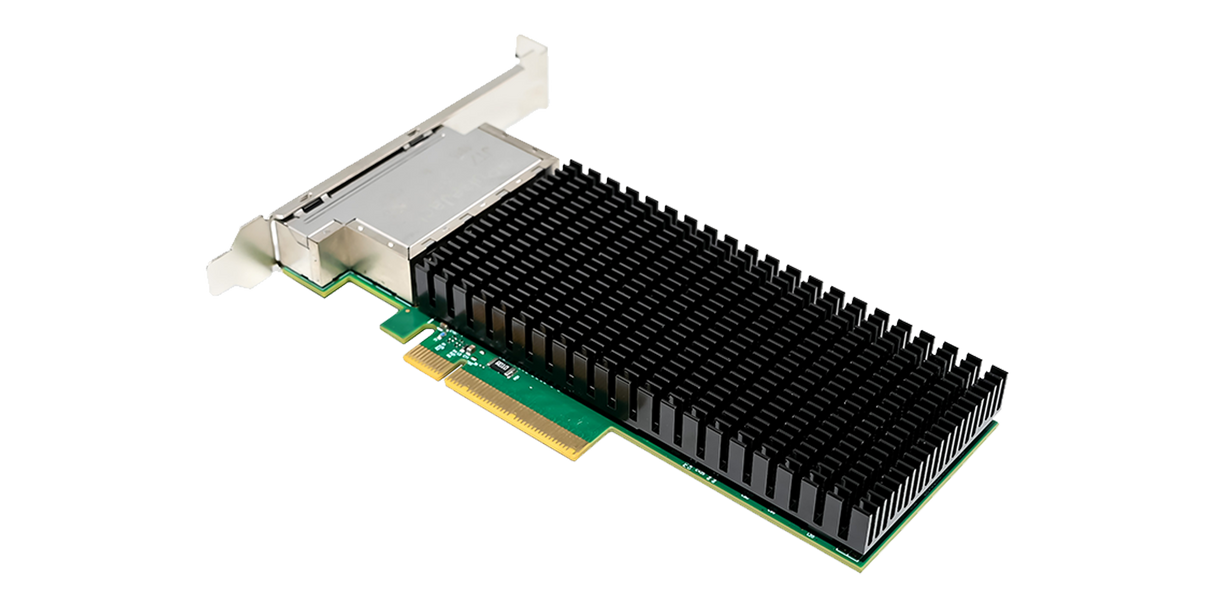

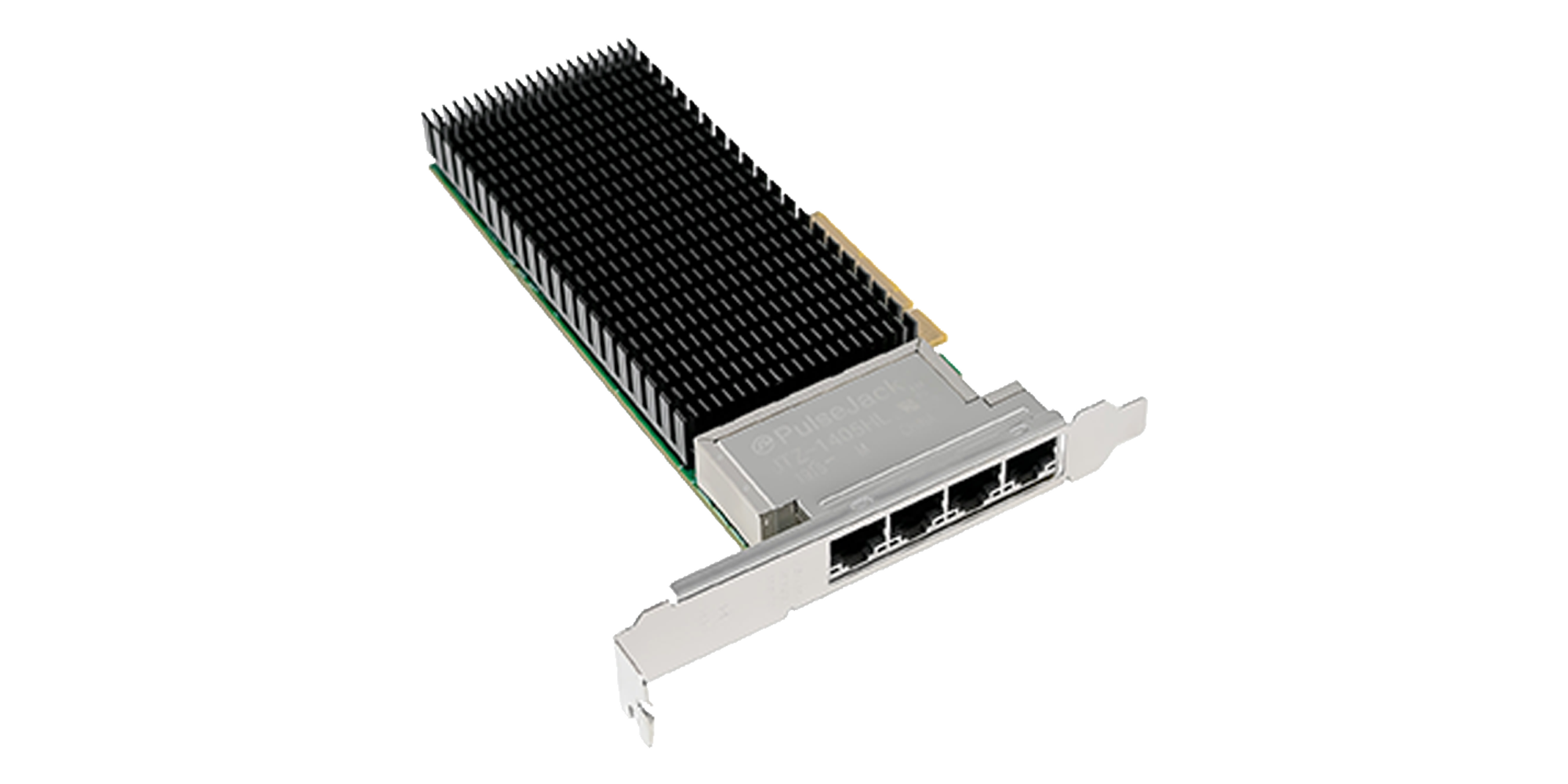

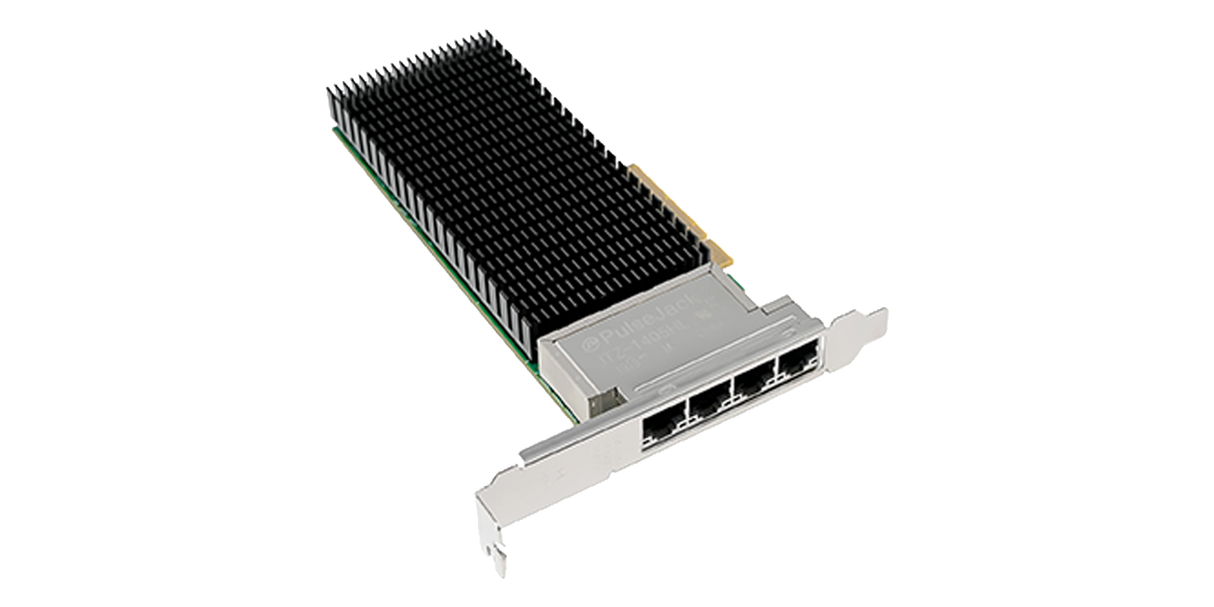

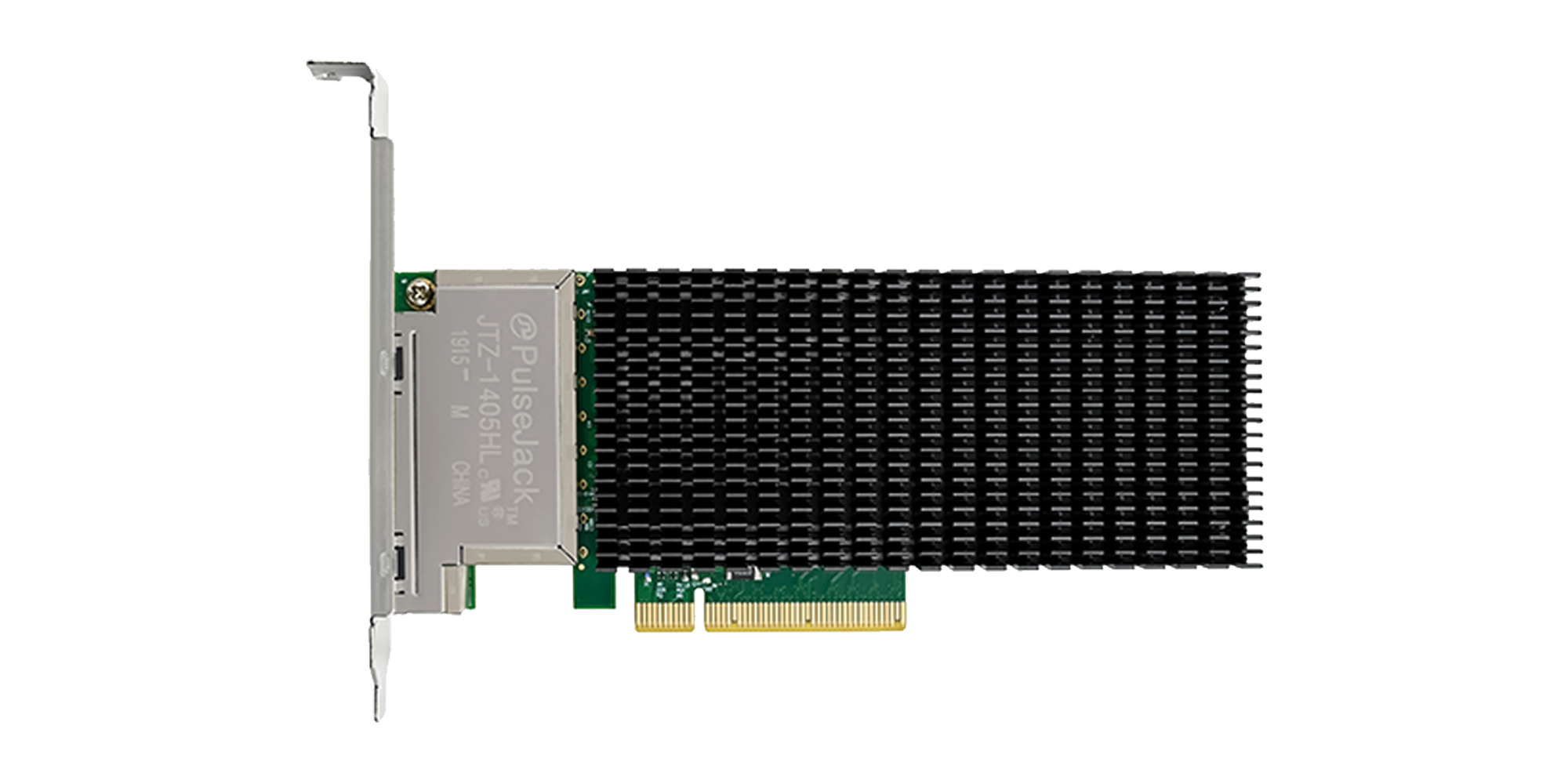

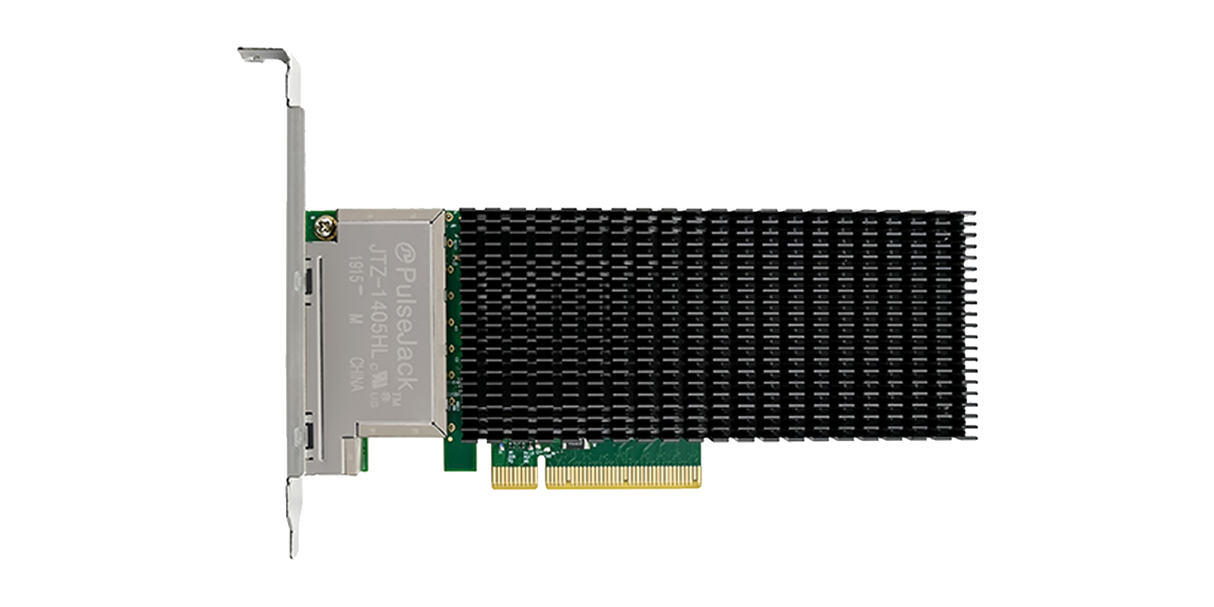

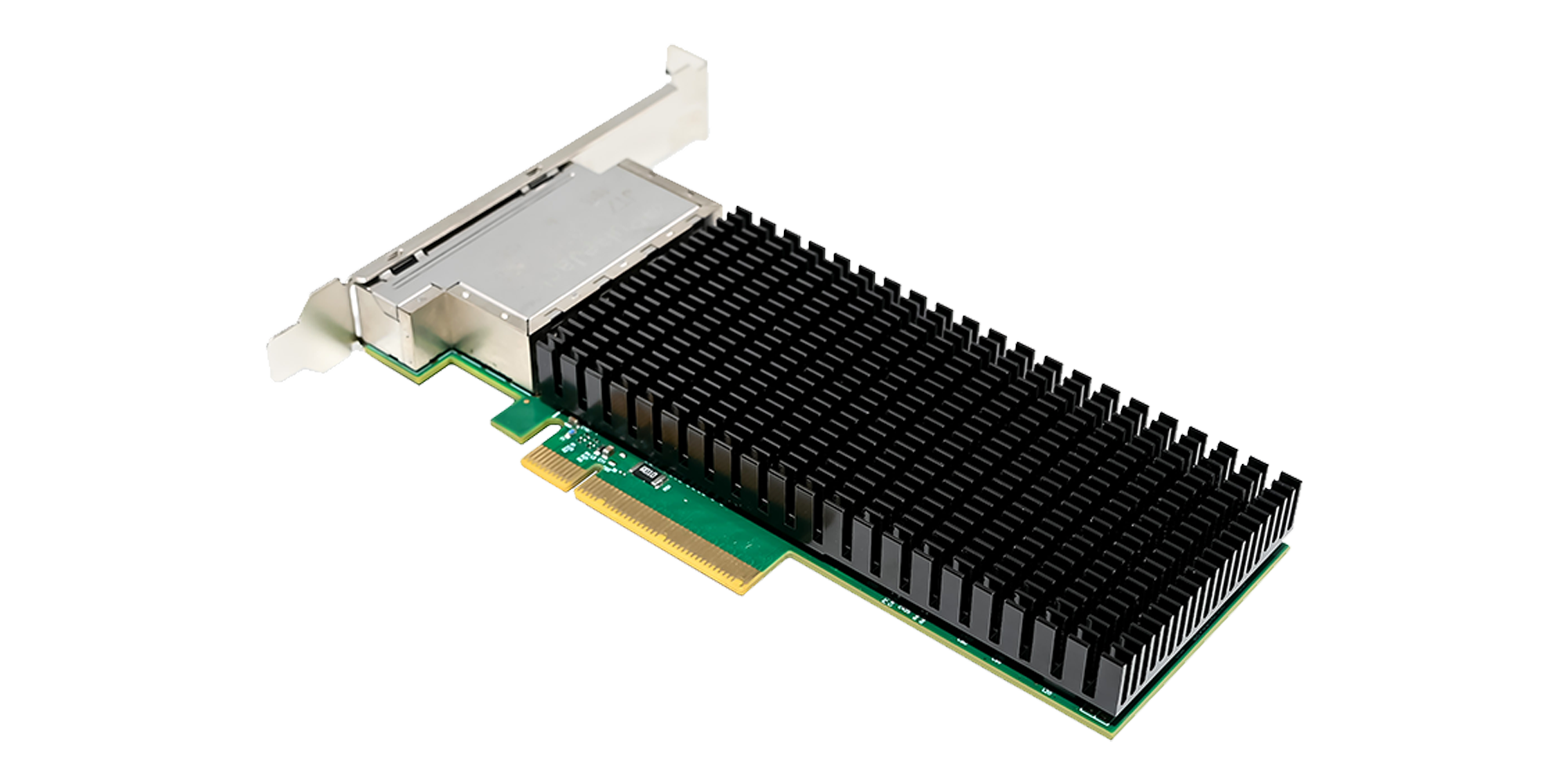

Dell® 540-BBVP alternative Intel X710 NIC PCIe 3.0 x8 Quad Port 10GbE RJ45
Buy through a distribution partner
Powered by
Dell® 540-BBVP alternative Intel X710 NIC PCIe 3.0 x8 Quad Port 10G...

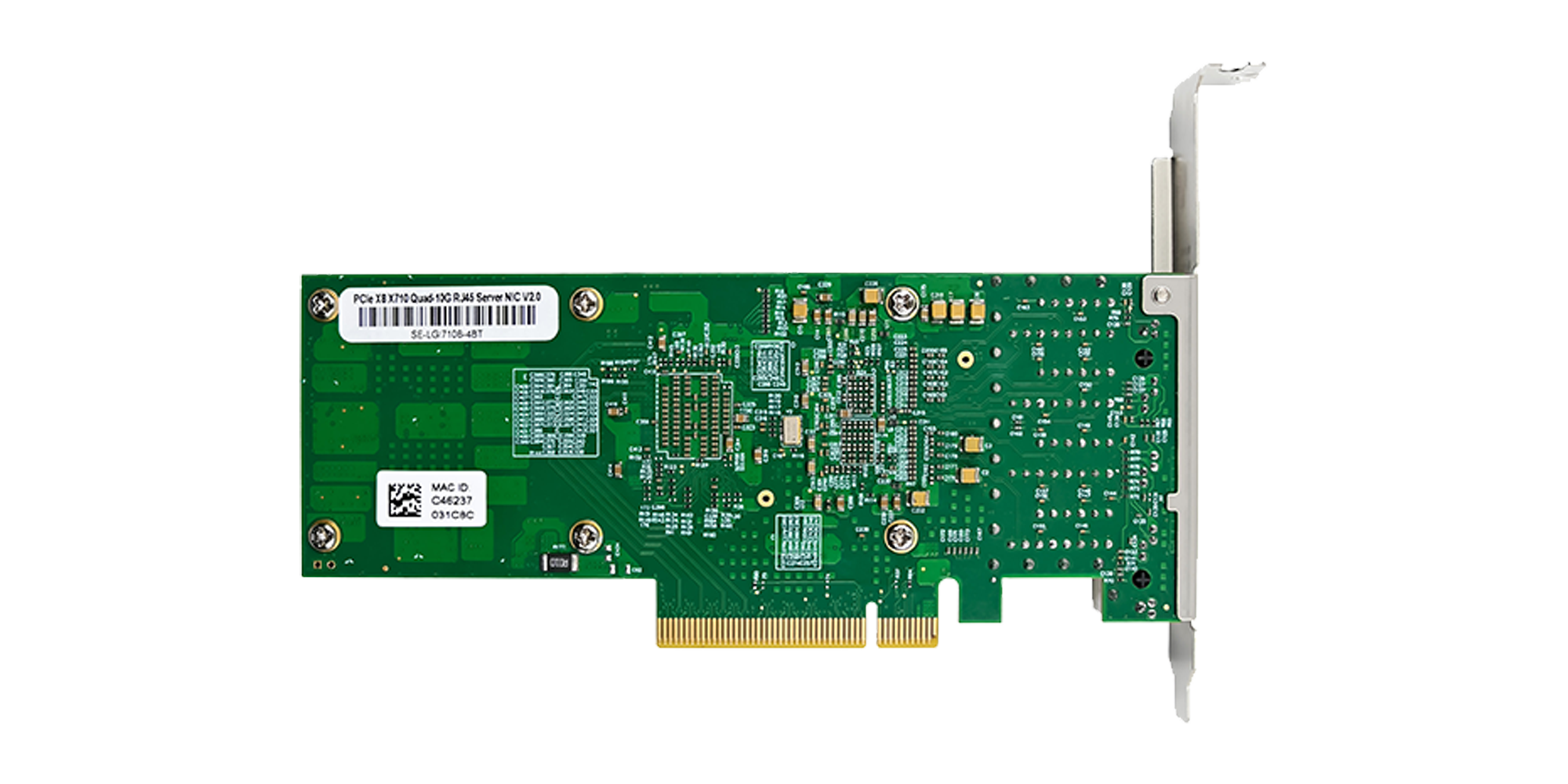

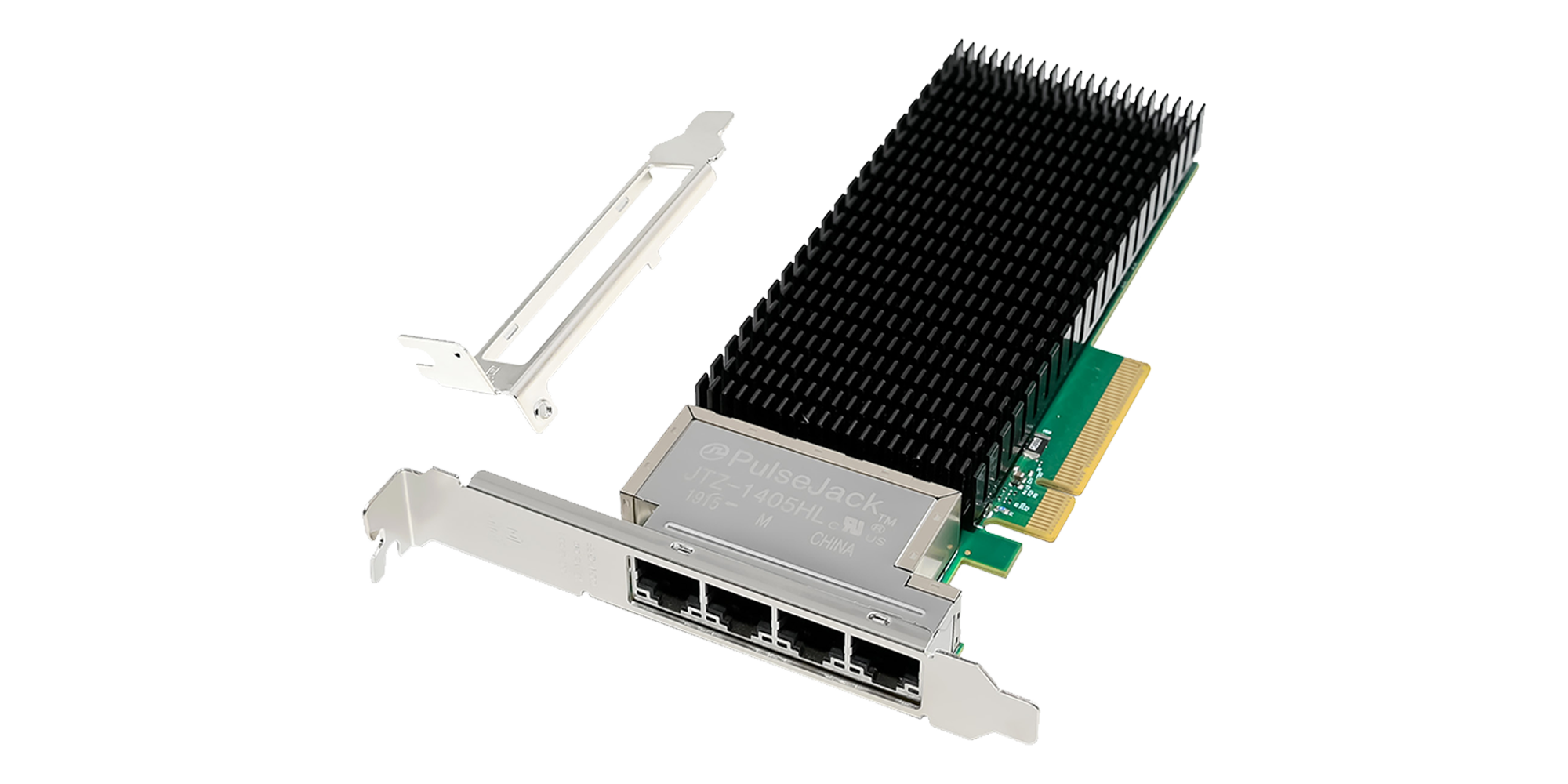

Dell® 540-BBVP alternative Intel X710 NIC PCIe 3.0 x8 Quad Port 10GbE RJ45
PCIe x8 540-BBVP Quad-Port 10G Converged adaptor 710 series implements a PCIe v3.0 x8 host interface, which operates at up to 8GT/S or 64Gb/s. It provides complete support for four 10Gb/s ports and performs all functions required for transmission and reception as specified in IEEE standards. By providing unmatched features for server and network virtualization, small packet performance, and low power, it allows data centres to be flexible, scalable, and resilient.
System Requirements
- FreeBSD, Linux, VMWare ESXi, Win-server2012 R2/ Win-server2008 R2
- One available PCI Express x8/x16 slot
Specification
- PCI-Express host interface specification v3.0 x8 and higher
- Supports the PCI Bus Power Management specification and section 5 of the PCI Express Base Specification
- PCI-Express lanes: x8
- Support quad 10Gbase-T/1000Mbase-T/100Mbase-T networks
- Network Virtualization offloads including VXLAN, NVGRE, Geneve and Network Service Headers
- Intel® Ethernet Flow director for hardware-based application traffic steering
- Intelligent offloads to enable high performance with Intel® Xeon processor-based servers
- Packet checksum offloads: Calculates IP, UDP, TCP, and Stream transmission Protocol checksums for insertion into transmitted packets and for integrity checking on received packets
- Includes support for UDP and TCP checksums in both IPv4 and IPv6 data grams
- I/O virtualization innovations for maximum performance in a virtualized server
- Support for optional End-to-End CRC generation and checking
- Supports up to 1024 LAN queue sets (768 typically available)
- Supports up to 384 VSIs with average of two TCs allocated per VSI
- Supports up to 16VEB/VEPA switching components
- IEEE802.3x flow control support
- IEEE802.3Q VLAN support with VLAN tag insertion, with stripping and packet filtering for up to 4096 VLAN tags
- Jumbo Frame support 9728 bytes
- Chipset: Intel XL710-BM1&X557
-
Connector Type
-
Data Rate
-
Storage Temperature
-
Bracket Height
-
Bus Type
-
Bus Width
-
Chipset
-
Protocol
-
Link Rate
-
Number of Ports
-
Compatible OEM
-
Operating Temperature Range
-
Safety & Environmental Standards
-
Warranty
-
Dimensions
-
ECCN
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Shipping
What does the suffix ‘-C’ mean in our part numbers?
What does the suffix ‘-C’ mean in our part numbers?
We are frequently asked what the suffix ‘-C’ means in our part numbers.
Simply put, the ‘-C’ means that our product is a Compatible version of the Original Equipment Manufacturer (OEM) part number.
For example
Cisco® Part Number: SFP-10G-SR
ATGBICS® Part Number: SFP-10G-SR-C
This method of part numbering gives our clients the assurance that they will be supplied the fully tested, 100% compatible, MSA Compliant version of the OEM part.
What does MSA Compliant mean?
Multi-Source Agreement (MSA) is a multi-vendor specification that defines the form factors and interfaces of an optical transceiver. Manufacturers adhere to MSAs to ensure interoperability and interchangeability between interface modules. This enables compatible manufacturers such as ATGBICS to provide compatible solutions to the same specification as the OEM.
With the assurance of quality, reliability and compatibility, our clients are reaping the benefits of buying compatible alternatives to OEM with significant cost savings, shorter lead times and exemplary customer service.
In short you can be sure that all our products are:
- 100% Compatible
- Fully Tested
- Backed By A Lifetime Warranty
- Conform To ALL Industry Standards & Protocols
- Each Product Uniquely Serialised And Traceable
- Up to 90% cheaper than the OEM alternative but equal in performance & reliability
- With lead times of days not weeks or months
- Easy to ensure compatibility. Our SKUs are equivalent to the OEM SKU suffixed with ‘-C’ to denote ‘compatible’
