Product Details

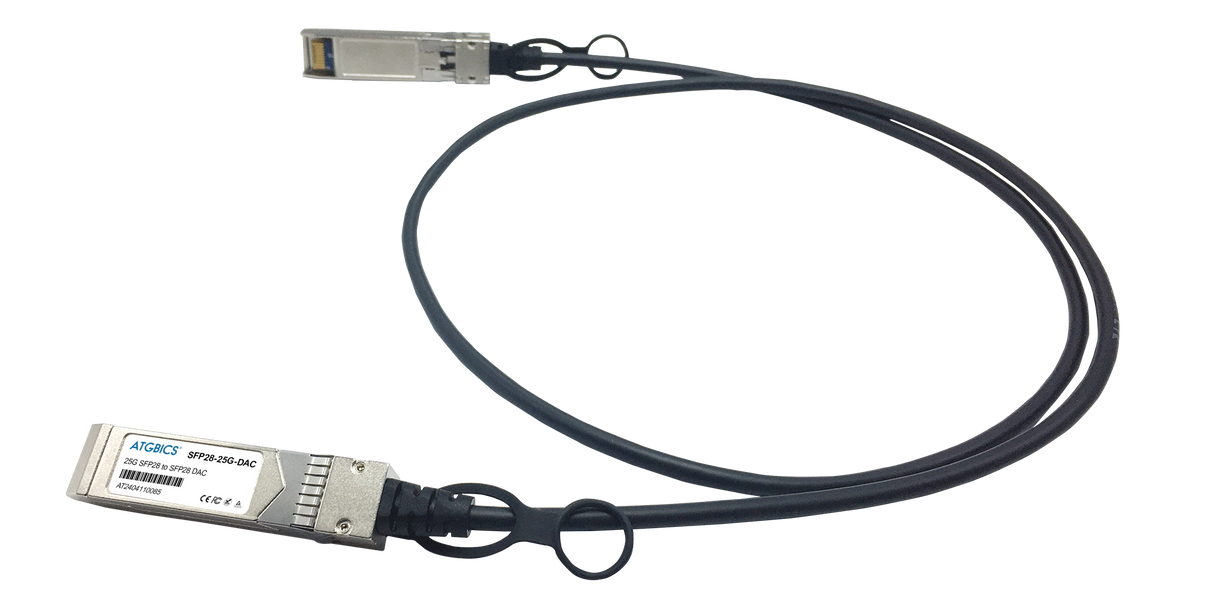

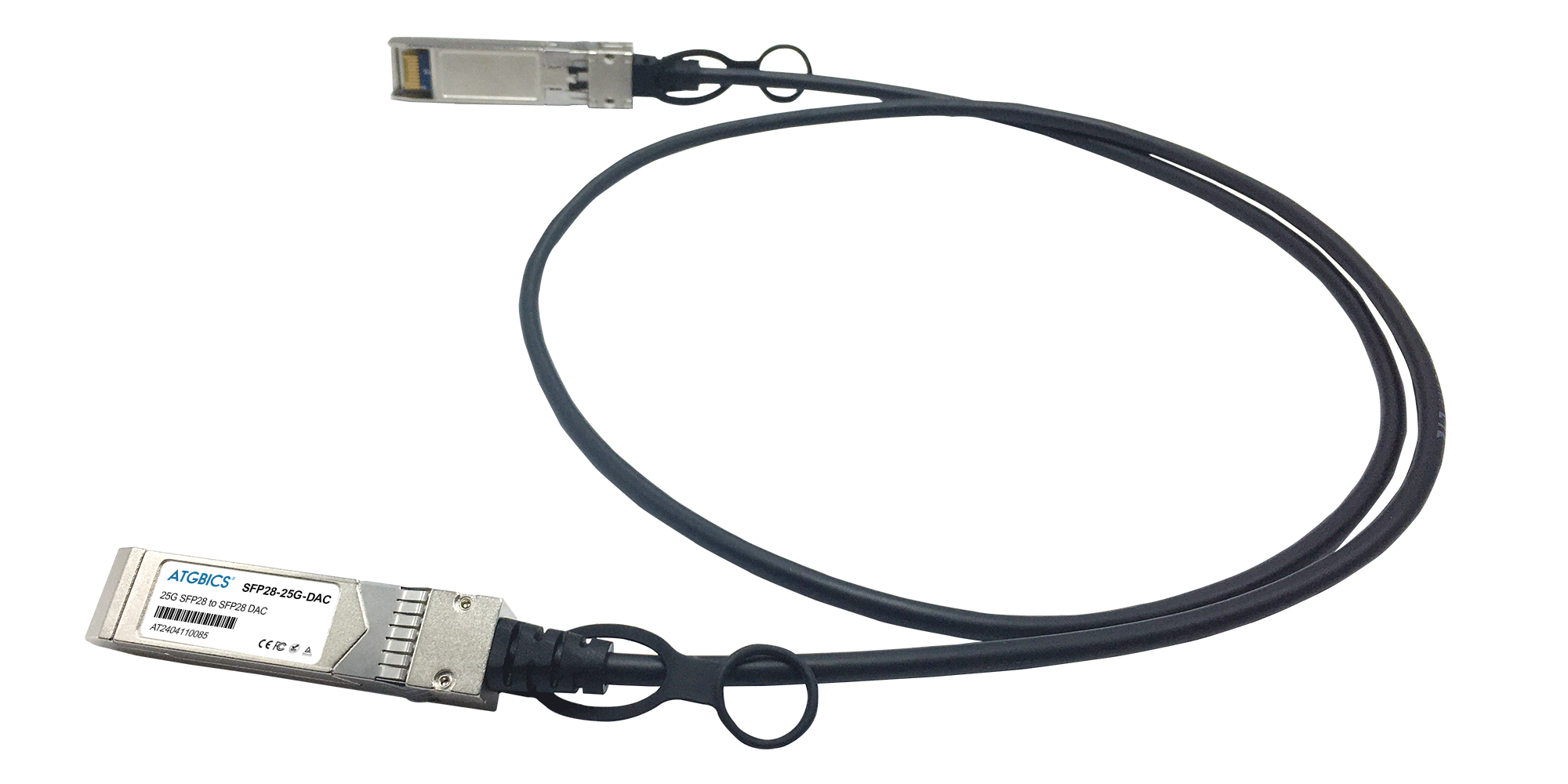

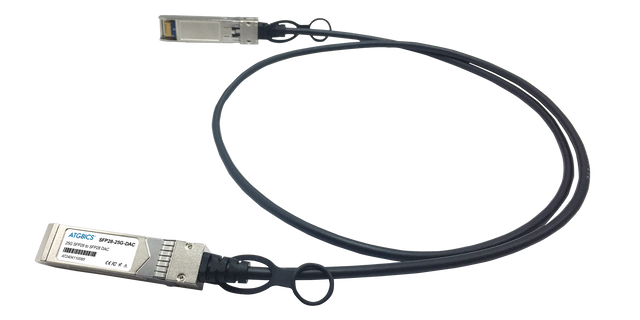

ATGBICS MCP2M00-A005AM compatible 25GBase-CU SFP28 to SFP28 direct attach cable operates over passive copper with a cable length of 5m. It is suitable for short reach connection between two SFP28 ports in 25G interconnecting networking applications. Our product meets or exceeds the specification of NVIDIA Mellanox MCP2M00-A005AM= and we proudly offer a compatibility guarantee and lifetime warranty. Our rigorously tested products record a unique traceable serial number and are fully compliant with all MSA Standards and protocols including; SFF-8402 and SFF-8432 and MSA SFP+ MSA SFF-8431.
Product Type: Direct Attach Cable 25G SFP28 to 25G SFP28
Product Description: NVIDIA Mellanox Compatible, SFP28 Direct Attach Copper Twinax Cable, 25G SFP28, 5m, Passive
Compatible OEM: NVIDIA Mellanox
Manufacturer: ATGBICS
Technical Specifications
Connector Type | SFP28 to SFP28 | Max Data Rate | 25Gbps |
Application Type | Passive Copper |
Cable Length | 5m |
Minimum Bend Radius | 25mm |
Wire AWG | 30AWG |
Jacket Material | PVC (OFNR) | Temperature range | 0 to 70°C (32 to 158°F) |
Compliance Standards | 1x InfiniBand QDR, DDR, SDR, 10G Gigabit Ethernet, Fibre Channel | Warranty | Lifetime Replacement |
