Download Datasheet
Product Details
Product Type: Fibre Optic Transceiver, QSFP56 200GBase-SR4
Product Description: Universally Coded MSA Compliant Transceiver, QSFP56, 200GBase-SR4, 850nm, MMF, 100m, MPO-12, DOM
Compatible OEM: Universally Coded MSA Compliant
Manufacturer: ATGBICS
Form Factor | QSFP56 | Max Data Rate | 200Gbps |
Max Distance | 100m | Wavelength | 850nm |
Interface |
MPO-12 |
Cable Type | MMF |
DOM Support | Yes | Temperature range | 0 to 70°C (32 to 158°F) |
Compliance Standards | 100G Ethernet, MSA Compliant | Warranty | Lifetime Replacement |
Dimensions | 8.5 x 13.4 x 56.5mm | Weight | 42 grams |

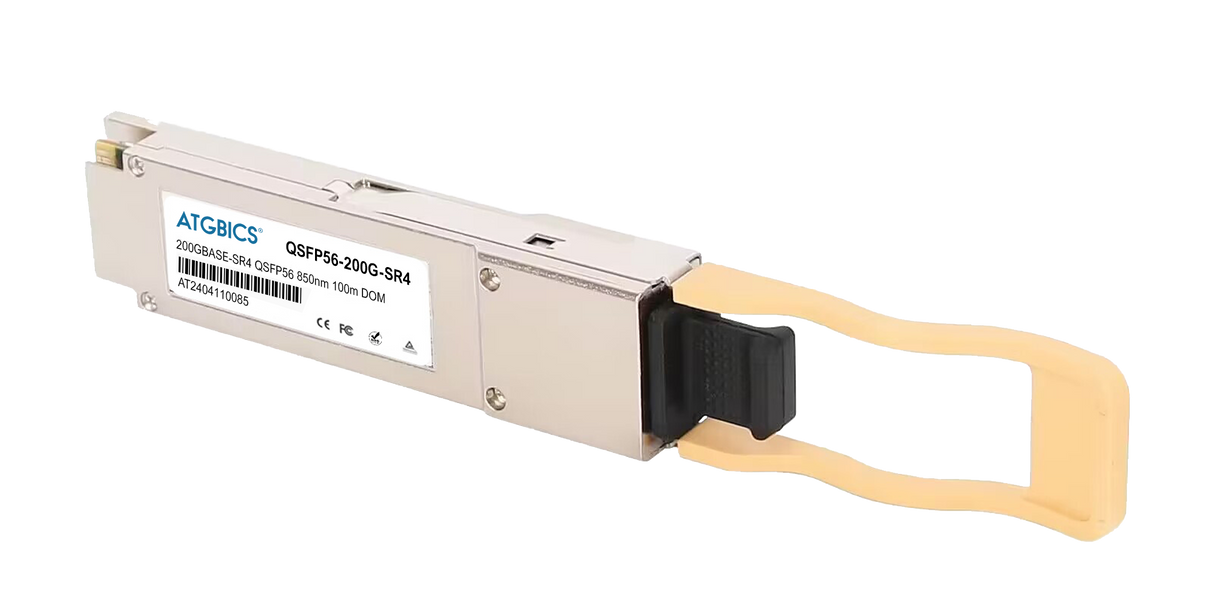

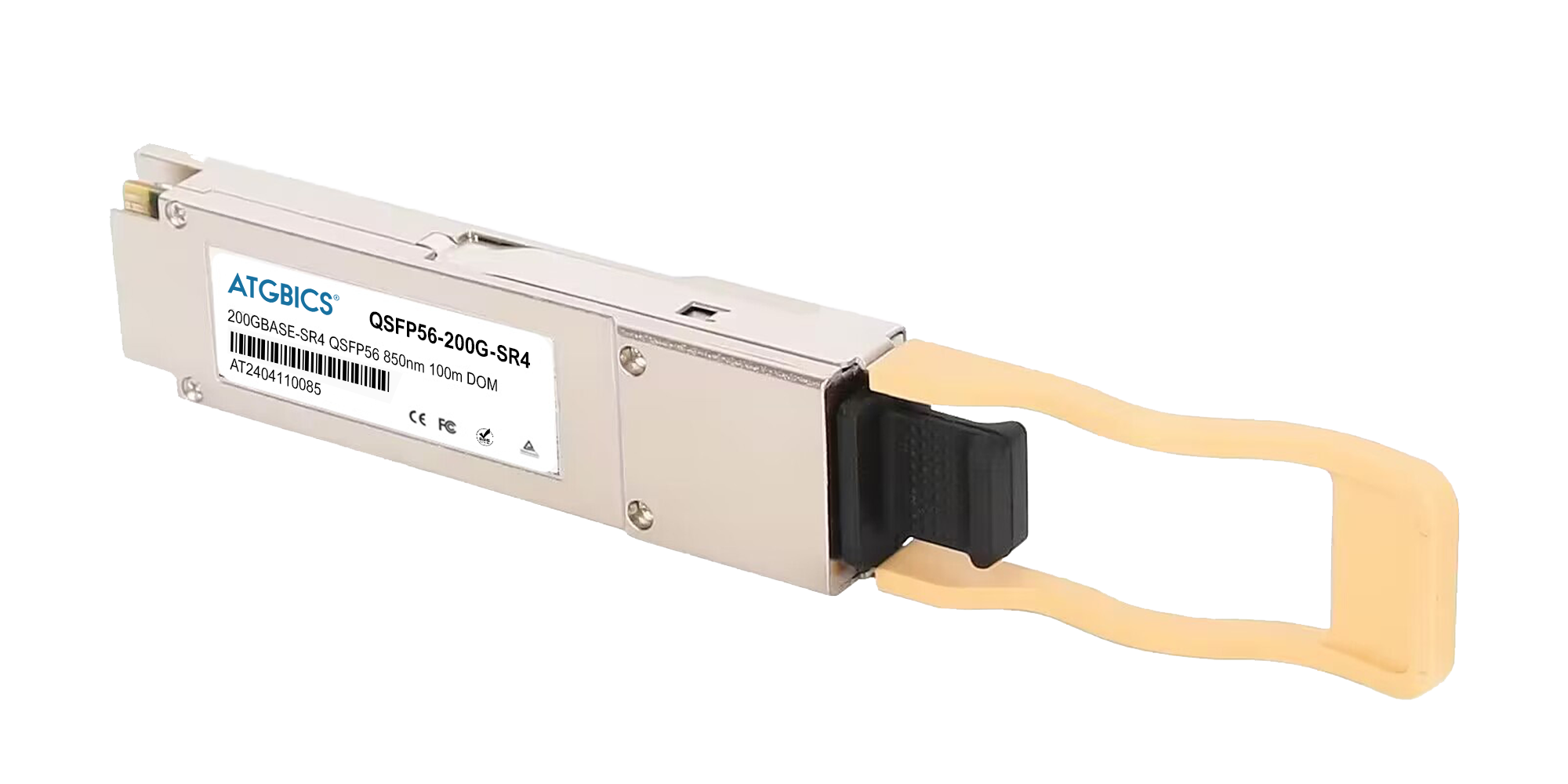

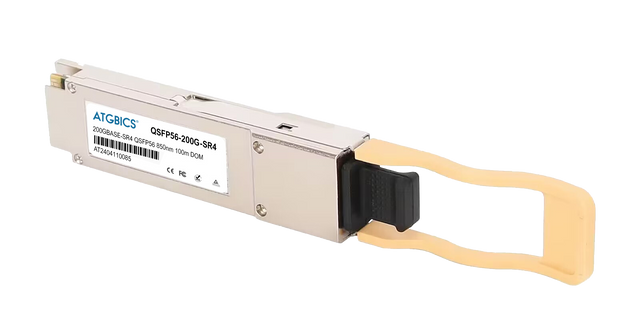

ATGBICS QSFP-200G-SR-MSA-AT Universally Coded MSA Compliant 200GBase-SR4 QSFP56 supports a distance of up to 100m over OM4 multi-mode fibre (MMF) using a wavelength of 850nm via an MPO-12 connector. Digital optical monitoring (DOM) support is also present enabling real-time monitoring of the parameters of the fibre optic transceiver.
Our product meets all Multi-Source Agreement (MSA) standards for this form factor and are uniquely serialised for full date code and BOM traceability. We proudly offer a compatibility guarantee and lifetime replacement warranty.
