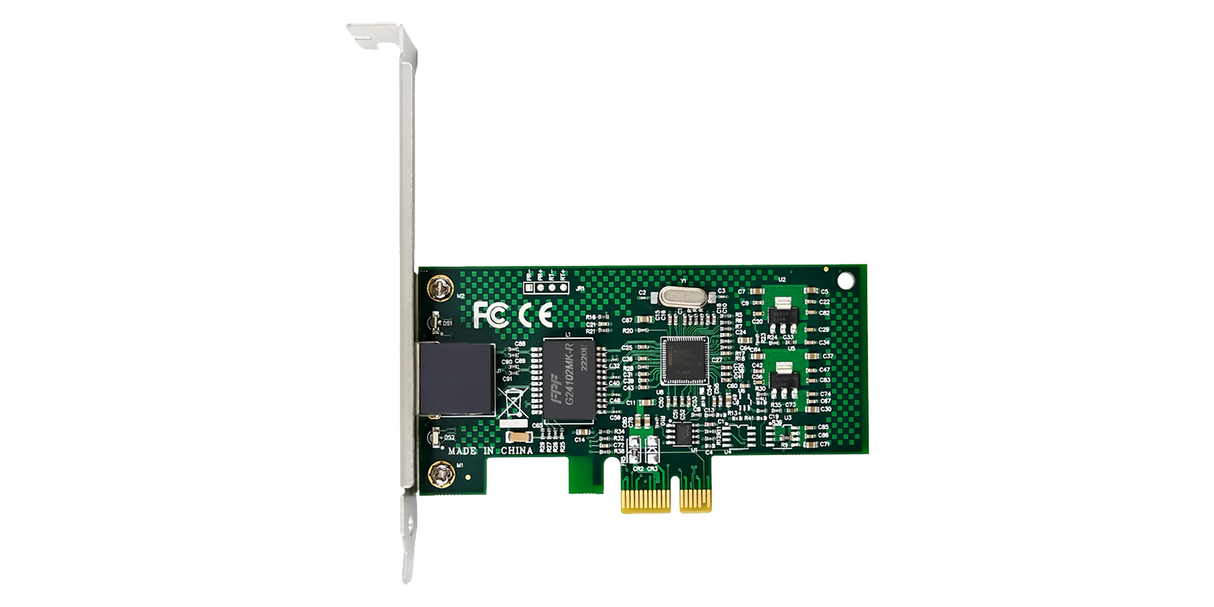

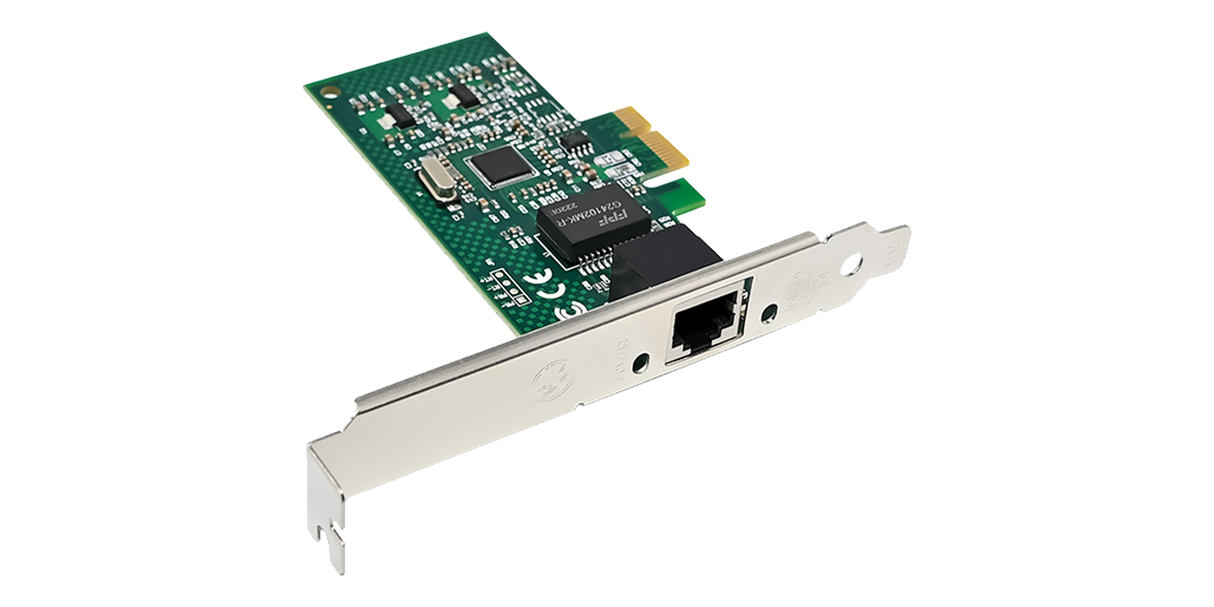

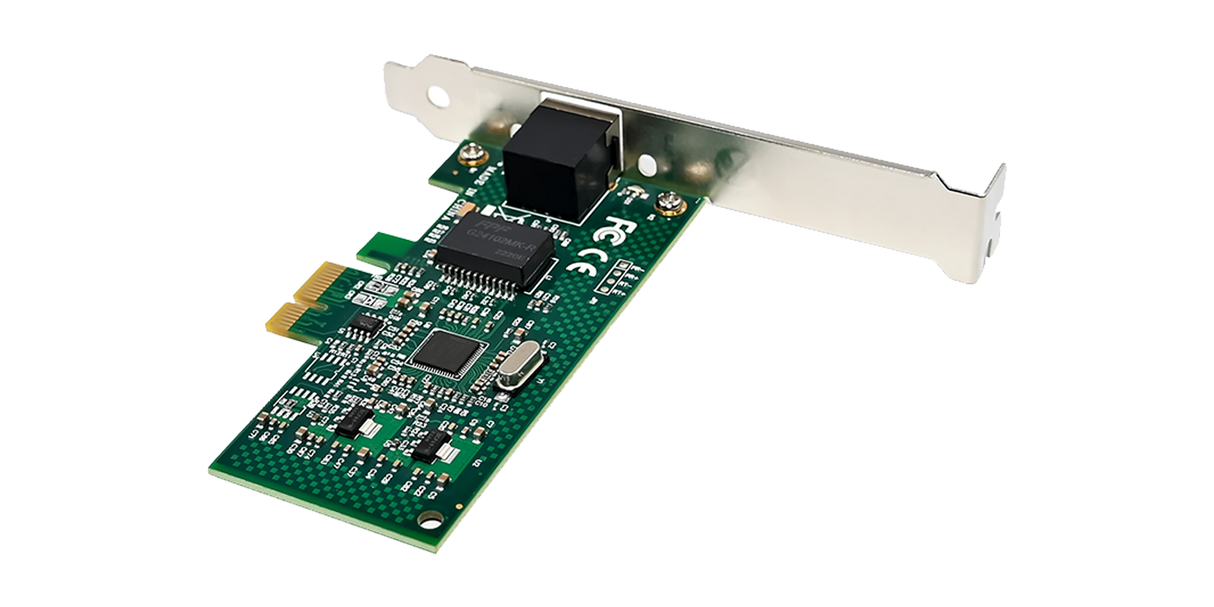

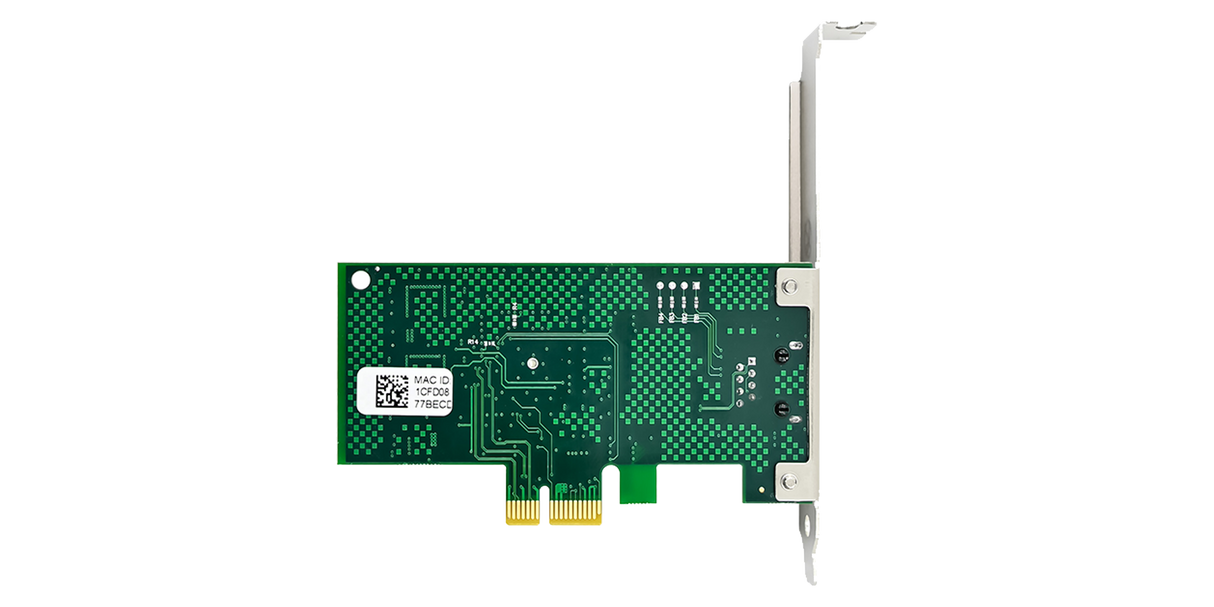

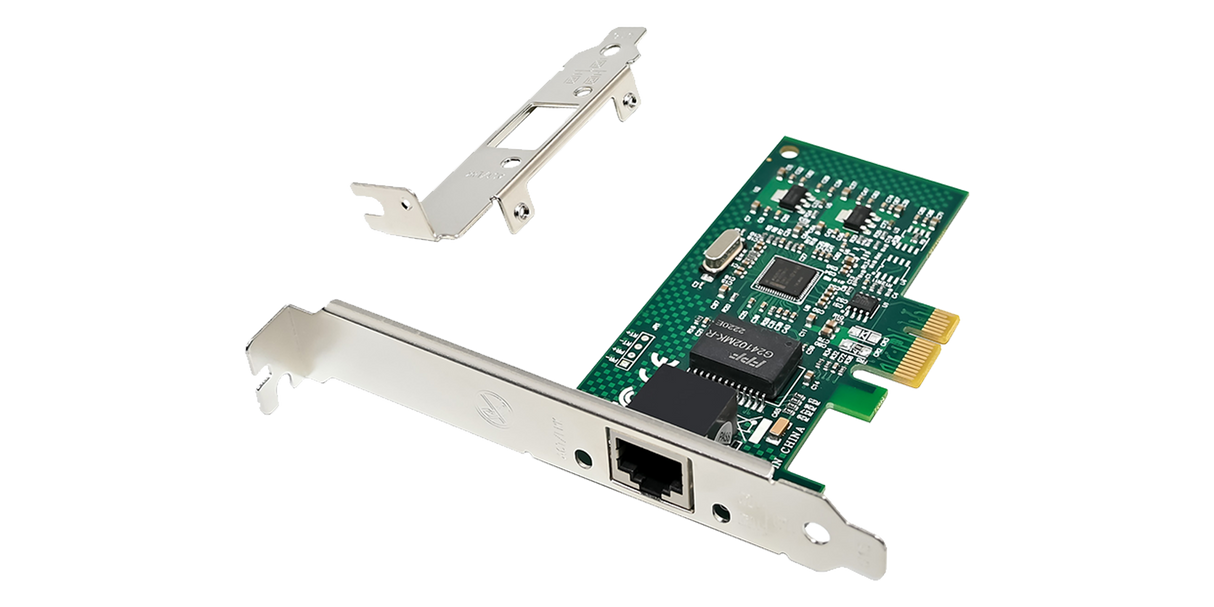

HPE® 503746-B21 alternative Intel 82574L NIC PCIe 1.1 x1 Single Port 1GbE RJ45

HPE® 503746-B21 alternative Intel 82574L NIC PCIe 1.1 x1 Single Port 1GbE RJ45

This PCIe Gigabit Network card has compact, low power components that offer a fully integrated Gigabit Ethernet Media Access Control and physical layer port. It is used for the Intel high-performance chip WG82574L, and uses the PCI Express architecture. This provides a single-port implementation in a relatively small area so it can be used for servers and any other personal computers.

System Requirements

• FreeBSD, Linux, VMware ESXi, XP, Vista 8, 8.1, and 10 32/64bit
• Windows server 2003/Server2008 R2/Server2012 R2
• One available PCIe x1/x4/x8/x16 slot

Specification

• Fully compliant with PCI-Express Base Specification Revision1.1
• Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps
• Fully Plug and Play compatible
• Full-duplex operation at 10/100/1000 Mbps
• Half-duplex operation at 10/100 Mbps

• 10/100/1000 data rate auto negotiation operation

• Fully compliant with IEEE802.3, 802.3u, 802.3ab

• Supports full duplex flow control (IEEE802.3x)

• Supports IEEE802.1P Layer 2 Priority Encoding

• Supports IEEE802.1Q VLAN tagging

• IPv4 and IPv6 checksum offload support

• Receive Side Scaling (RSS) with two hardware receive queues

• Supports jumbo frame to 9k bytes

• Crossover detection and Auto correction operation
