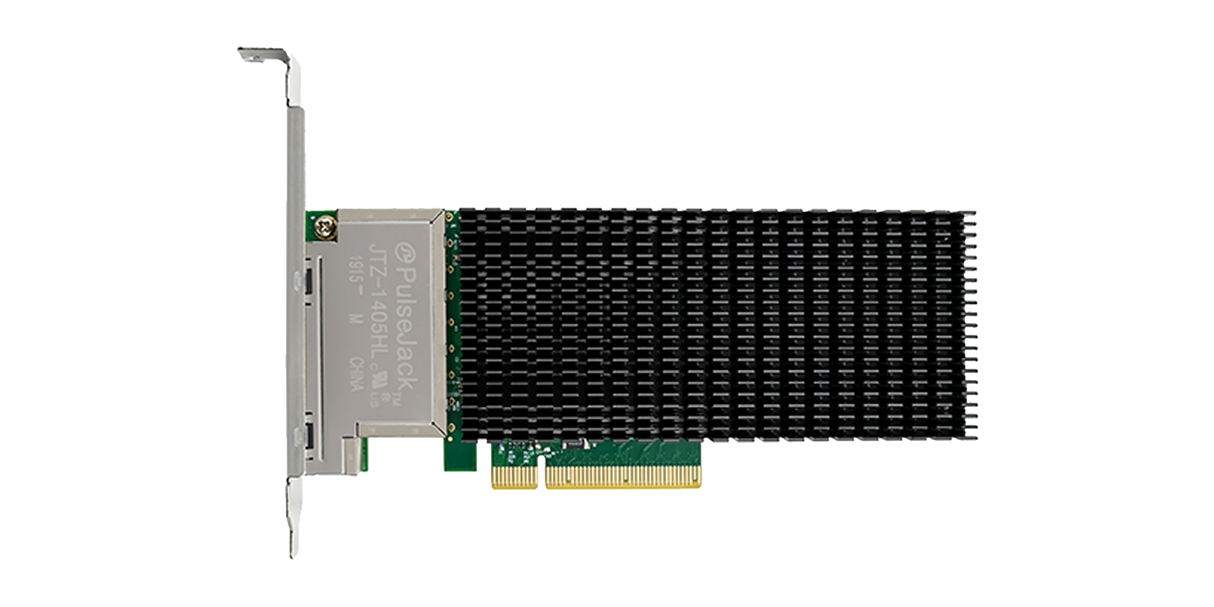

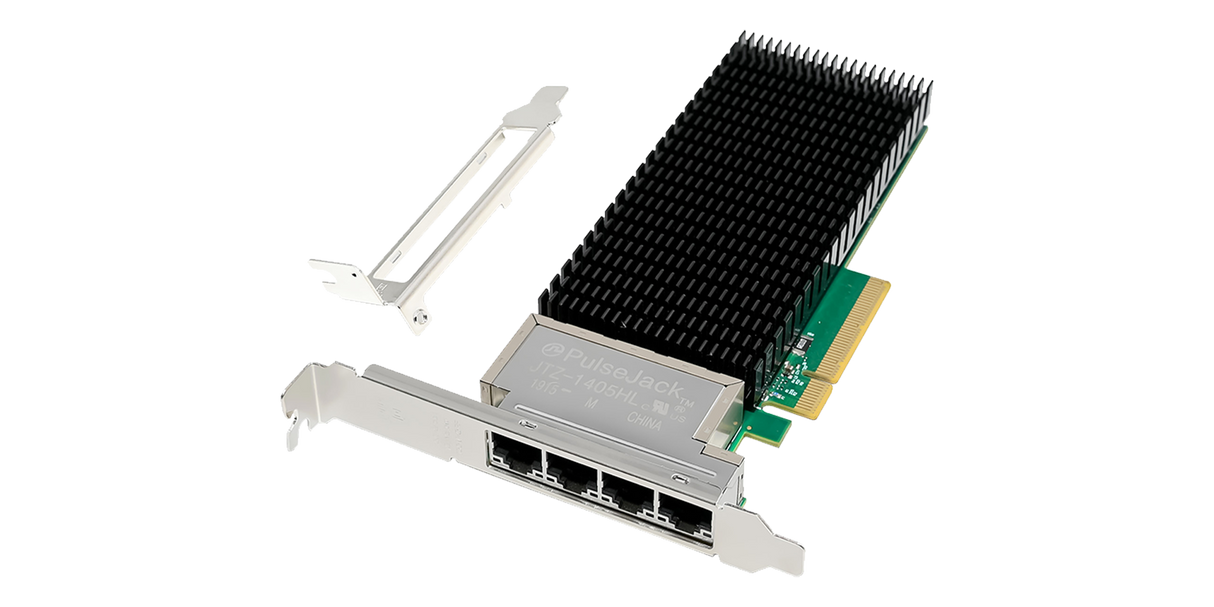

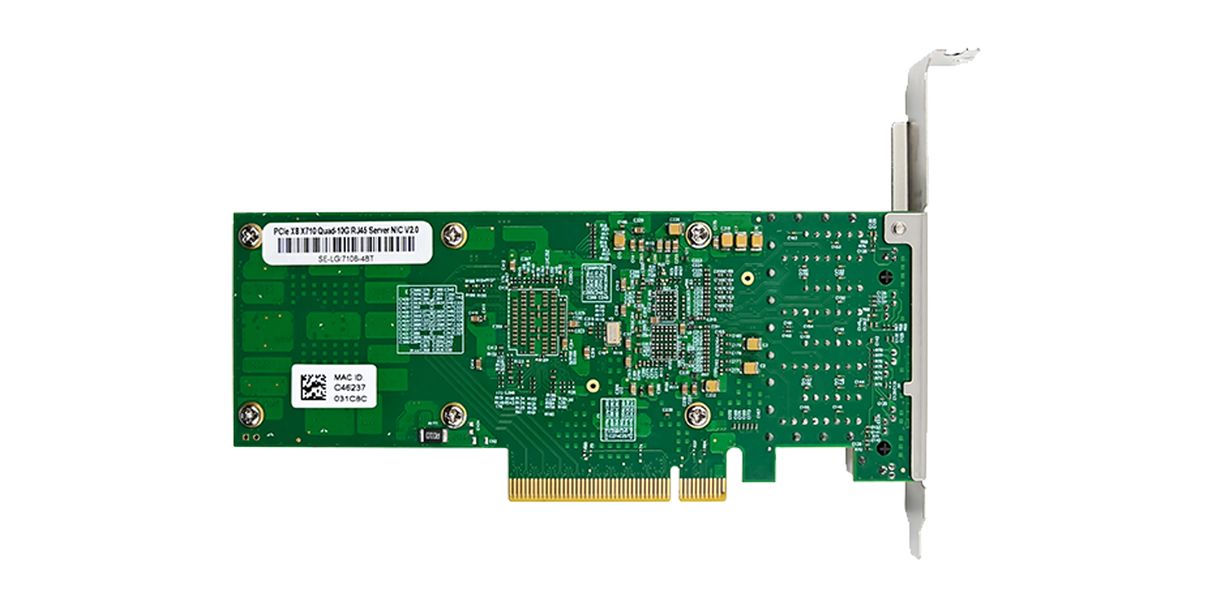

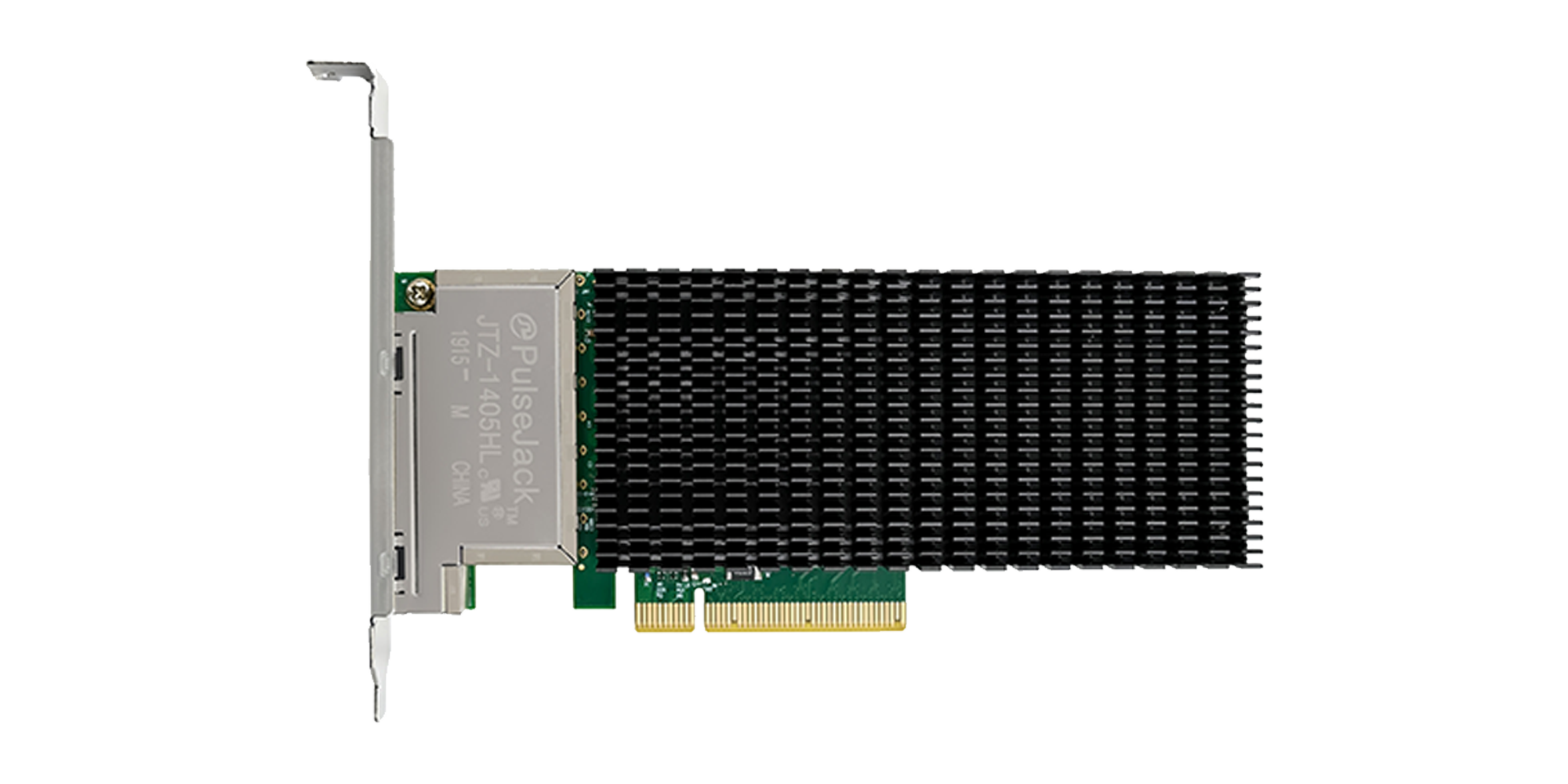

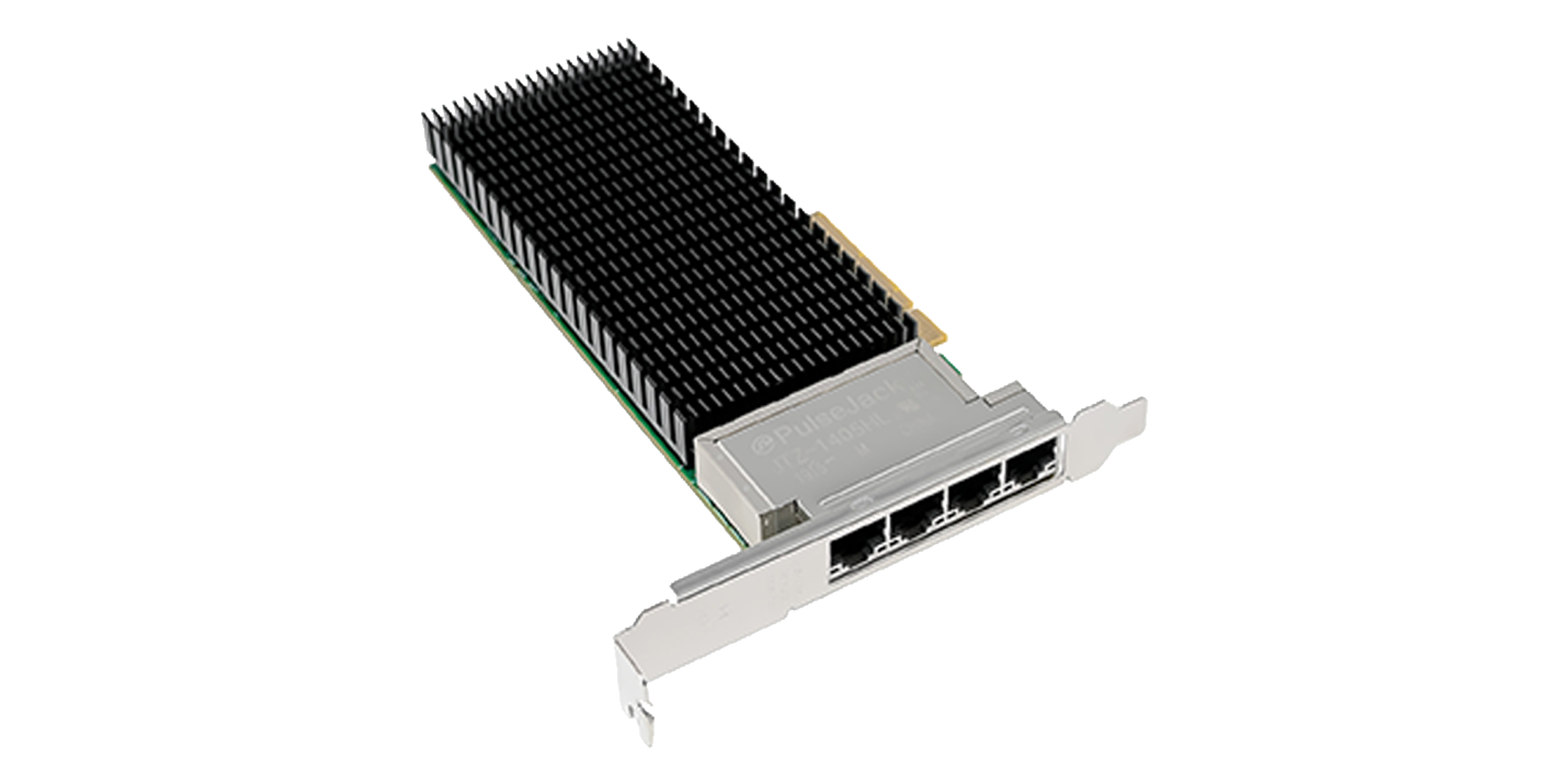

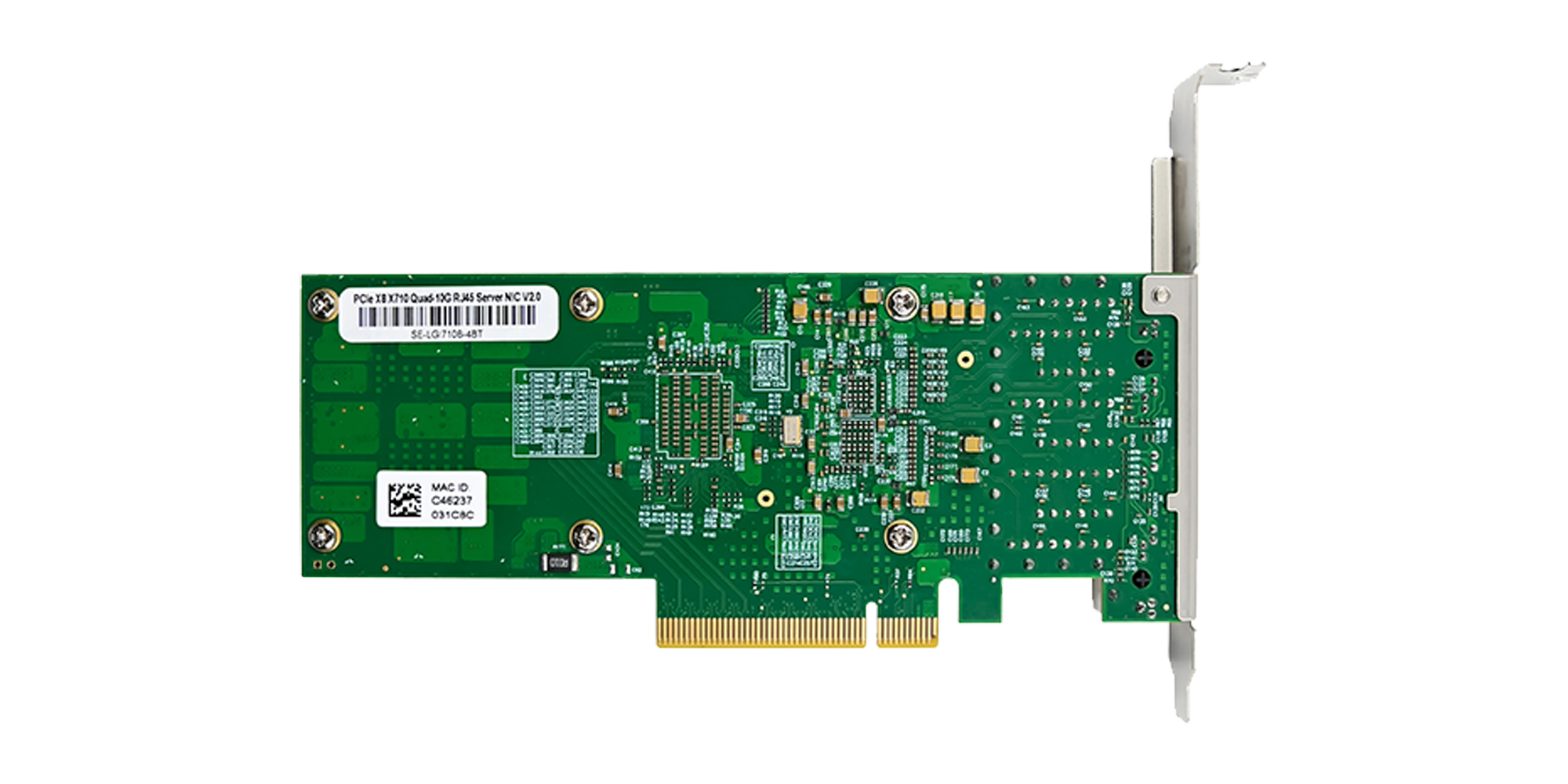

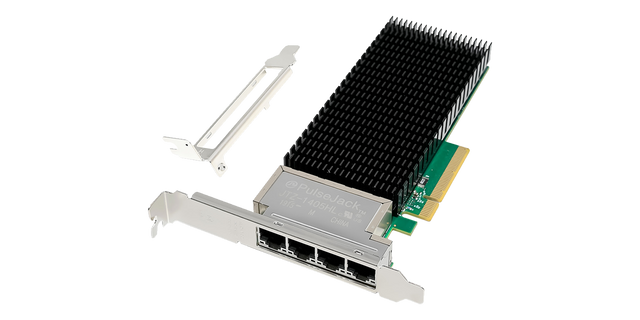

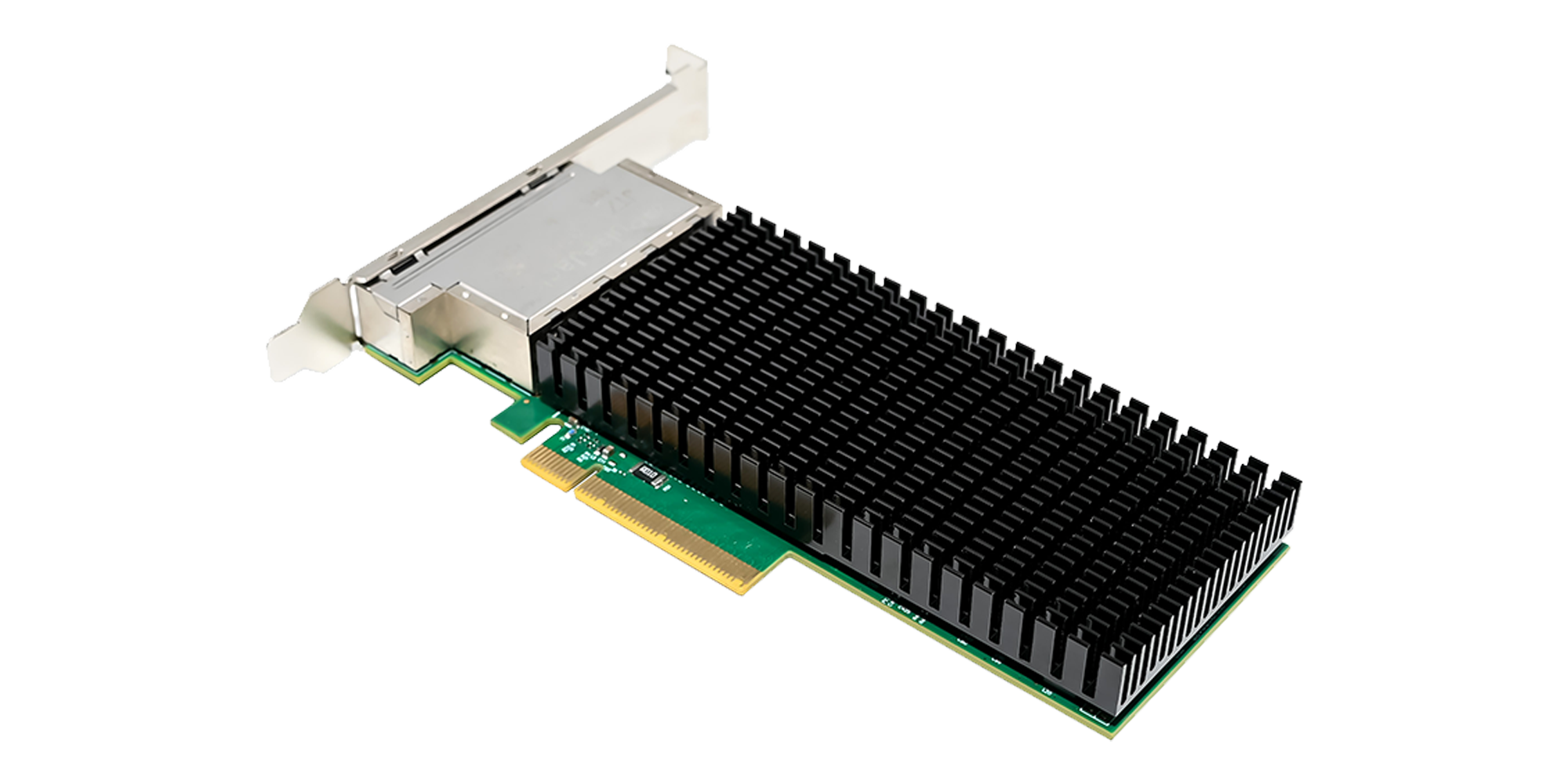

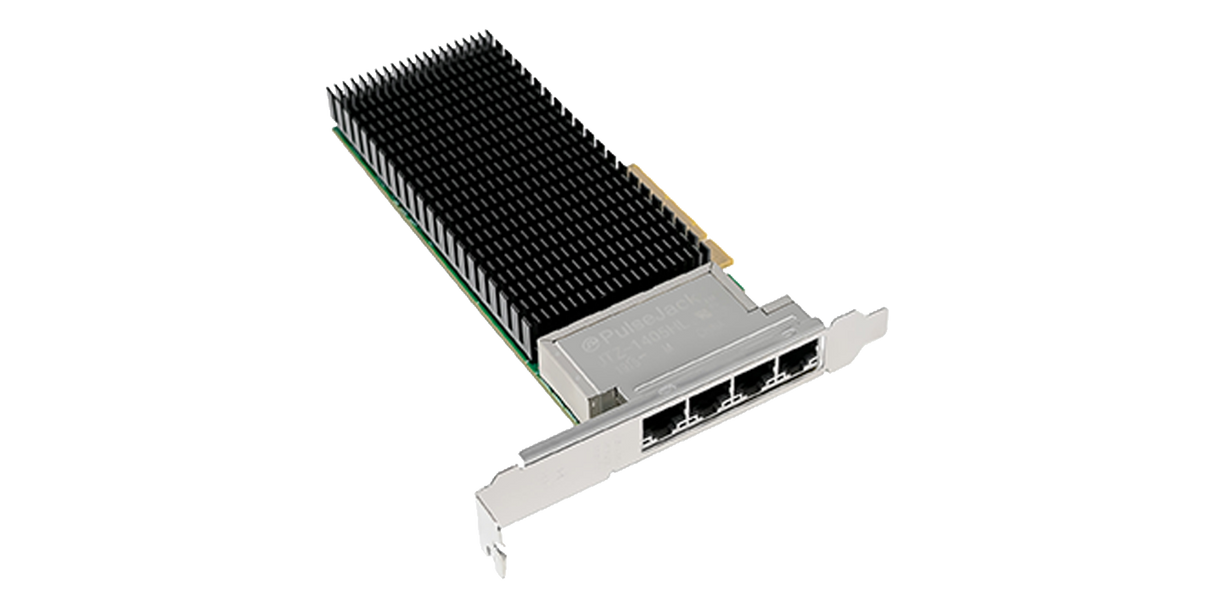

Intel X710 based NIC PCIe 3.0 x8 Quad Port 10GbE RJ45

Intel X710 based NIC PCIe 3.0 x8 Quad Port 10GbE RJ45

PCIe x8 Intel X710 Quad-Port 10G Converged adaptor 710 series implements a PCIe v3.0 x8 host interface, which operates at up to 8GT/S or 64Gb/s. It provides complete support for four 10Gb/s ports and performs all functions required for transmission and reception as specified in IEEE standards. By providing unmatched features for server and network virtualization, small packet performance, and low power, it allows data centres to be flexible, scalable, and resilient.

System Requirements

• FreeBSD, Linux, VMWare ESXi, Win-server2012 R2/ Win-server2008 R2
• One available PCI Express x8/x16 slot

Specification

• PCI-Express host interface specification v3.0 x8 and higher
• Supports the PCI Bus Power Management specification and section 5 of the PCI Express Base Specification
• PCI-Express lanes: x8
• Support quad 10Gbase-T/1000Mbase-T/100Mbase-T networks
• Network Virtualization offloads including VXLAN, NVGRE, Geneve and Network Service Headers
• Intel® Ethernet Flow director for hardware-based application traffic steering
• Intelligent offloads to enable high performance with Intel® Xeon processor-based servers
• Packet checksum offloads: Calculates IP, UDP, TCP, and Stream transmission Protocol checksums for insertion into transmitted packets and for integrity checking on received packets
• Includes support for UDP and TCP checksums in both IPv4 and IPv6 data grams
• I/O virtualization innovations for maximum performance in a virtualized server
• Support for optional End-to-End CRC generation and checking
• Supports up to 1024 LAN queue sets (768 typically available)
• Supports up to 384 VSIs with average of two TCs allocated per VSI
• Supports up to 16VEB/VEPA switching components
• IEEE802.3x flow control support
• IEEE802.3Q VLAN support with VLAN tag insertion, with stripping and packet filtering for up to 4096 VLAN tags
• Jumbo Frame support 9728 bytes
• Chipset: Intel XL710-BM1&X557
