Download Datasheet
Product Details

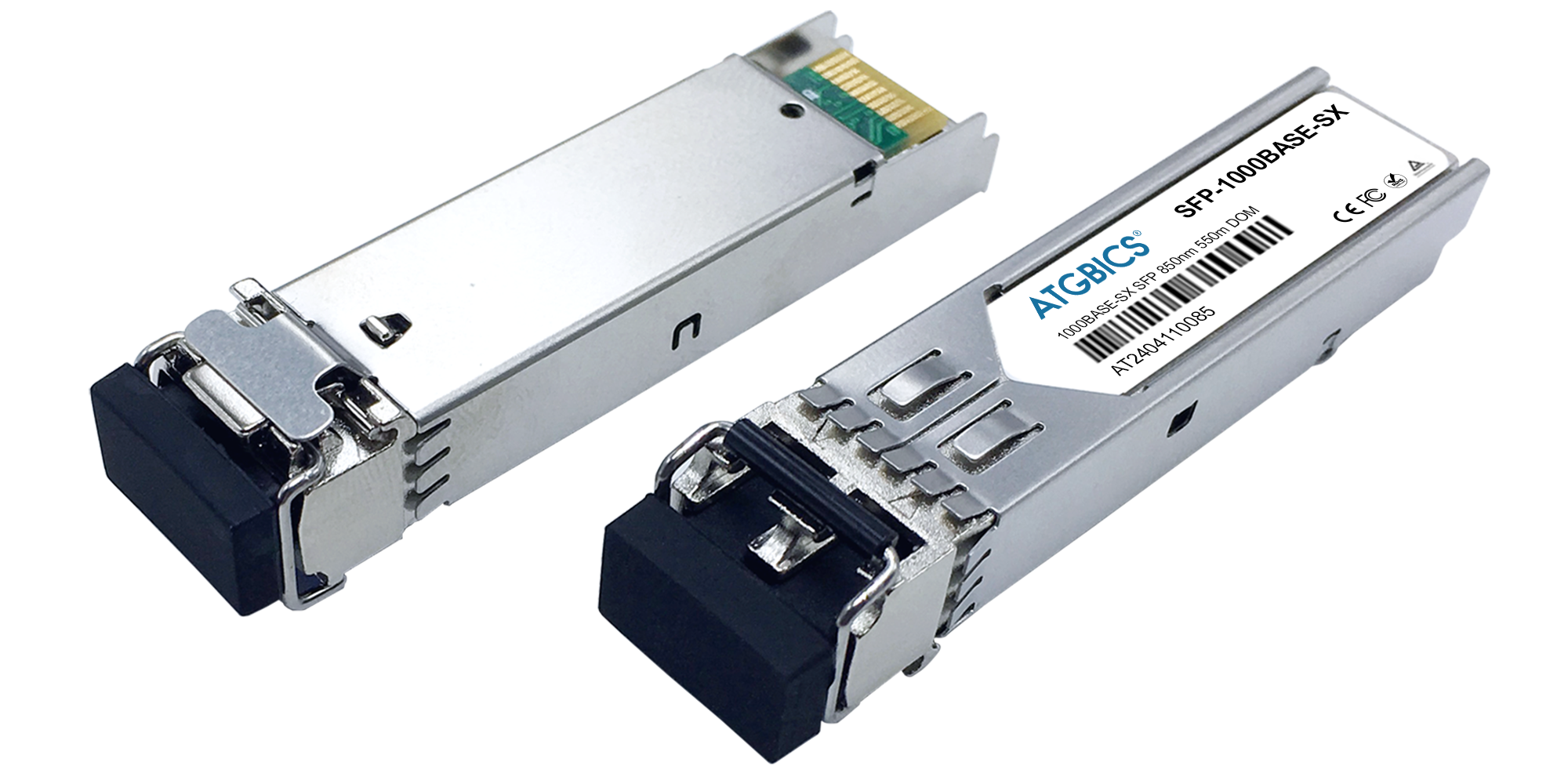

ATGBICS OGSM01880 1000Base-SX supports a distance of up to 550m over multi-mode fibre (MMF) using a wavelength of 850nm via an LC connector. This product is suitable for rugged environments and can operate at temperatures between -40C to +85C. Digital optical monitoring (DOM) support is also present enabling real-time monitoring of the parameters of the fibre optic transceiver. It is a hot-swappable input/output device that plugs into a Gigabit Ethernet port/slot, linking the port with the fibre-optic network. Our product meets or exceeds the specification of Huawei OGSM01880= and we proudly offer a compatibility guarantee and lifetime warranty. Our rigorously tested products record a unique traceable serial number and are fully compliant with all MSA Standards.
Product Type: Fibre Optic Transceiver, SFP 1000Base-SX, Ruggedised
Product Description: Huawei Compatible Transceiver, SFP, 1000Base-SX, 850nm, MMF, 550m, DOM, Ruggedised
Compatible OEM: Huawei
Compatible Cables: ATGBICS Fibre Patch Leads of Type OM2 LC-LC MMF Dual Fibre
Manufacturer: ATGBICS
Technical Specifications
Form Factor | SFP | Max Data Rate | 1.25Gbps |
Max Distance | 550m | Wavelength | 850nm |
Interface | LC Duplex | Cable Type |
MMF |
DOM Support | Yes | Temperature range | -40 to 85°C |
Compliance Standards | MSA Compliant, IEEE 802.3z | Warranty | Lifetime Replacement |
Dimensions | 8.5 x 13.4 x 56.5mm | Weight | 15 grams |
