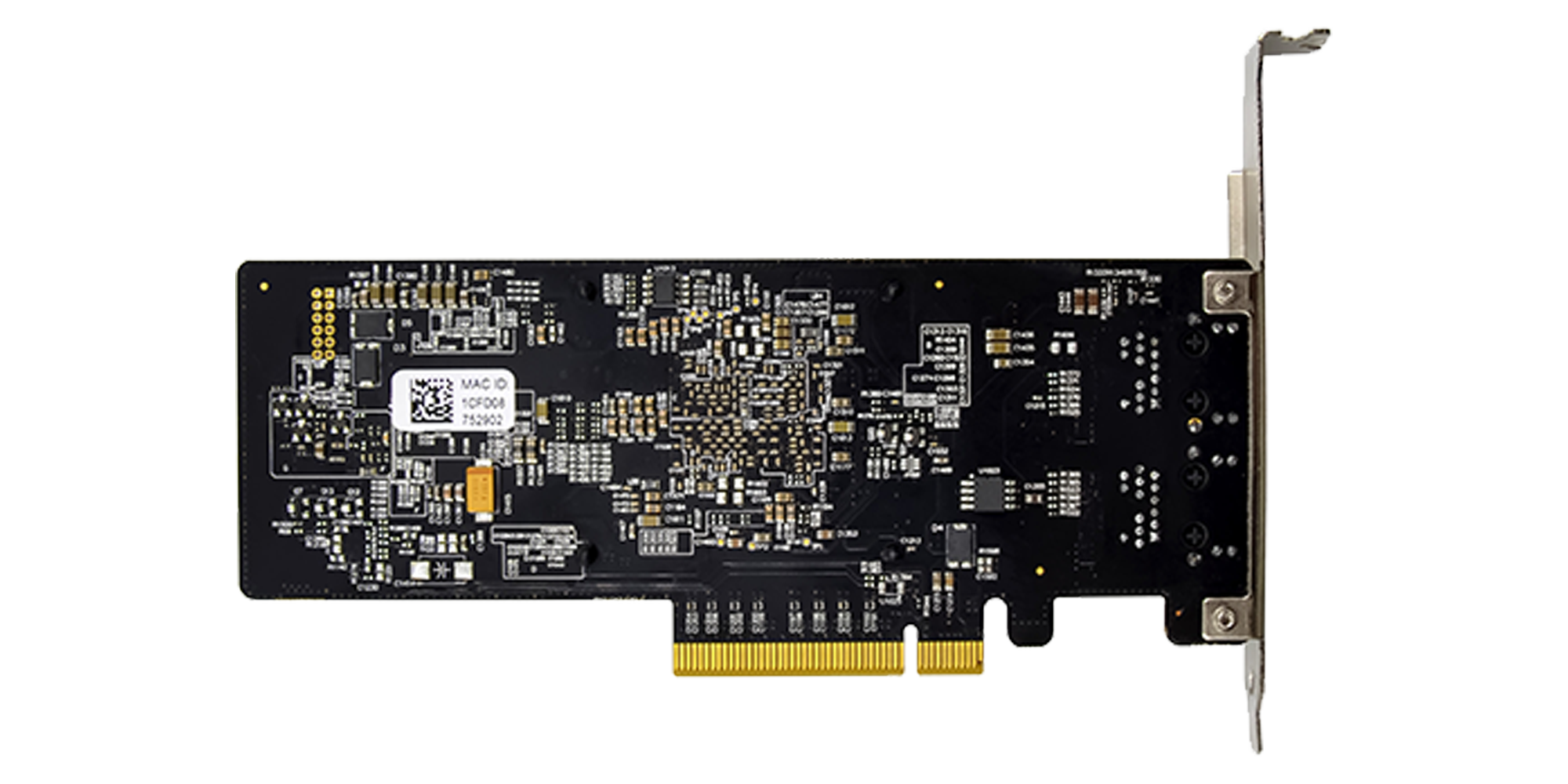

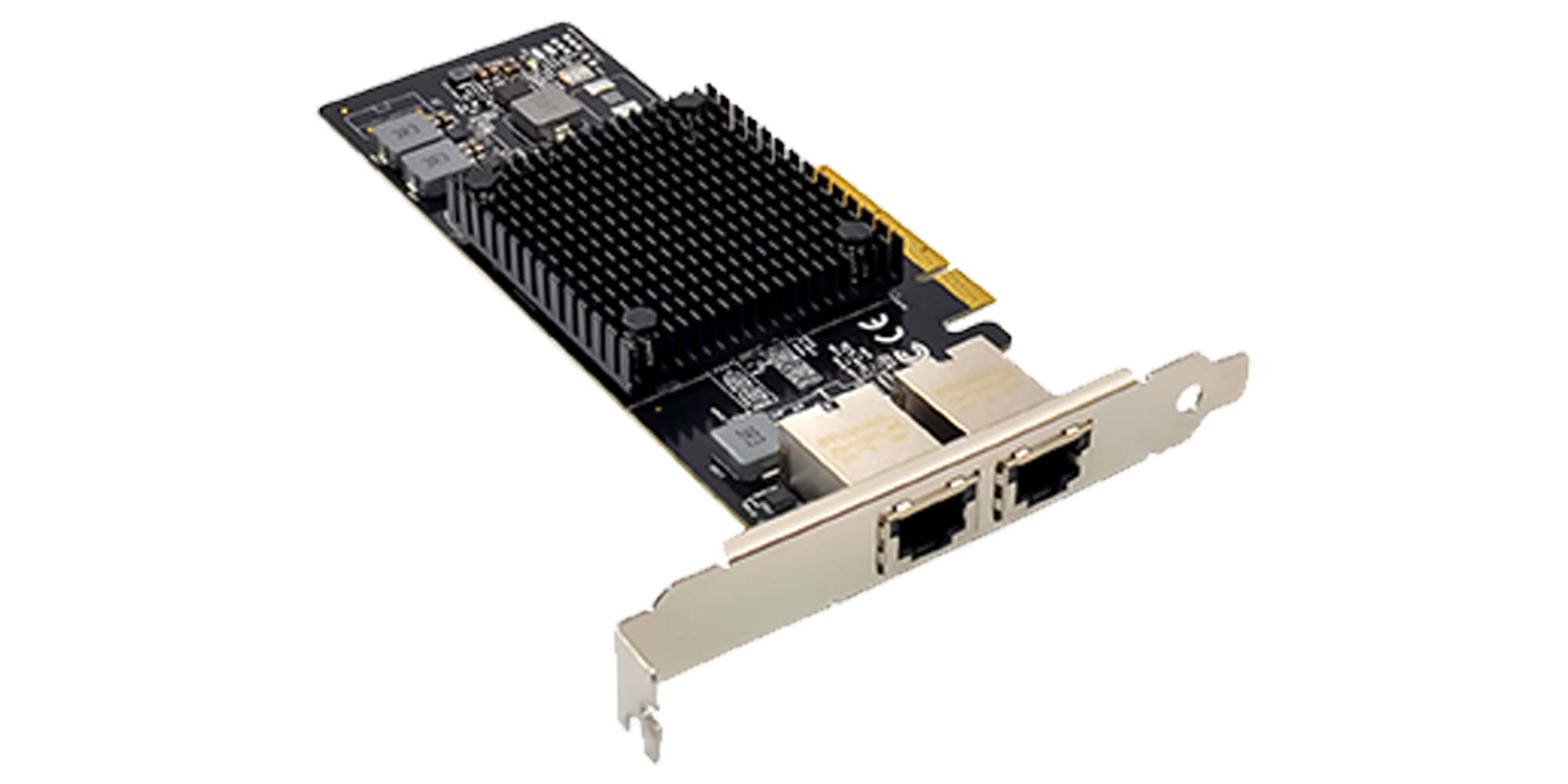

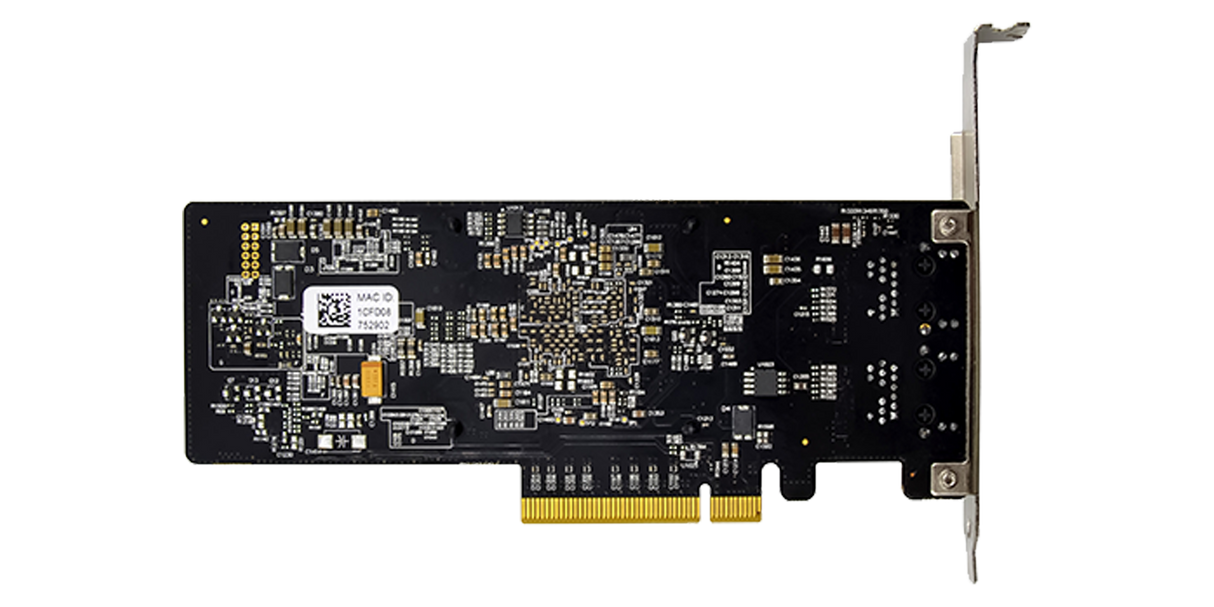

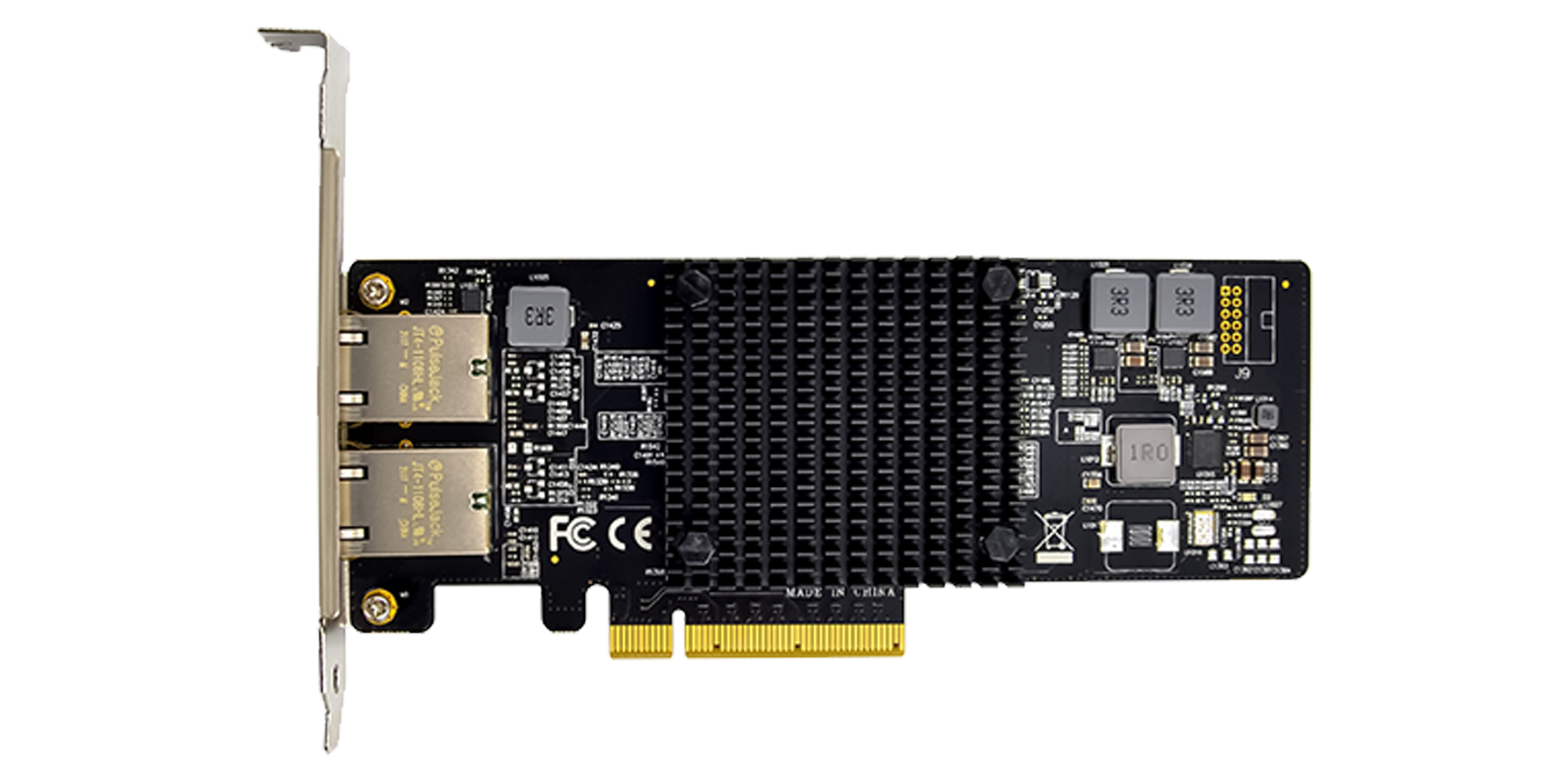

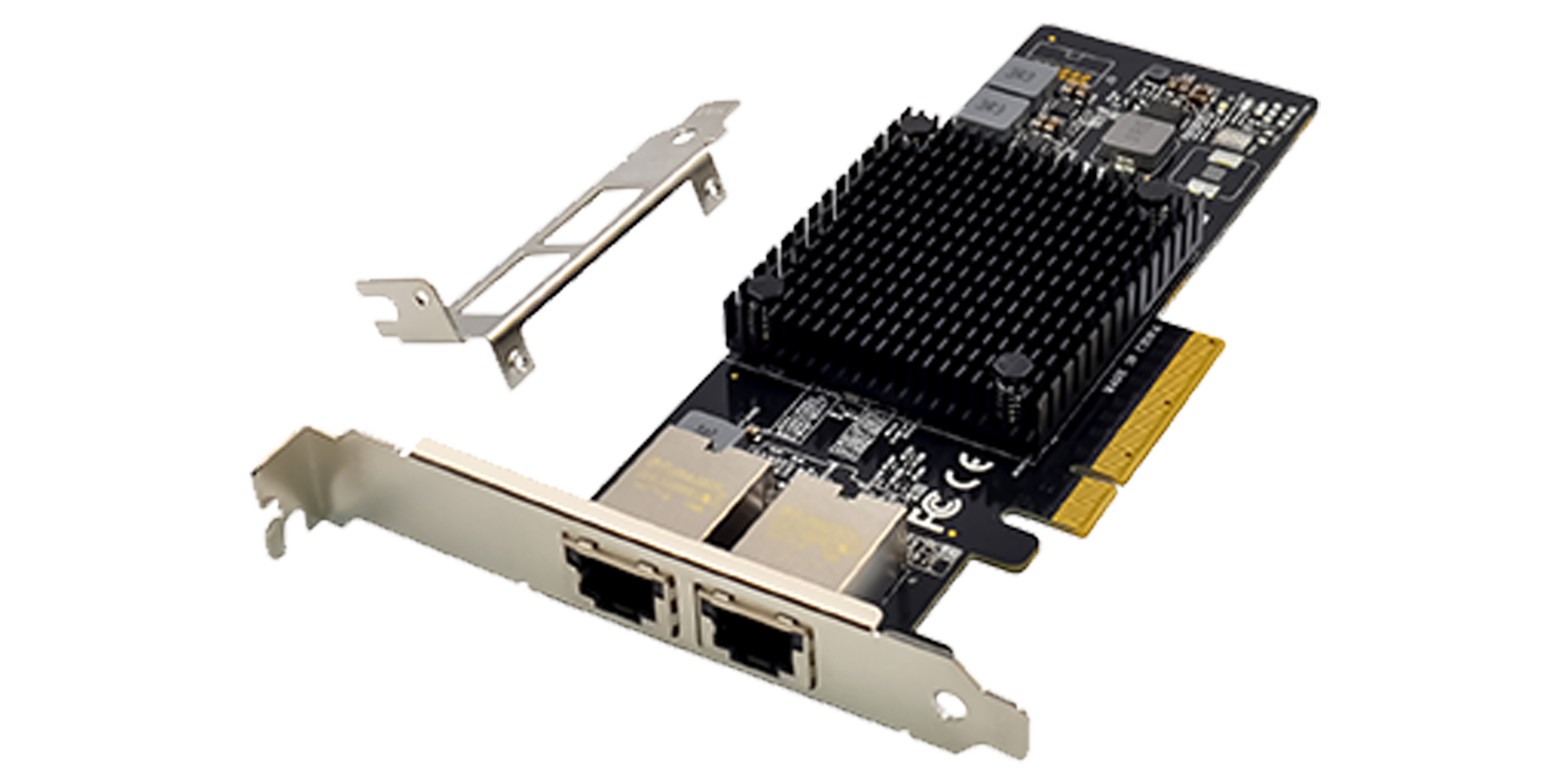

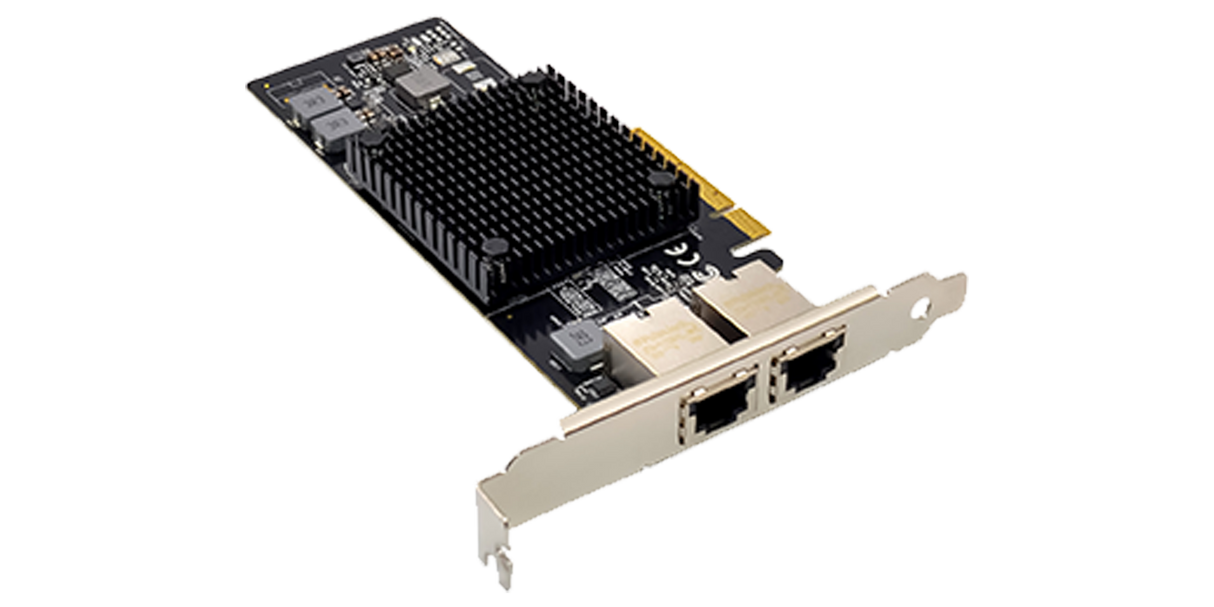

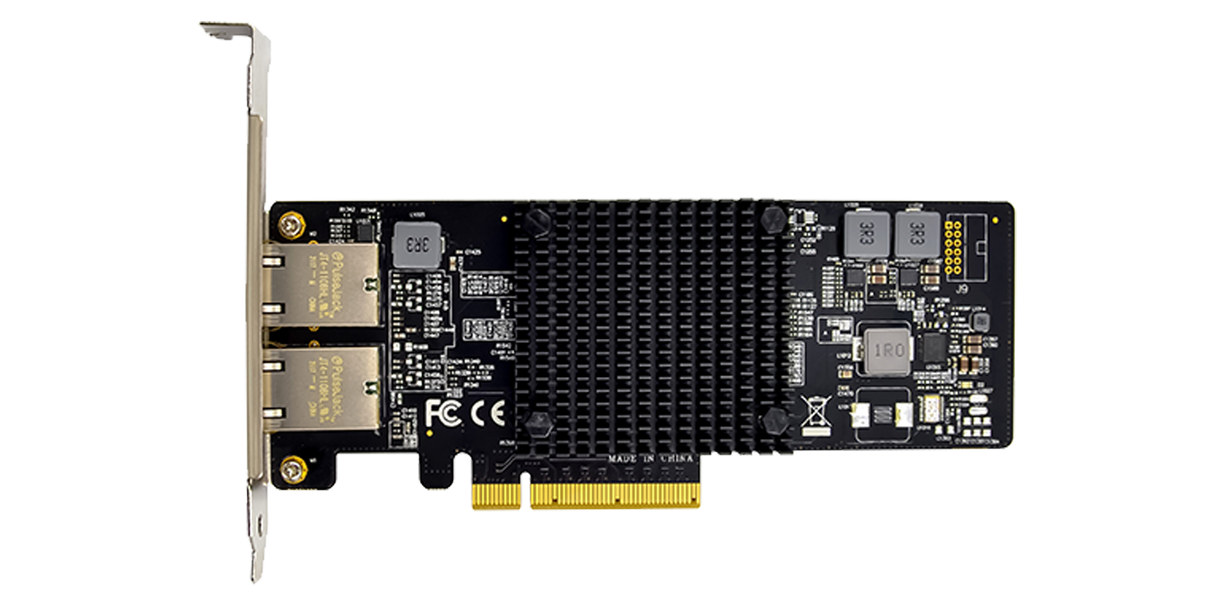

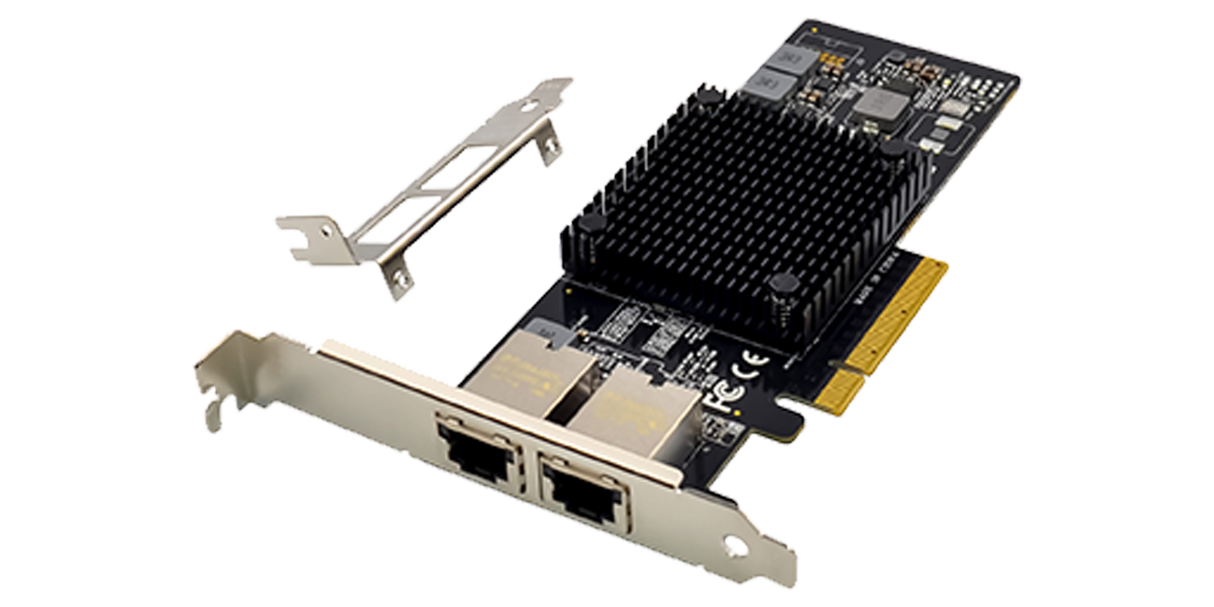

Intel X550-T2 based NIC PCIe 3.0 x8 Dual Port 10GbE RJ45
Buy through a distribution partner
Powered by
Intel X550-T2 based NIC PCIe 3.0 x8 Dual Port 10GbE RJ45
Intel X550-T2 based NIC PCIe 3.0 x8 Dual Port 10GbE RJ45
The X550 is a low-cost option for deploying 10GbE in your data center because it uses CAT6 and CAT6A cabling - standard cabling for many data centers. Auto negotiation between 1GbE, 2.5GbE, 5GbE, and 10GbE provides the necessary backwards compatibility required for a smooth transition and easy migration to 10GbE Copper cabling's flexible reach from 1 meter to 100 meters also supports Top of Rack (ToR), Middle of Row (MoR), and End of Row (EoR) network architectures.
- PCI Express* (PCIe*) v 3.0 with up to 8.0 GT/s.
- Low cost, low power, 10 GbE performance for the entire datacenter
- Intel second generation, single- and dual-port 10GBASE-T controller with integrated MAC and PHY.
- Standard CAT 6a cabling with RJ45 connectors. Supports NBASE-T* technology (2.5 and 5.0 GbE over CAT 5e)1.
- Backward compatibility with existing 1000BASE-T networks simplifies the transition to 10 GbE.
- Unified networking delivering LAN, iSCSI and FCoE in one low-cost CNA.
- Flexible I/O virtualization for port partitioning and Quality of Service (QoS) of up to 64 virtual ports.
- Reliable, proven 10 GbE technology from Intel Corporation.
System Requirements
Windows Client: Windows 11/10/8.1/8/7
Windows Sever: 2008 R2/2012/2012 R2/2016/2019/2022
Linux: RHEL7.9/8.4/8.5, SLES12SP5, SLES15SP3, Ubuntu18.04LTS/20.04LTS, FreeBSD 12.2/13
Specification
- PCI-Express host interface specification v3.0
- Complies with PCI Bus Power Management Interface Specification Rev1.2
- PCI-Express lanes: x 8
- Complies with dual port 10GbE RJ45 copper port
- Operate Speeds: 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s, 100Mb/s
- 10GBASE-T as per the IEEE 802.3an standard
- 1000BASE-T and 100BASE-TX as per the IEEE Standard 802.3-2012
- NBASE-T as per the IEEE P802.3bz/D1.1 Draft Standard for Ethernet Amendment
- Half duplex at 10/100Mbp operation and full duplex operation at all supported speeds
- Layer 2 functions: IEEE 802.3x Flow Control - IEEE 802.1q VLAN
- Supports Receive-side scaling (RSS)
- Supports IPv 4, IPv 6 protocols
- Supports Jumbo Frames up to 15.5K
- Supports UDP.TCP and IP Checksum offloading
- 128 transmit queues
- Statistics for management and RMON
- Support for 64 virtual machines per port (64VMs x2 queues)
- Support for Data Center Bridging(DCB) (802.1Qaz, 802.1Qbb, 802.1p)
- Interrupt throttling control to limit maximum interrupt rate and improve CPU usage
-
Connector Type
-
Data Rate
-
Media
-
Storage Temperature
-
Bracket Height
-
Bus Type
-
Bus Width
-
Chipset
-
Protocol
-
Link Rate
-
Number of Ports
-
Compatible OEM
-
Operating Temperature Range
-
Safety & Environmental Standards
-
Warranty
-
Dimensions
-
ECCN
