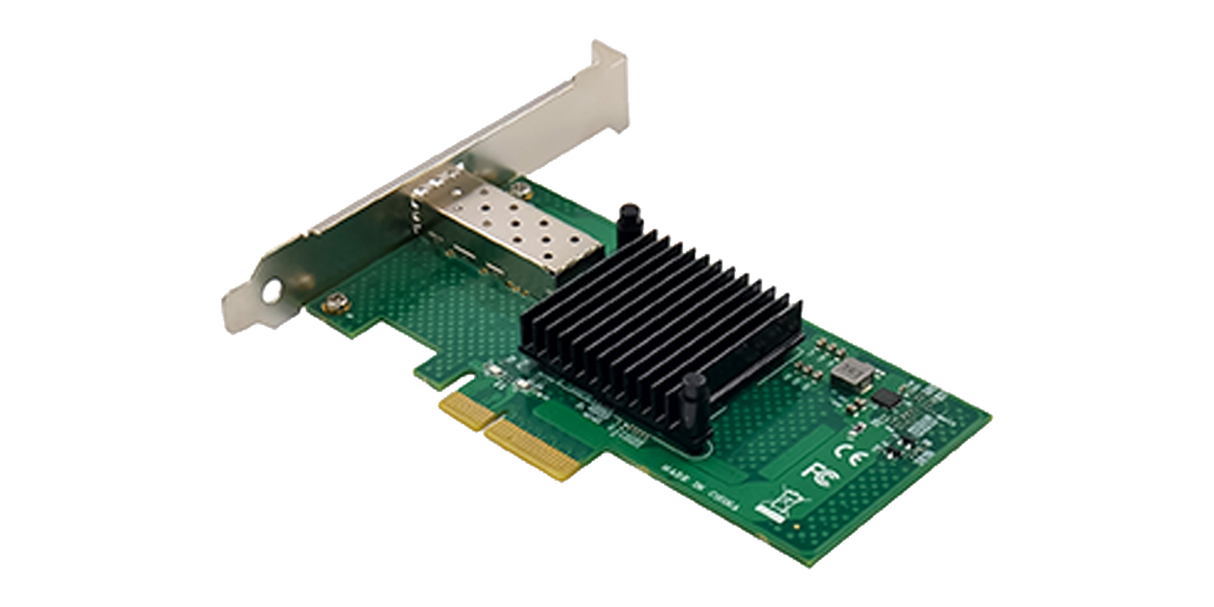

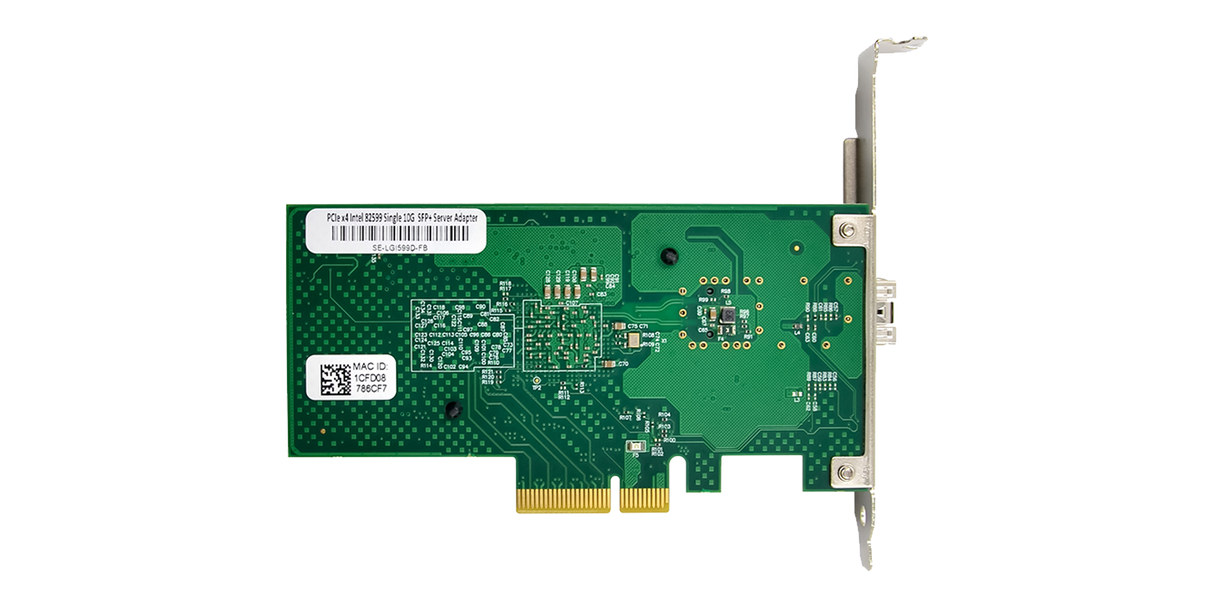

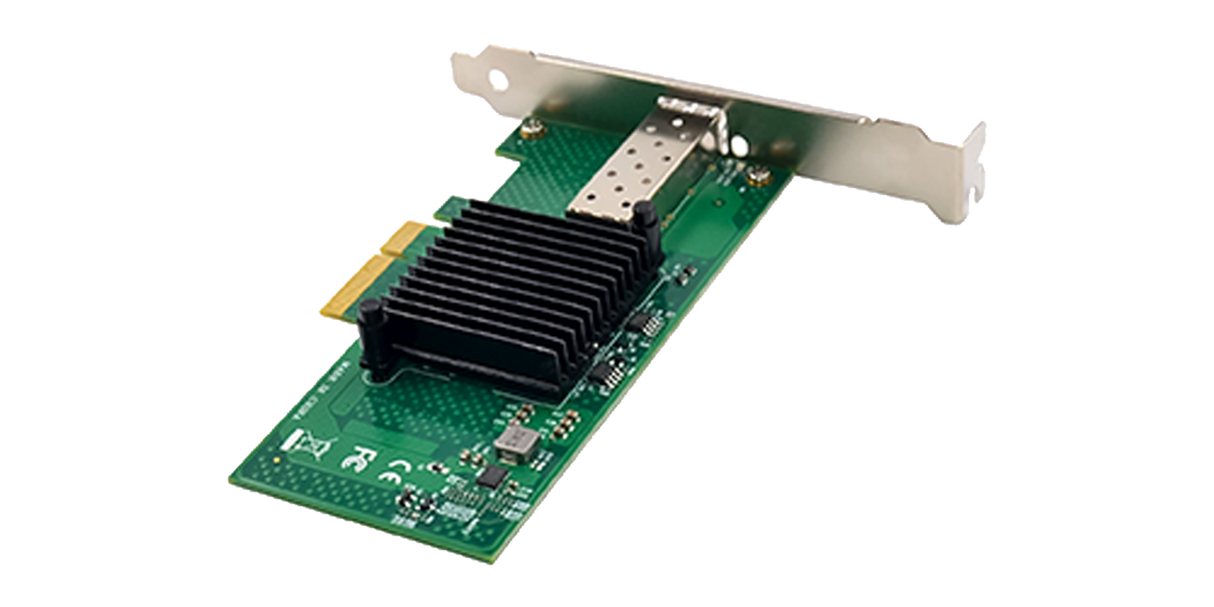

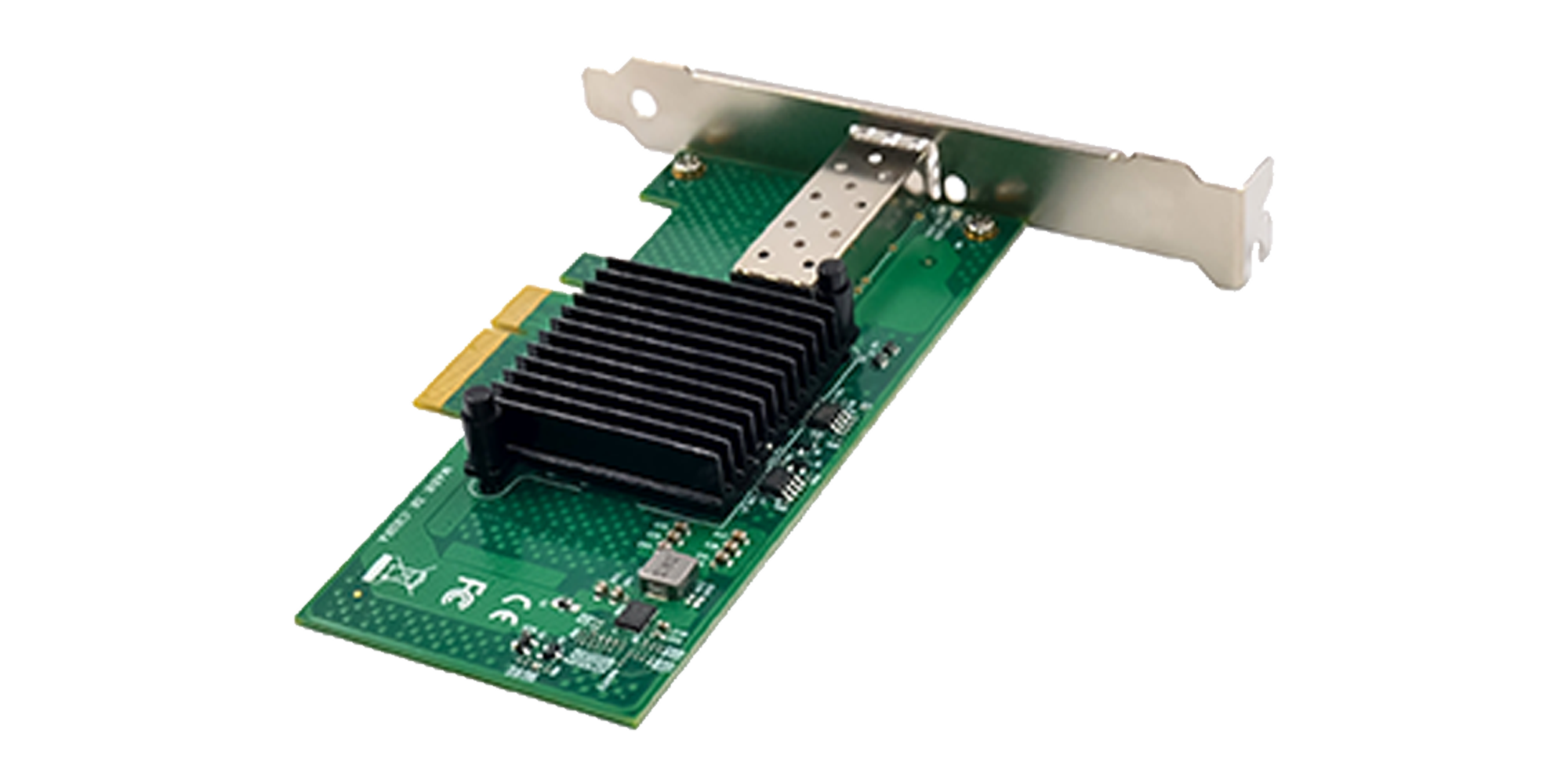

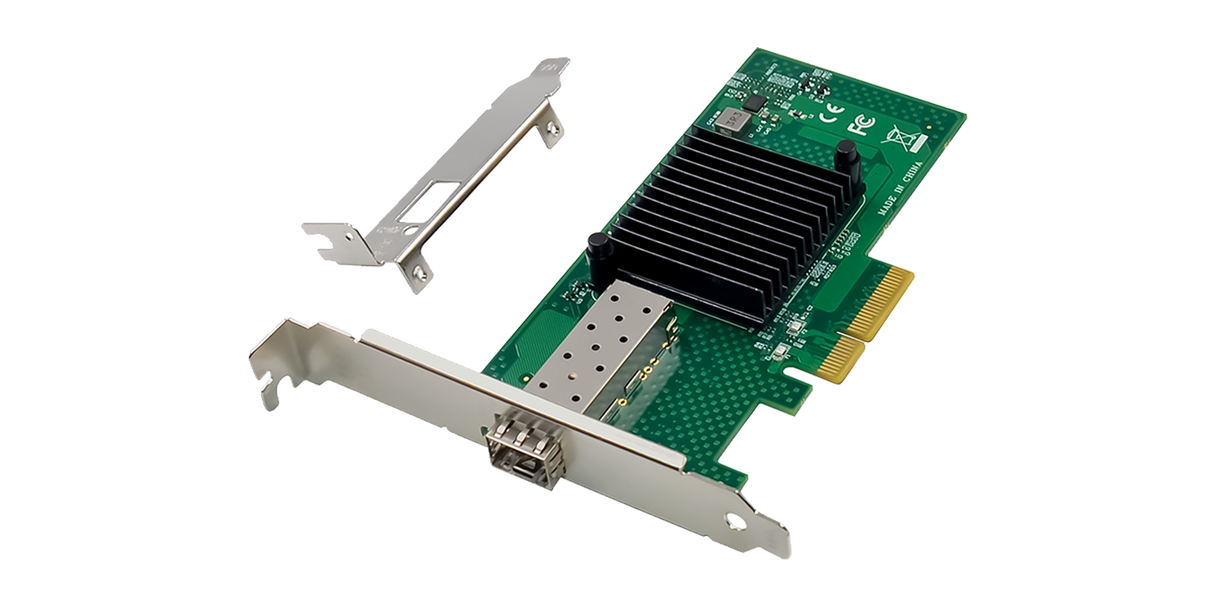

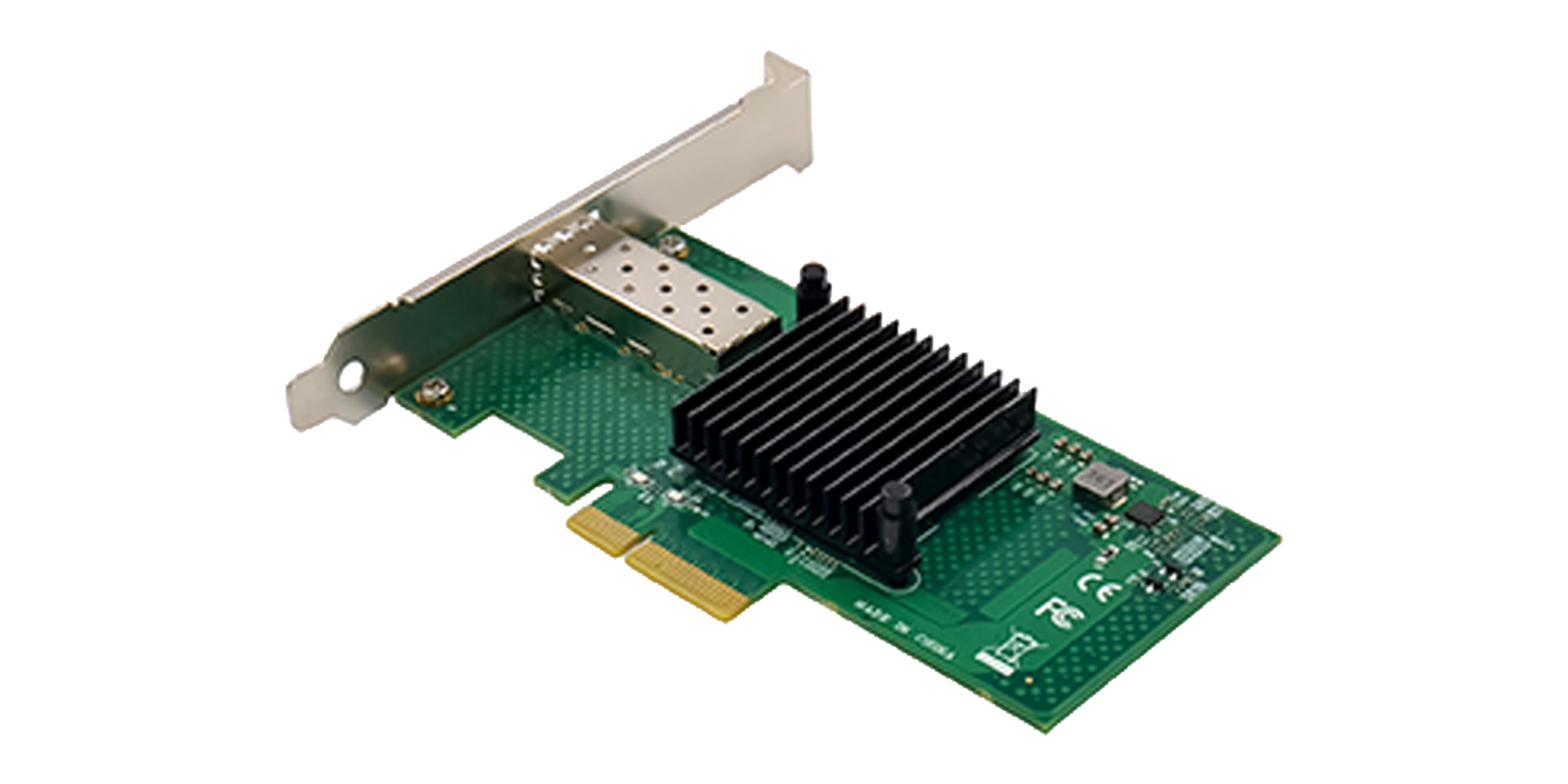

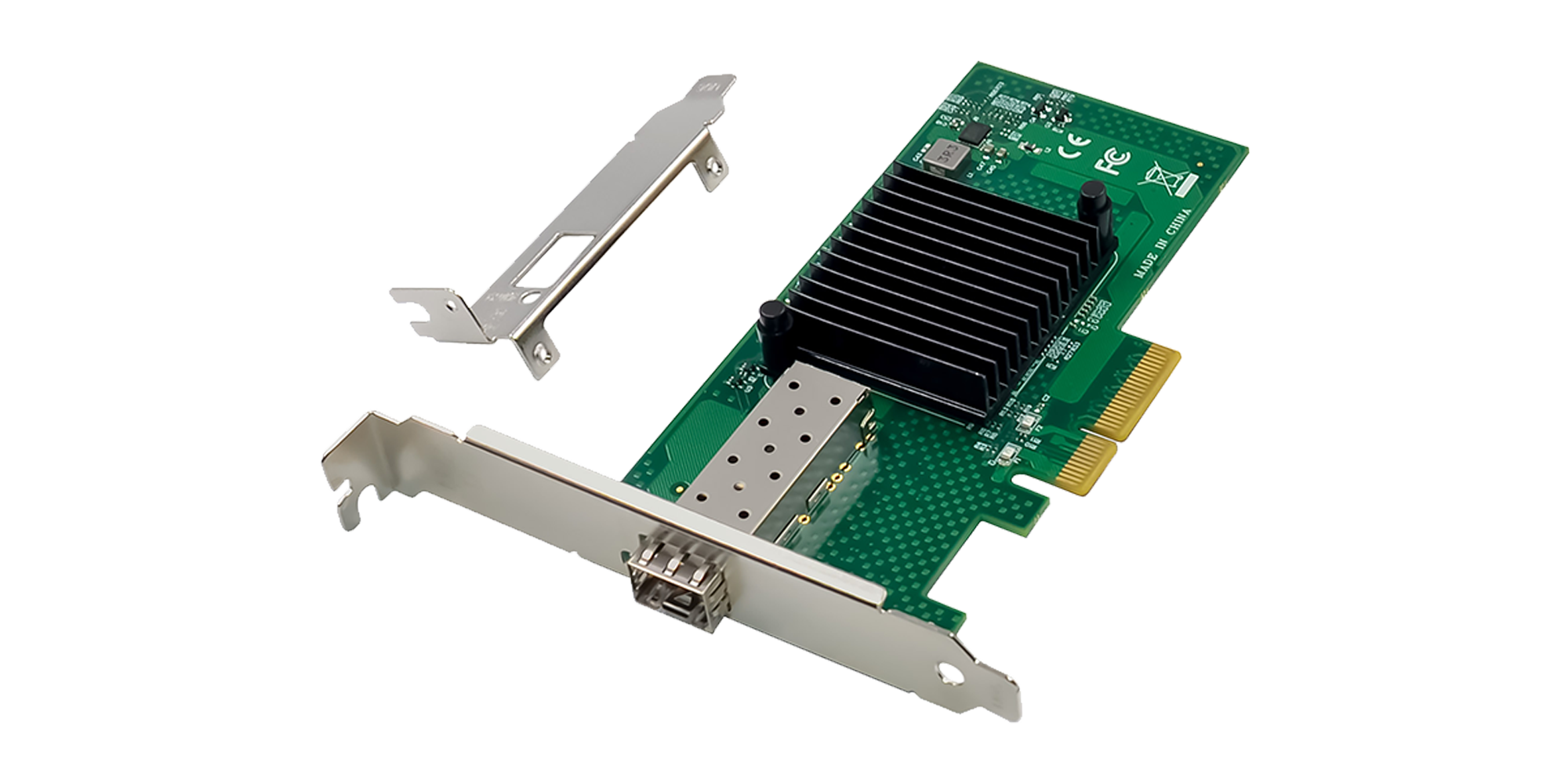

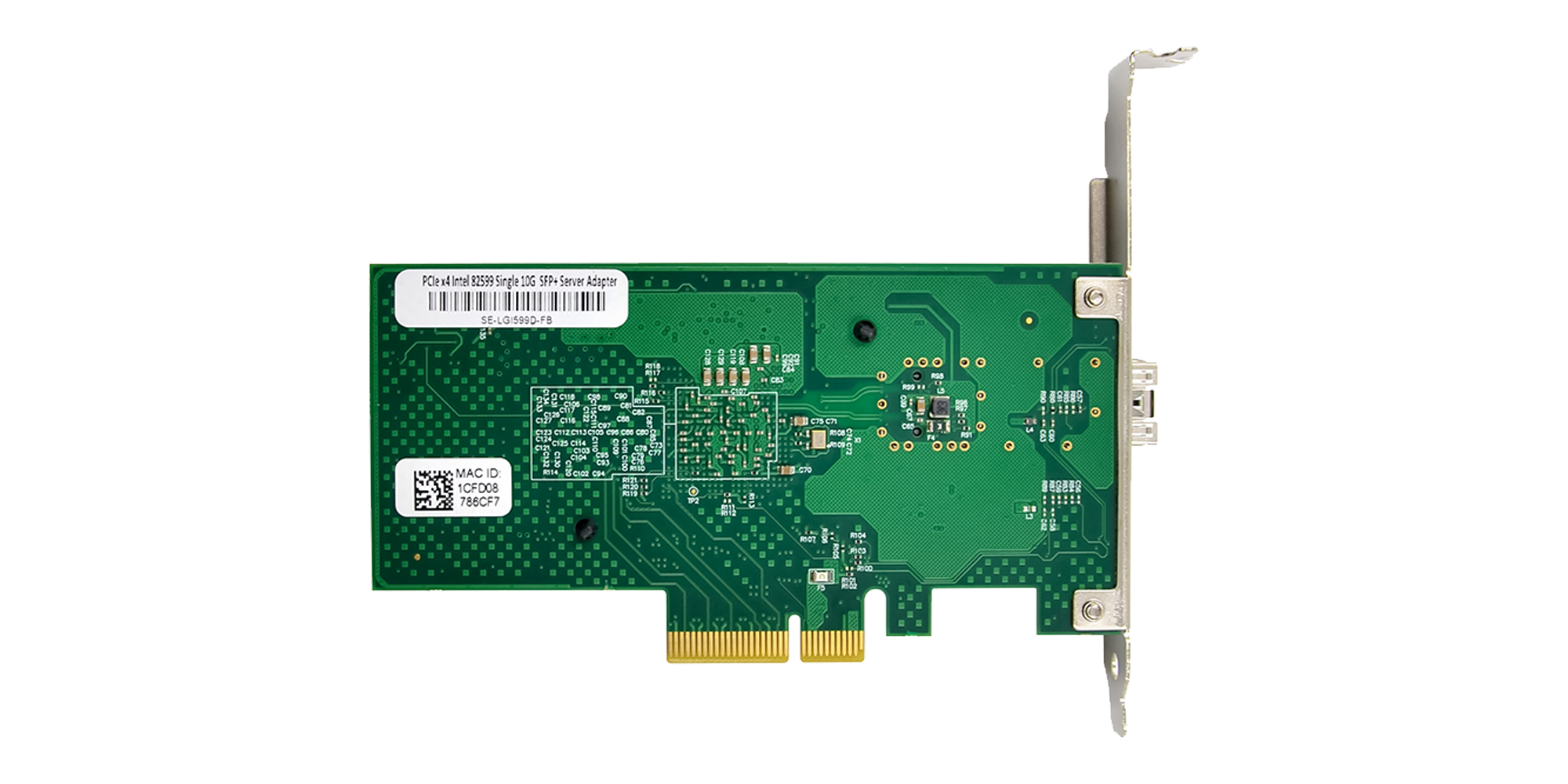

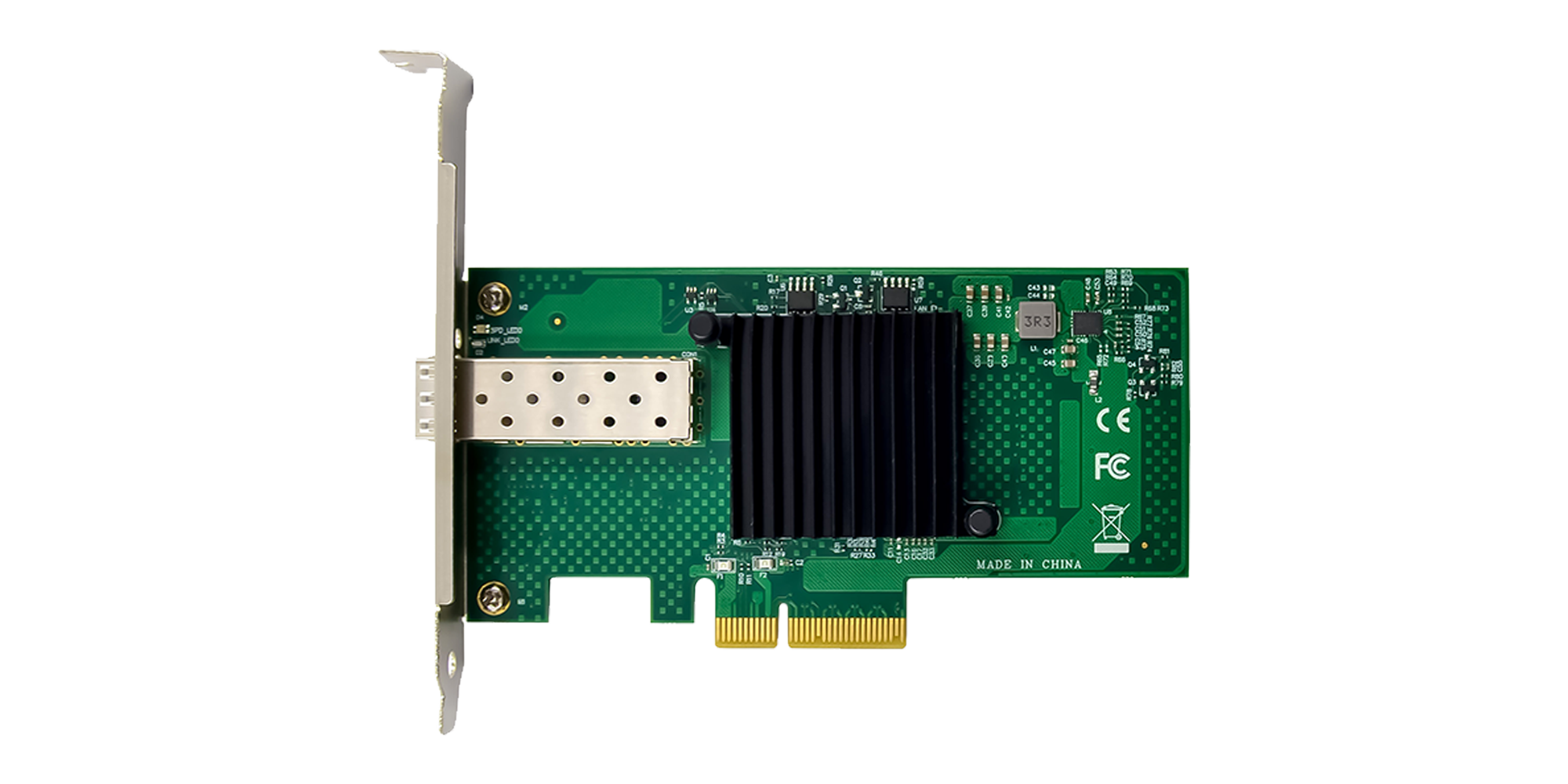

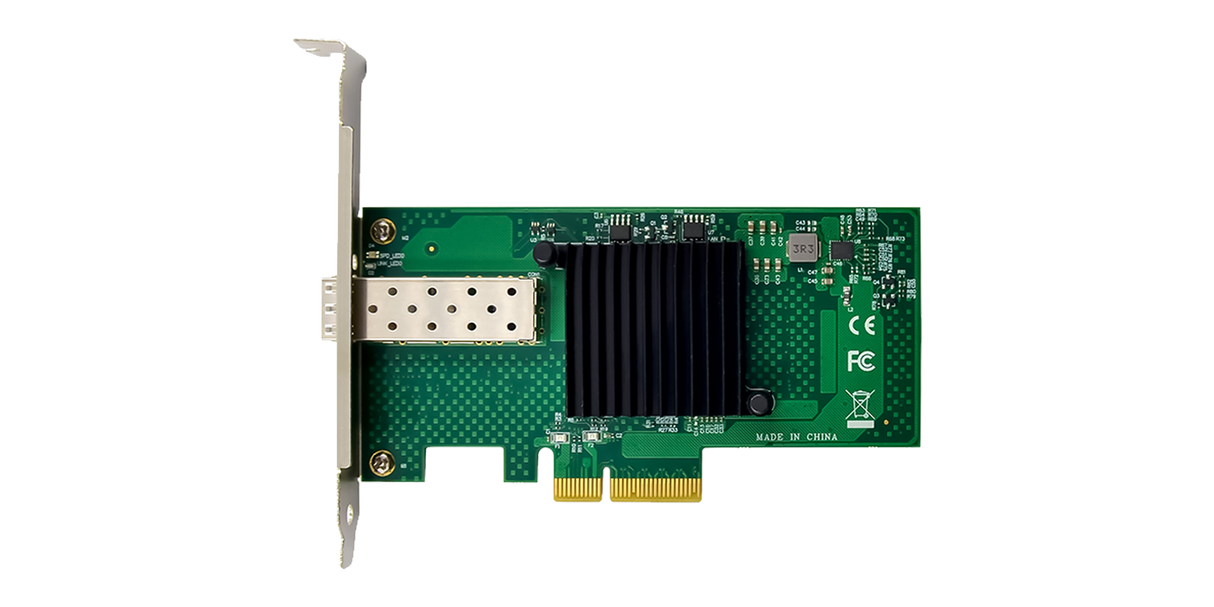

Intel X520-DA1 based NIC PCIe 2.0 x4 Single Port 10GbE Open SFP+

Intel X520-DA1 based NIC PCIe 2.0 x4 Single Port 10GbE Open SFP+

PCI Express x4 X520DA1 Network adapter adopts the Intel third-generation WMB network controller Intel JL82599EN. By providing unparalleled features of virtualization, flexible features of LAN and SAN networks, and proven reliable performance, it meets the requirements of modern data centres. It has a single 10 Gigabit SFP+ port which can setup a long-distance link with a file server or a remote workstation.

• PCI Express* 2.0, Single port 10 Gigabit Ethernet controller with Intel Xeon processor 500 series servers deliver the performance that demanding applications require
• Industry-leading product innovations for I/O virtualization that are ideal for dynamic data centres
• Unified networking support simplifies the network infrastructure by allowing LAN, SAN, and IPC traffic to share the same data centre fabric
• Energy-efficient design with integrated SFI/KR PHYs that creates new opportunities for Blades and LAN-on-motherboard (LOM) solutions
• High-volume stable architecture with broad operating system support

System Requirements

• Windows Client: Windows 10/8.1/8/7
• Windows Server: 2012/2012 R2/2016/2019
• Linux: RHEL9.1 & 8.7, SLES15 SP4, SLES12 SP5, Ubuntu*22.04 LTS/20.04 LTS, Debian*11, FreeBSD*13/12.3

Specification

• PCI-Express host interface specification v2.0 with 5.0GT/s BUS width
• PCI-Express lanes: x4
• Complies with single port 10 gigabit SFP+ Connectivity port
• Complies with IEEE802.3ae specification
• Layer 2 functions: IEEE 802.3x Flow Control - IEEE 802.1q VLAN
• Supports Receive-side scaling (RSS)
• Supports IPv 4, IPv 6 protocols
• Supports Jumbo Frames up to 15.5K
• Supports Checksum offloading
• Statistics for management and RMON
• Supports for virtual machines device queues
• Interrupt throttling control to limit maximum interrupt rate and improve CPU usage
