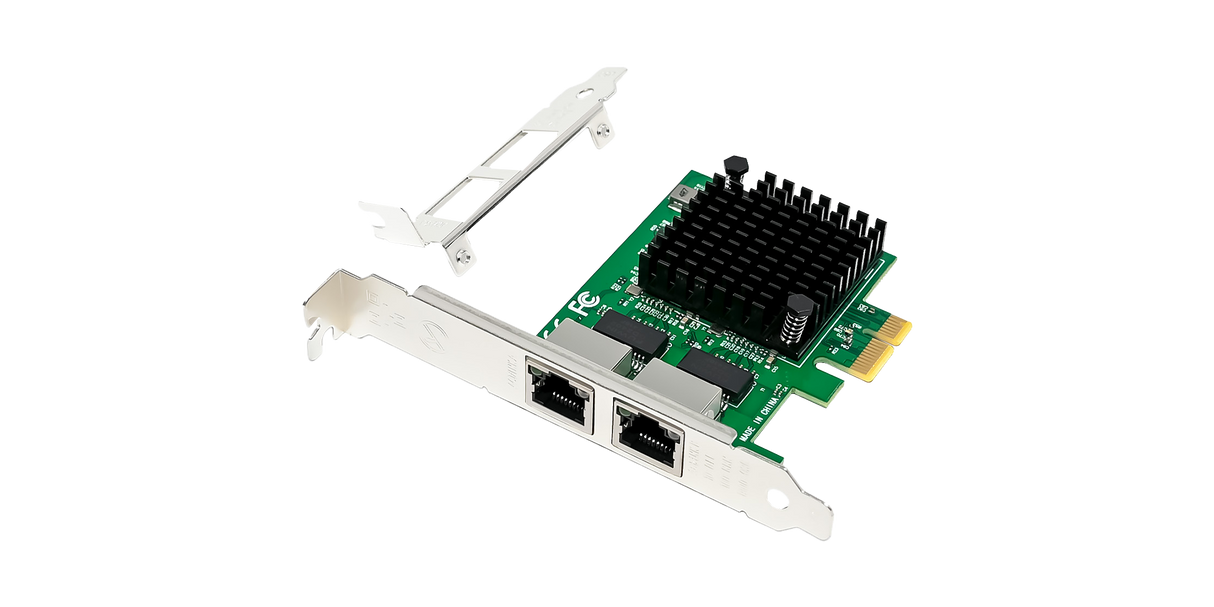

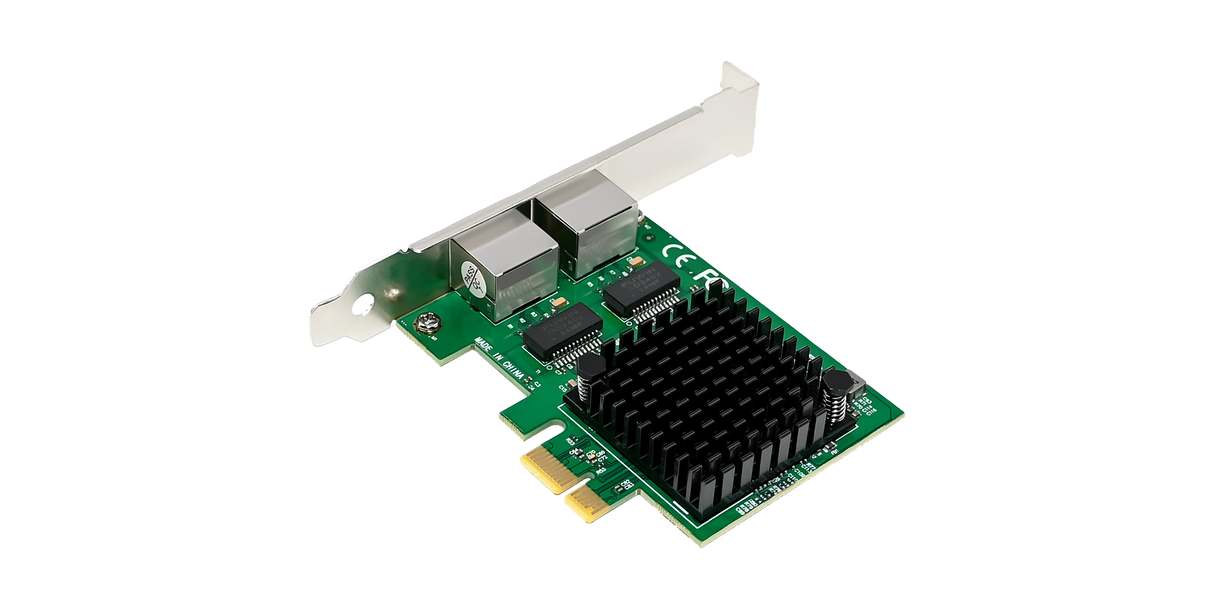

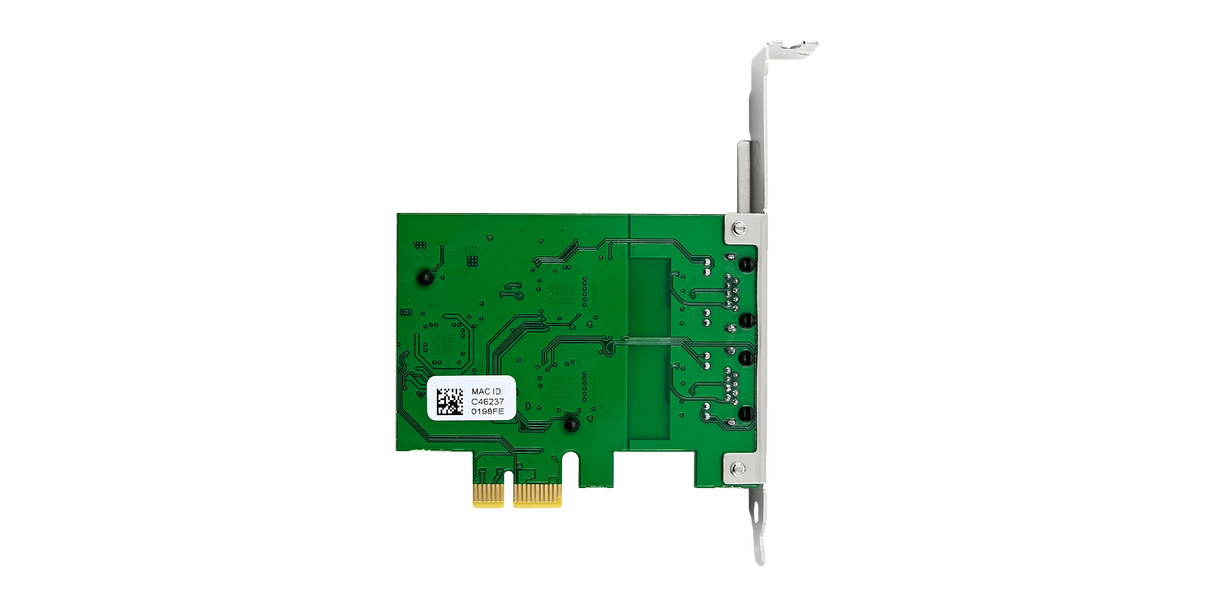

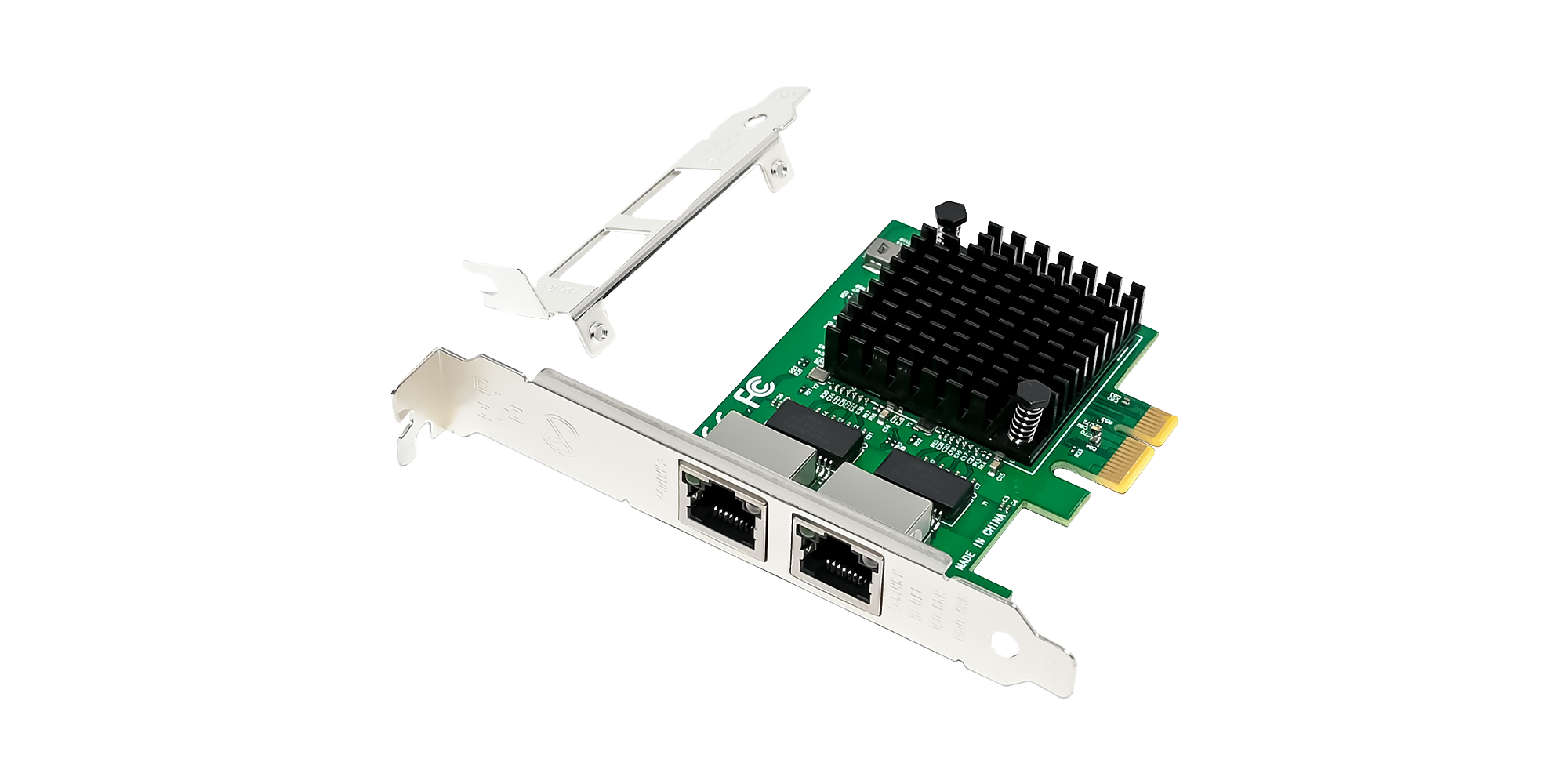

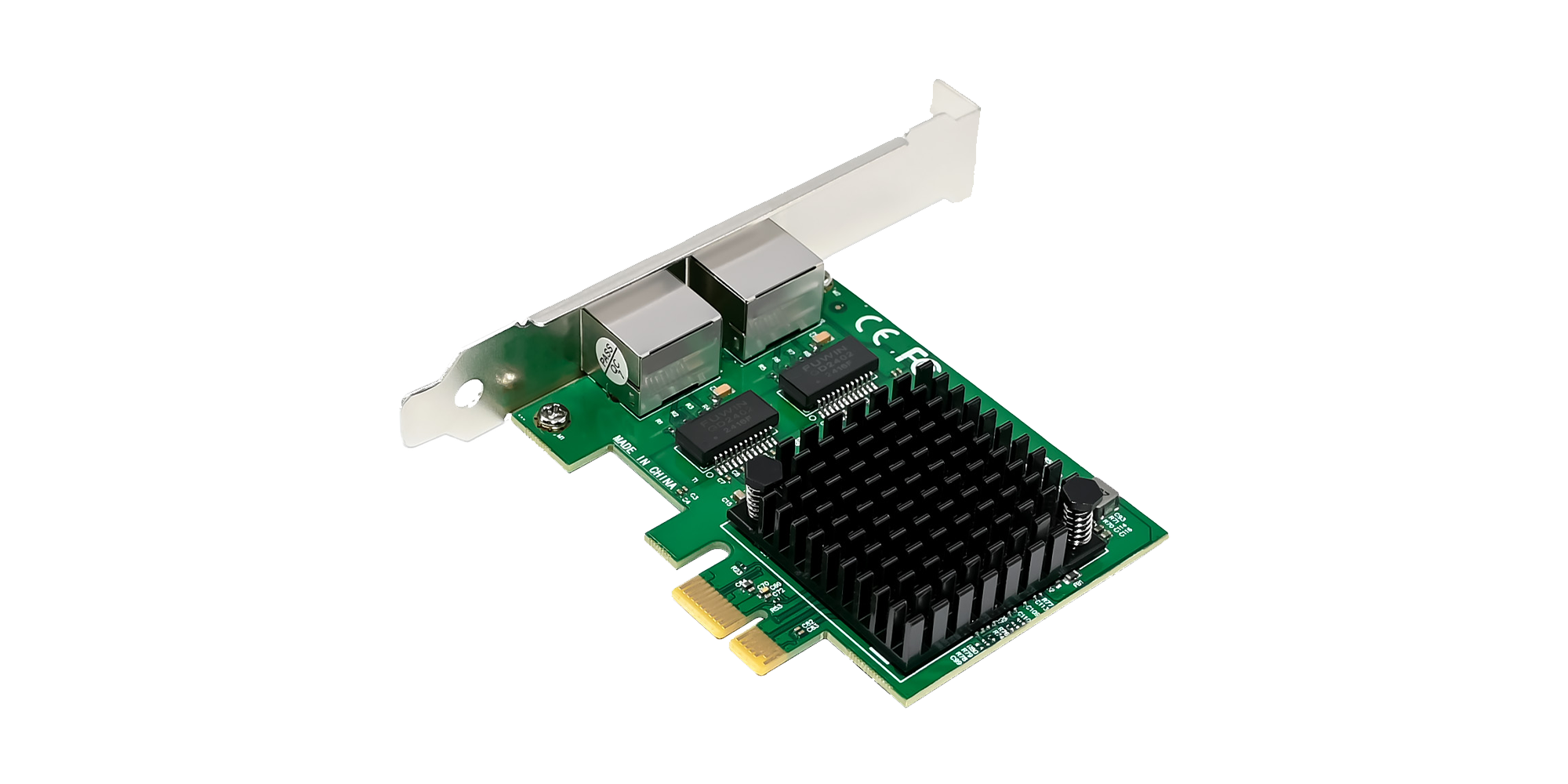

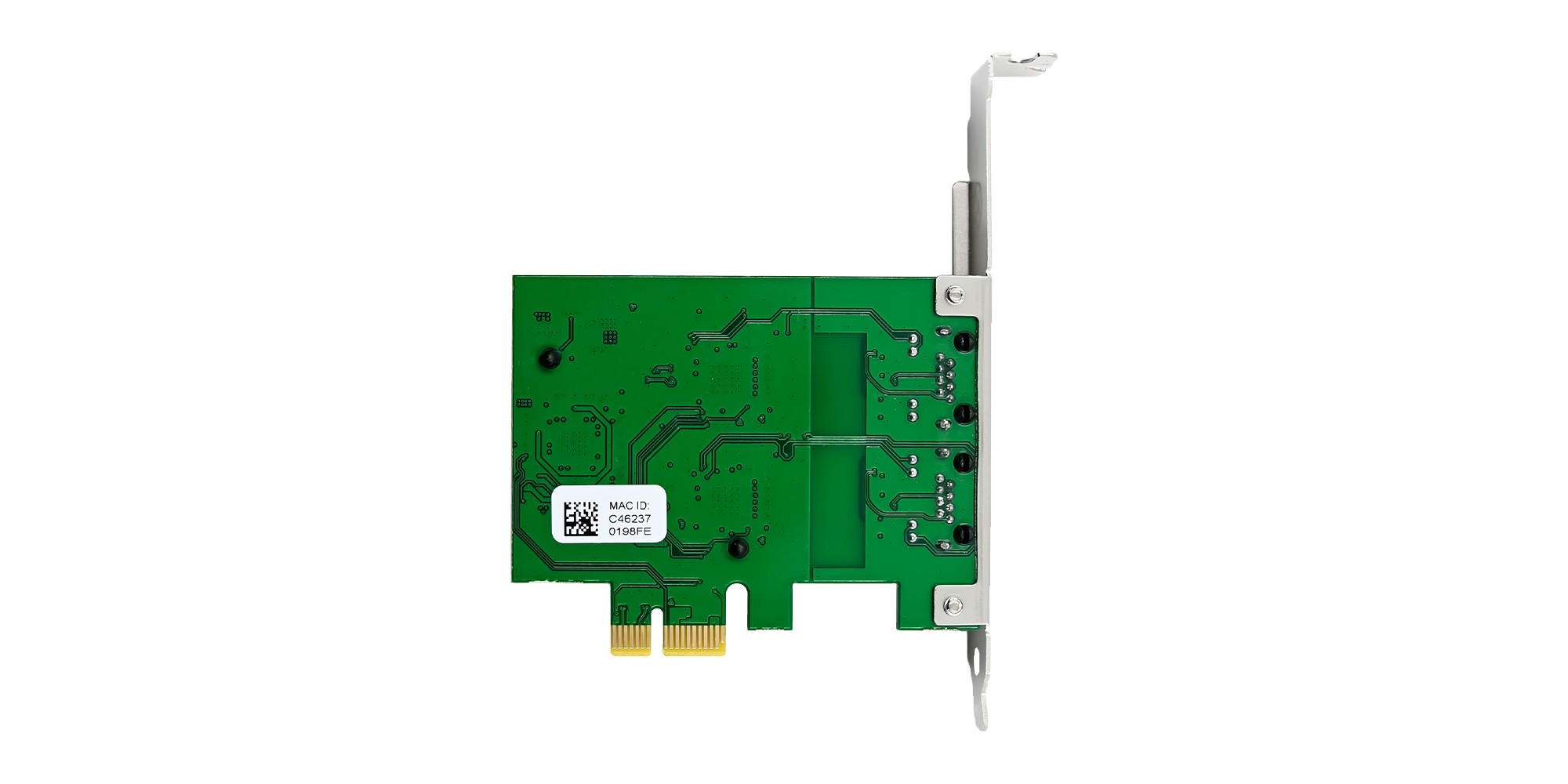

Intel I226 based NIC PCIe 3.1 x4 Dual Port 2.5GbE RJ45
Buy through a distribution partner
Powered by
Intel I226 based NIC PCIe 3.1 x4 Dual Port 2.5GbE RJ45
Intel I226 based NIC PCIe 3.1 x4 Dual Port 2.5GbE RJ45
The Intel Ethernet Network Adapter I226-T2 is ideally suited for personal computers and workstations used for enterprise, gaming, and home networks. Based on the Intel Ethernet Controller I226, this versatile networking solution supports 2.5Gbps, 1Gbps, 100Mbps and 10Mbps network speeds without the need to overhaul existing cabling infrastructure.
These systems require more bandwidth than ever before. he I226-T2 is also designed with a ventilated bracket, for increased efficiency and reduced power consumption. Packed with performance optimization capabilities, the I226-T2 includes advanced interrupt-handling features to reduce CPU overhead. Combining interrupt-handling features with intelligent filtering, ordering, and directing packets to specific queues and cores, enables load-balancing network traffic flows to improve throughput in multi-core platforms. Simplifying technology transitions with auto negotiation between port speeds provides maximum flexibility.
System Requirements
Windows Client: Windows 10/ 11 Windows* 64-bit
Windows Server: 2019/ 2022
Specification
- Compliant with PCI Express specification Revision 3.1 (5GT/s)
- MDI (Copper) standard IEEE802.3 Ethernet interface up to 2.5Gb/s
- Complies with dual port 2.5GbE RJ45 port (copper)
- Complies with the MDI standard IEEE802.3 Ethernet interface for 2500BASE-T,1000BASE-T, 100BASE-TX, 10BASE-TE application ( IEEE802.3bz, IEEE802.3ab IEEE802.3u and IEEE802.3 )
- IEEE802.3 Auto-negotiator
- IEEE802.3x and IEEE802.3z compliant flow control support with software-controllable RX thresholds and TX pause frames
- Automatic cross-over detection function (MDI/MDI-X)
- IEEE 1588 Protocol and 802.1AS implementation
- Supporting Time Sensitive Networking (TSN) Capabilities
- Support IEEE802.3az-Energy Efficient Ethernet (EEE)
- Full Wake-On-Lan support
- TCP/UDP, IPv4 checksum offloads (Rx/Tx)
- Transmit Segmentation offloading (TSO) (IPv4, IPv6)
- Support for packets up to 9.5KB Jumbo Frames
-
Connector Type
-
Data Rate
-
Storage Temperature
-
Bracket Height
-
Bus Type
-
Bus Width
-
Chipset
-
Protocol
-
Link Rate
-
Number of Ports
-
Compatible OEM
-
Operating Temperature Range
-
Safety & Environmental Standards
-
Warranty
-
Dimensions
-
ECCN
