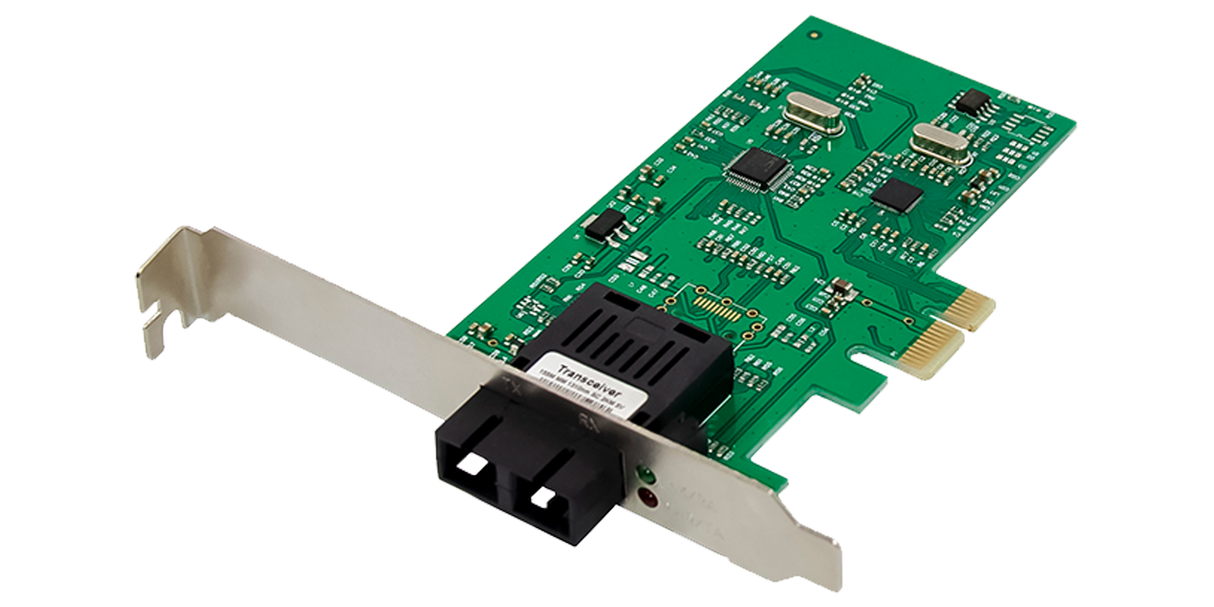

Realtek RTL8105E based NIC PCIe 1.1 x1 Single Port 100MbE SC
Realtek RTL8105E based NIC PCIe 1.1 x1 Single Port 100MbE SC

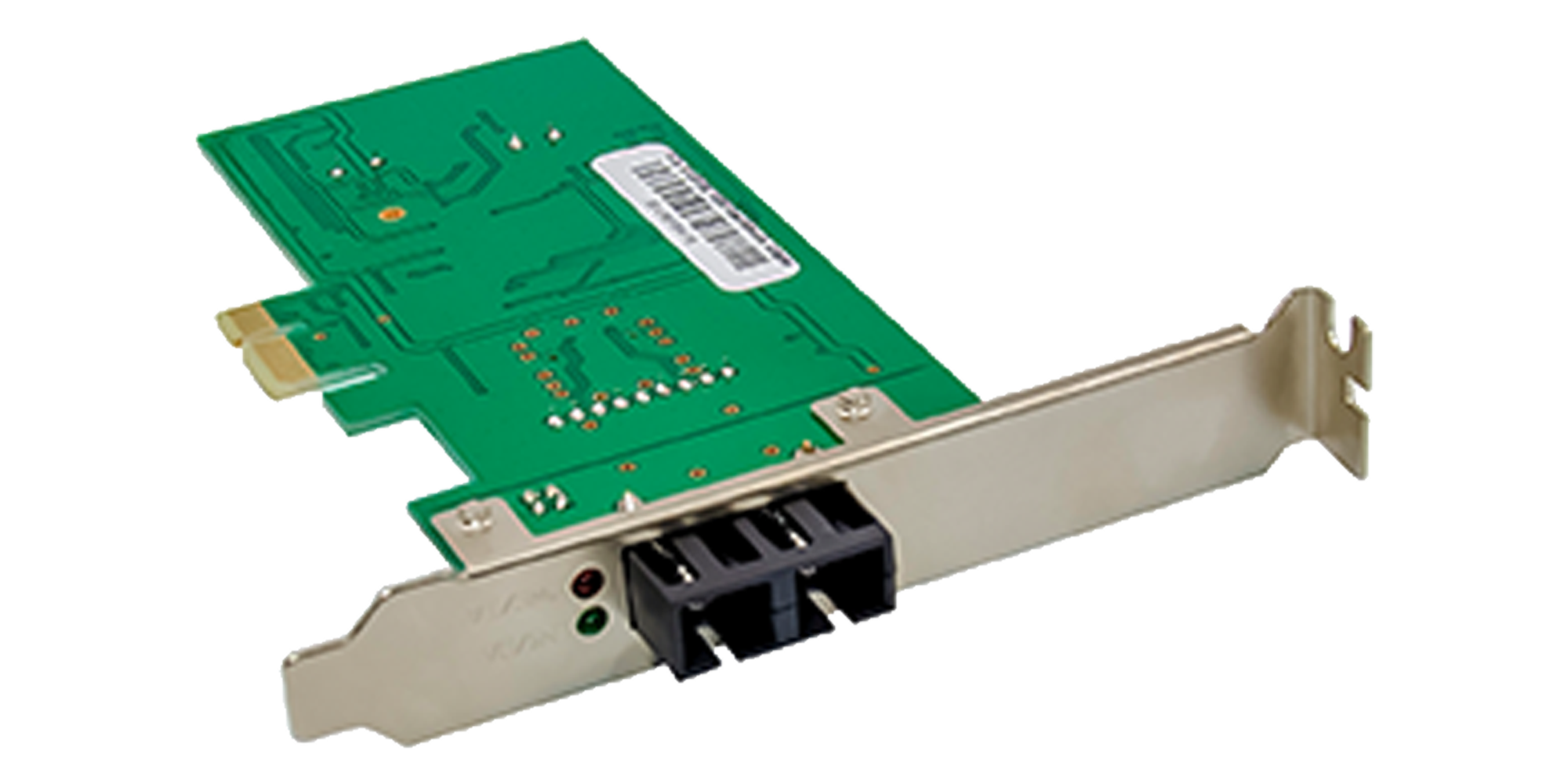

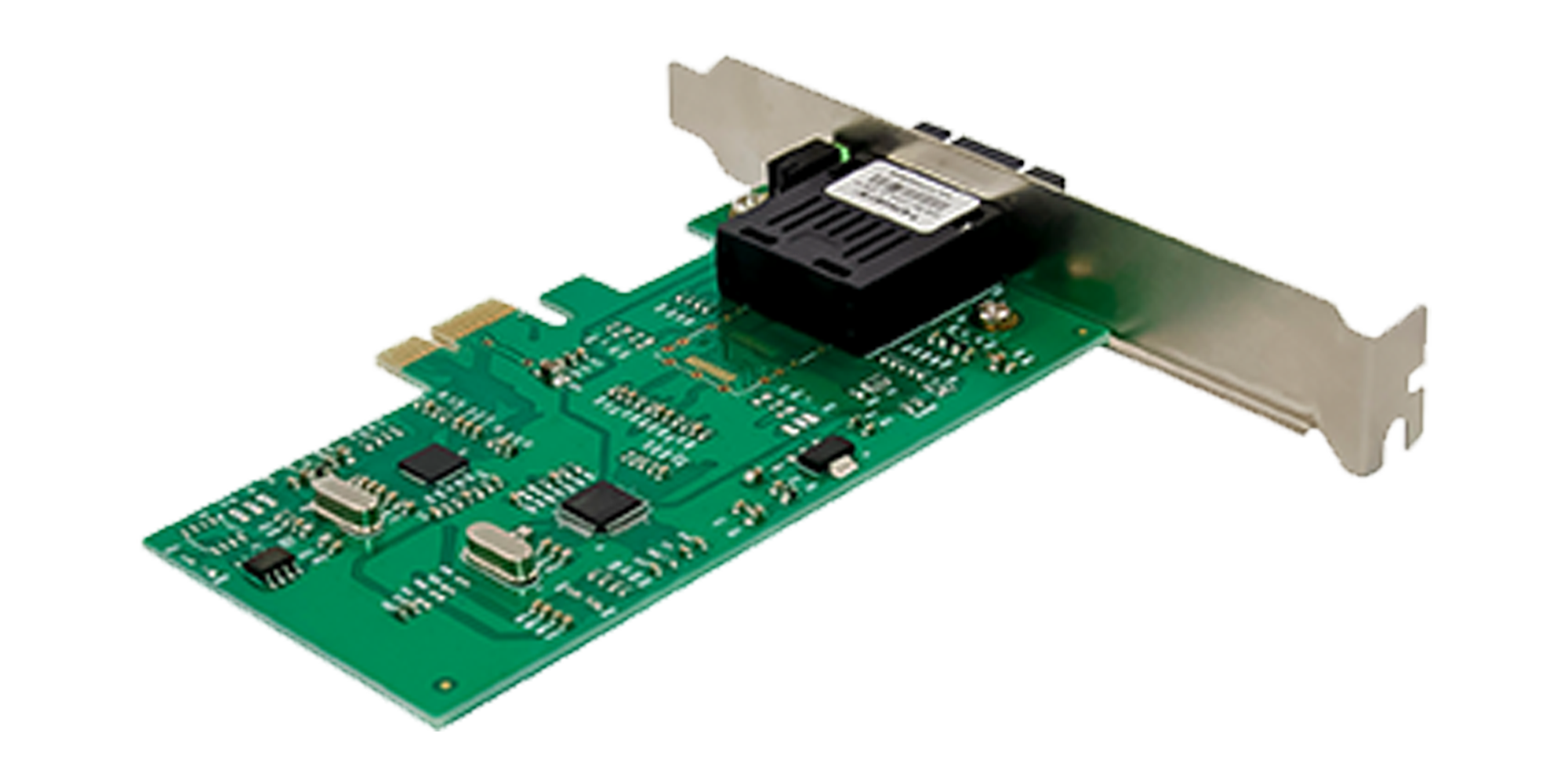

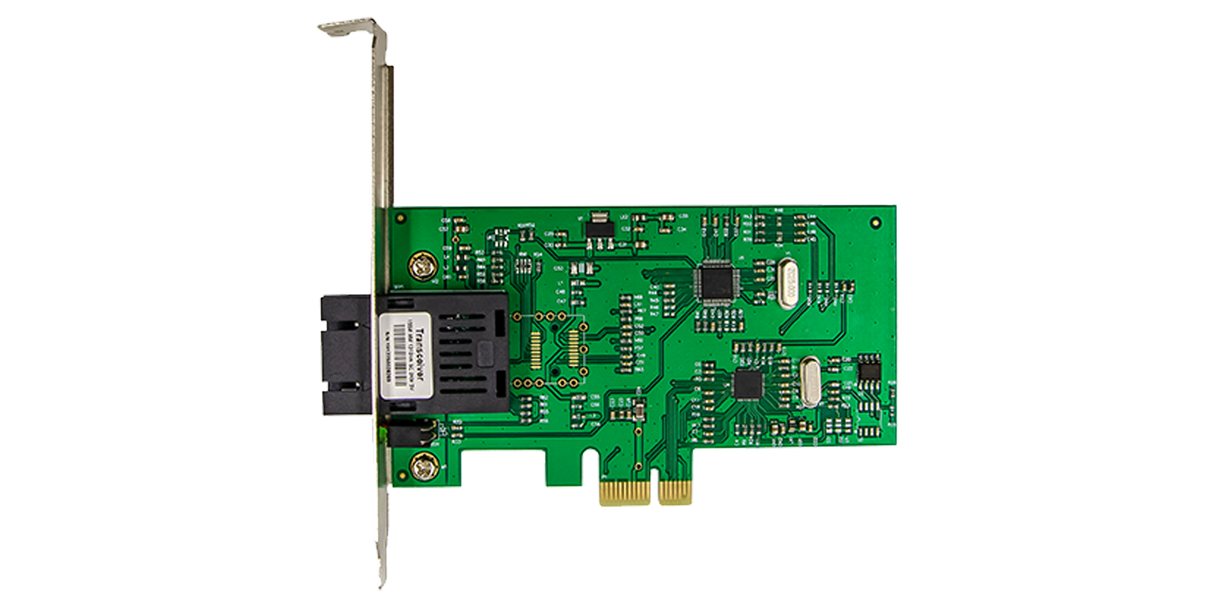

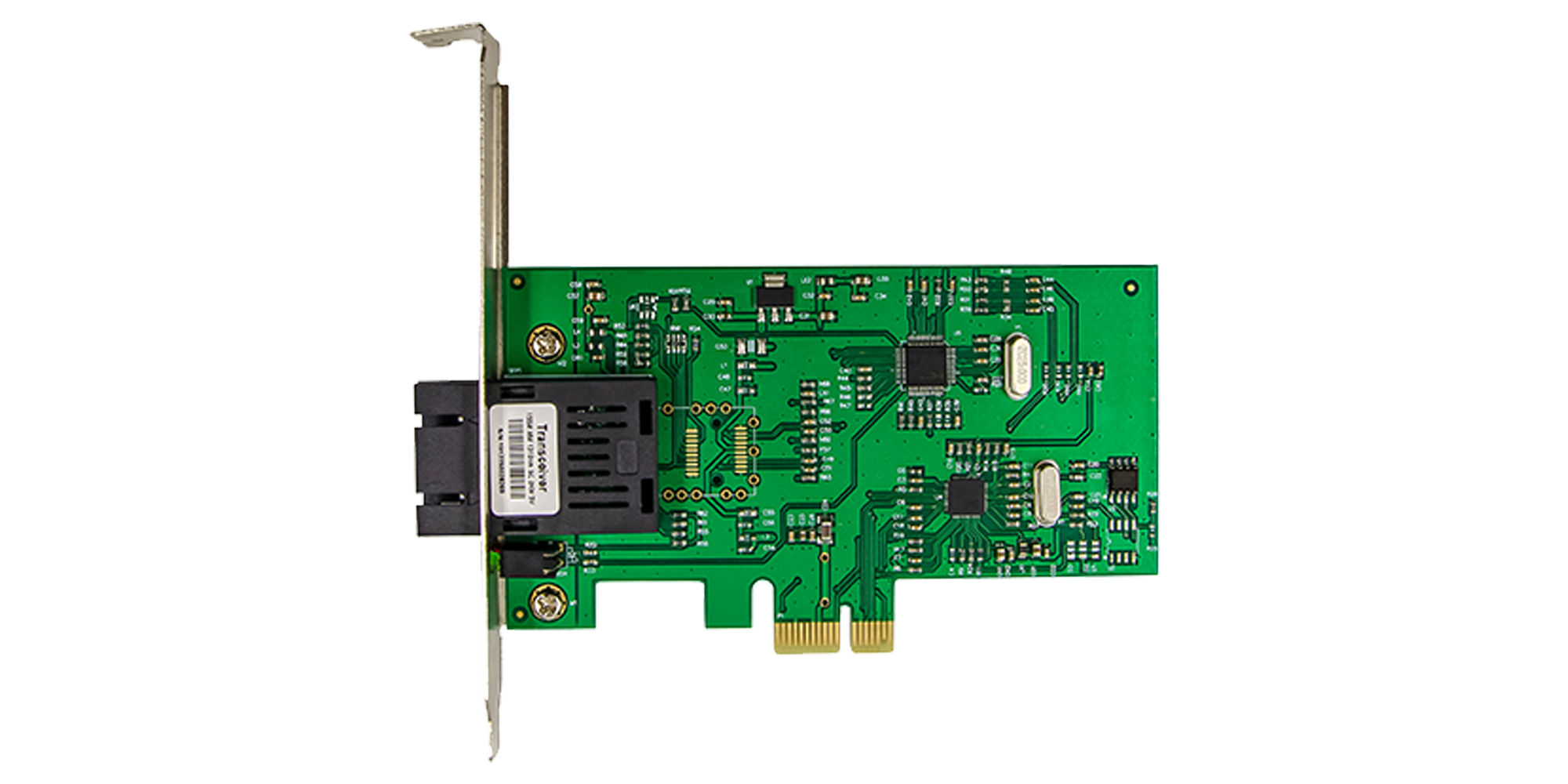

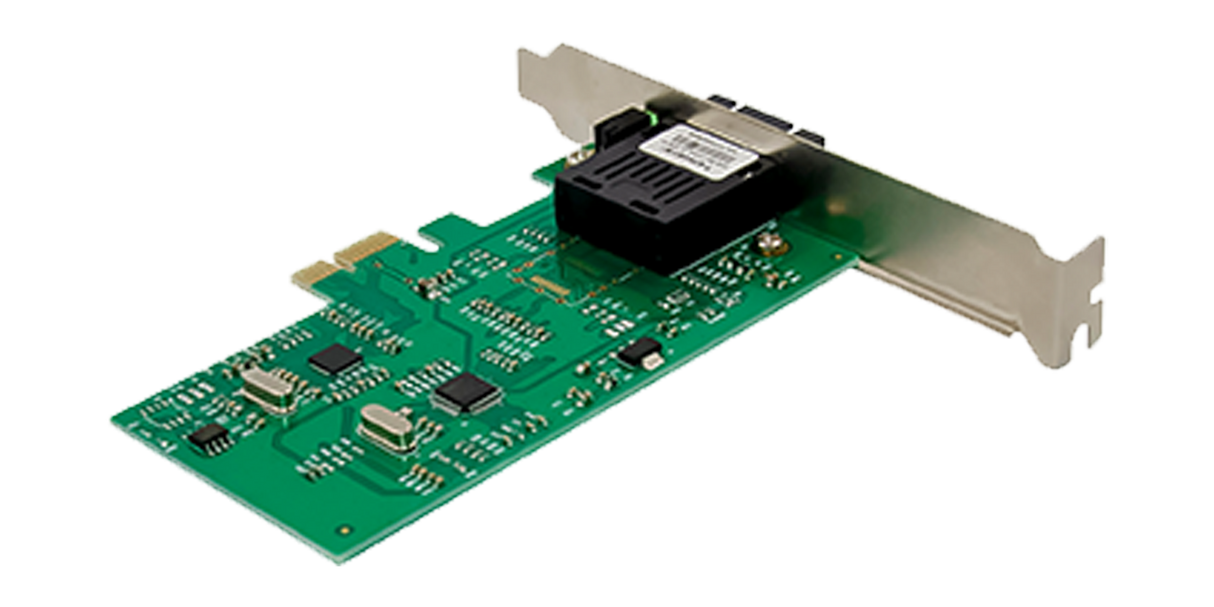

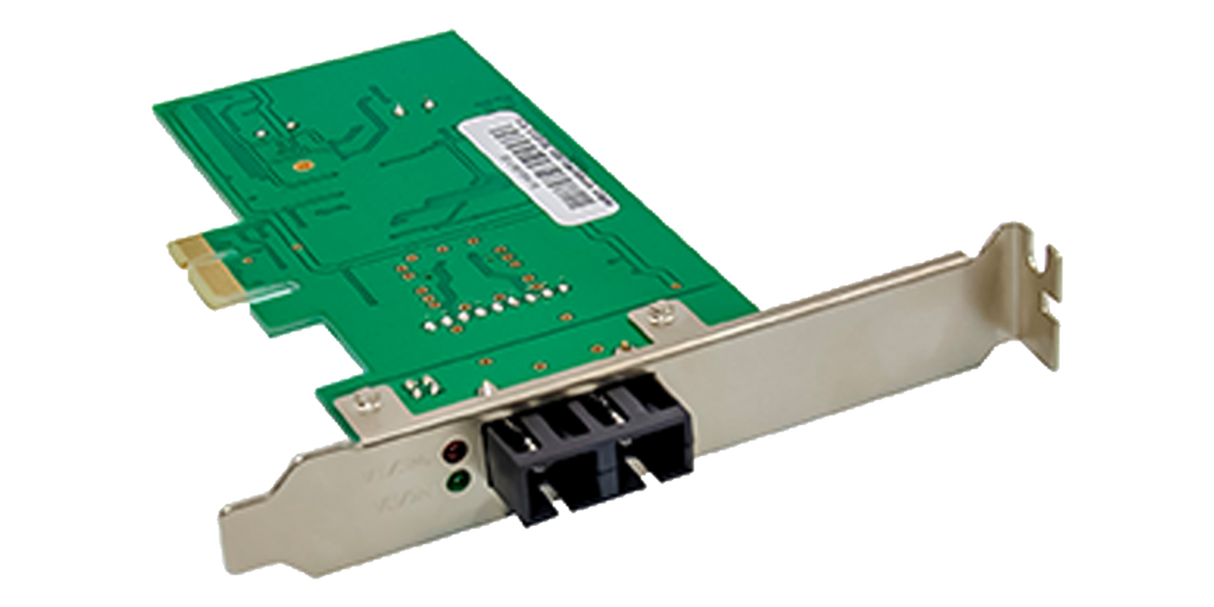

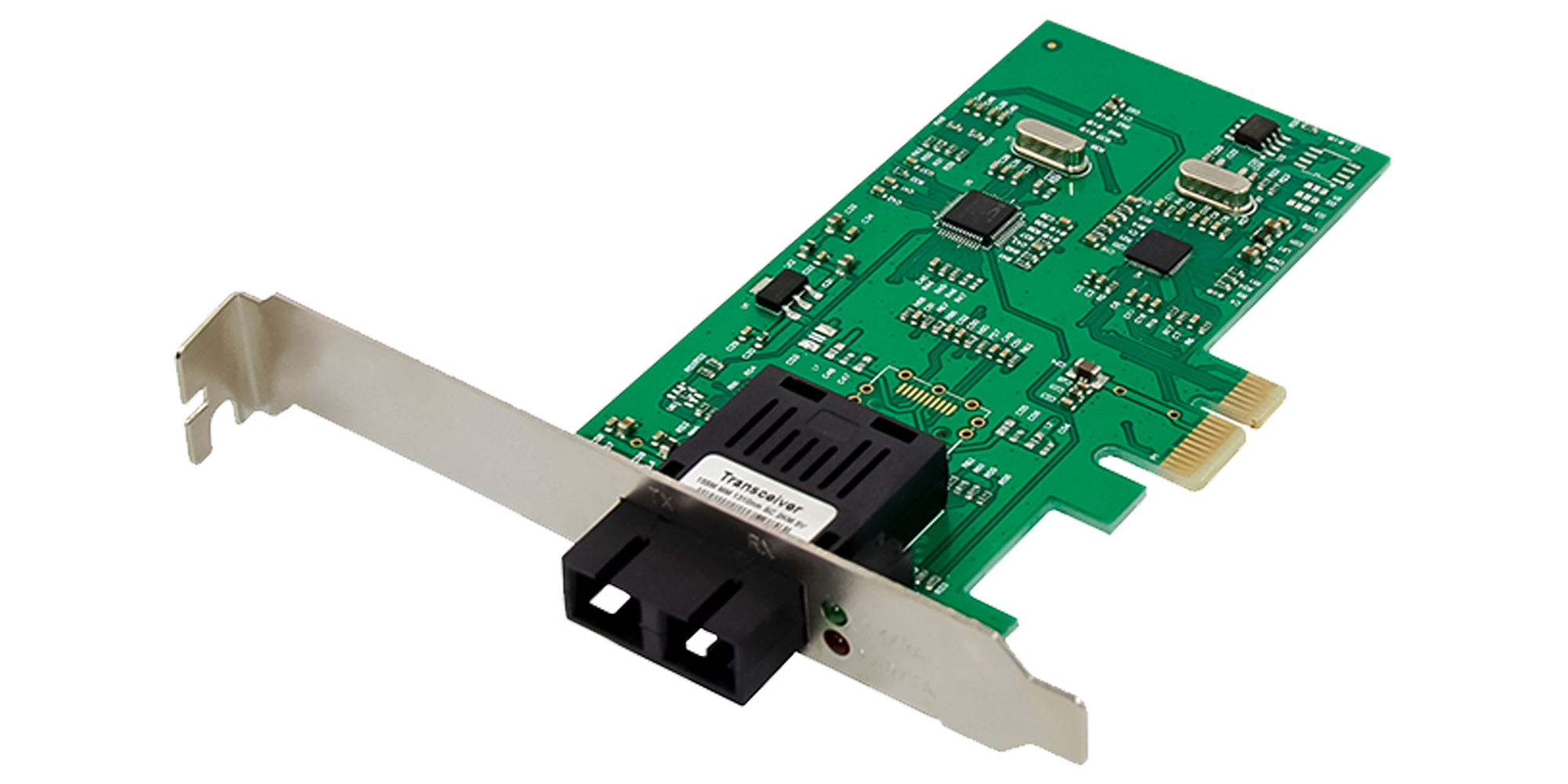

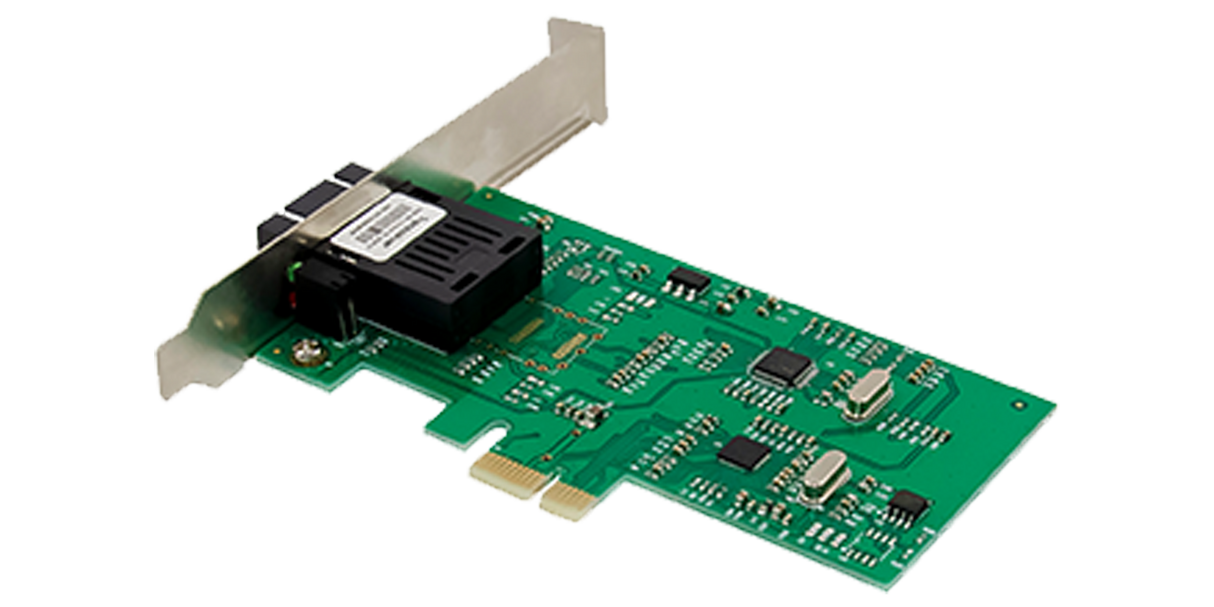

The PCIe RTL8105E 100M Fibre network adapter is a single-chip, full-duplex, 100Mbps Ethernet MAC+PHY incorporating a PCI Express with bus master support. It is designed for use in a variety of applications including workstation NICs, PC motherboards, and other systems utilizing a PCI Express bus that require network connectivity to an Ethernet or fast Ethernet LAN.
- Compliant with PCI Express Revision 1.1
- Integrated 10/100M transceiver
- Compliant with IEEE802.3 100MBase-FX
- Supports 1-Lane 2.5Gbps PCI Express Bus
- Supports Full Duplex Flow Control ( IEEE802.3x)
- Supports IEEE802.1P Layer 2 Priority Encoding
- Supports IEEE802.1Q VLAN tagging
- Supports IEEE802.3az Draft2.0 (EEE)
- Supports Quad core Receive-Side Scaling (RSS)
- Supports Protocol offload (ARP&NS)
- Supports Wake-on-LAN and remote wake-up
- Supports power Down / Link down power saving
- Supports hardware ECC (Error Correction Code) function
- Supports hardware CRC (Cyclic Redundancy Check) function
- Microsoft NDIS5, NDIS6 Checksum offload (IPv4, IPV6, TCP, UDP) and Segmentation Task-offload (Large send v1 and Large send v2)
- Maximum transmission distance of 20km in Single mode 1310/1550nm
- Connector interface: LC type
System Requirements
Windows Client: Windows 7/8/8.1/10 (32-64 bit), Linux
-
Connector Type
-
Data Rate
-
Media
-
Storage Temperature
-
Bracket Height
-
Bus Type
-
Bus Width
-
Chipset
-
Protocol
-
Link Rate
-
Number of Ports
-
RDMA
-
Compatible OEM
-
Operating Temperature Range
-
Safety & Environmental Standards
-
Warranty
-
Dimensions
-
ECCN
