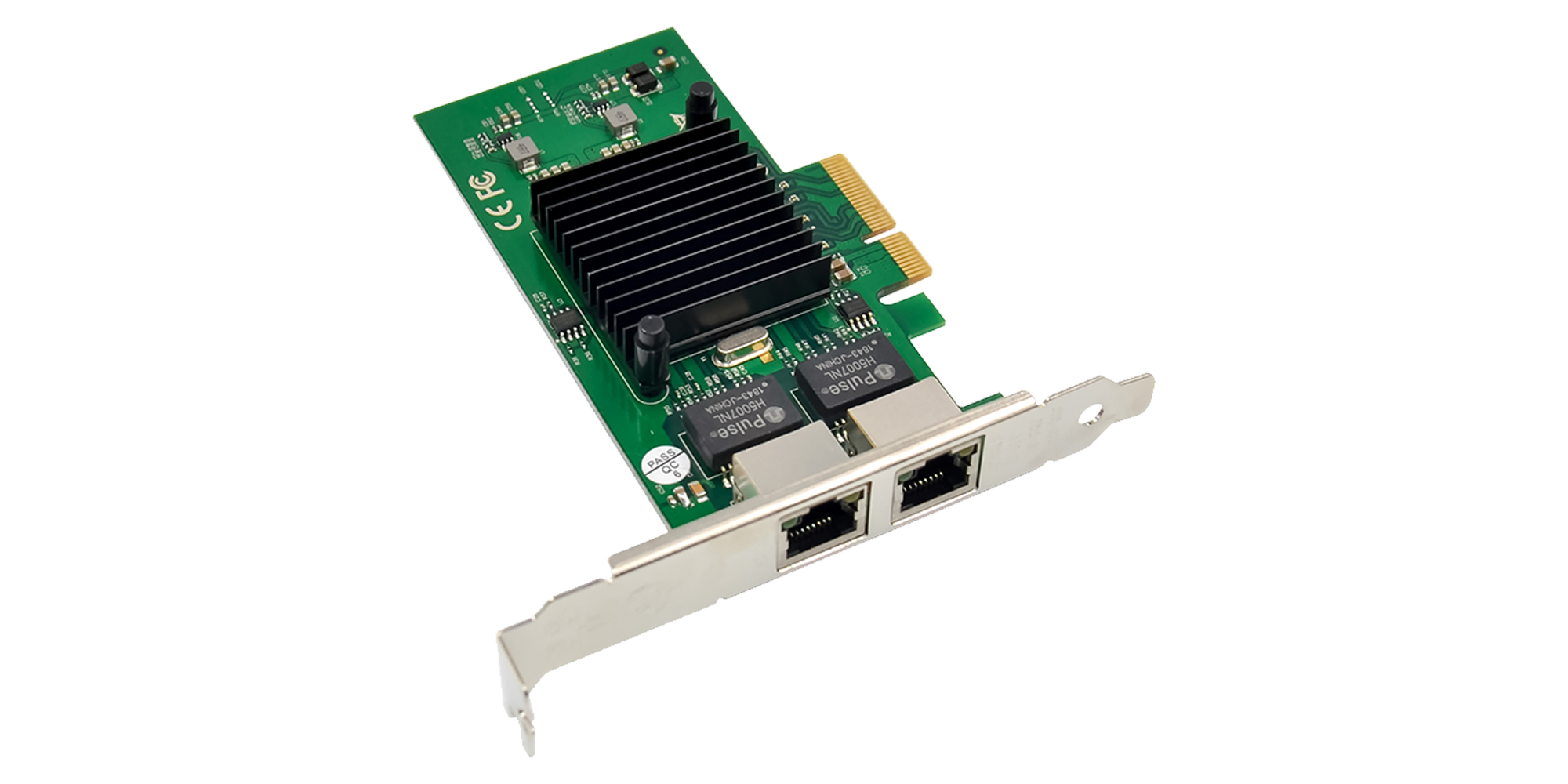

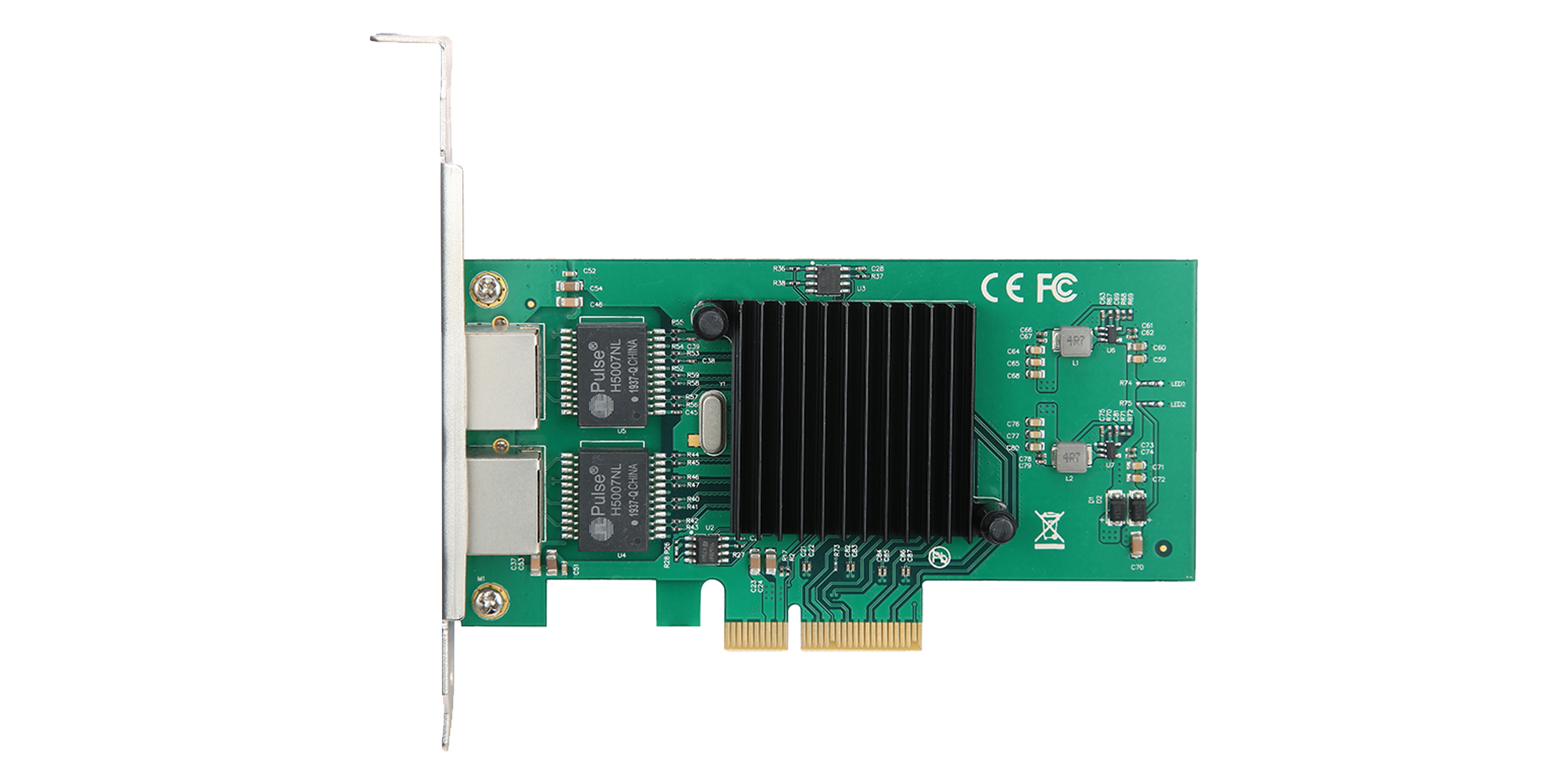

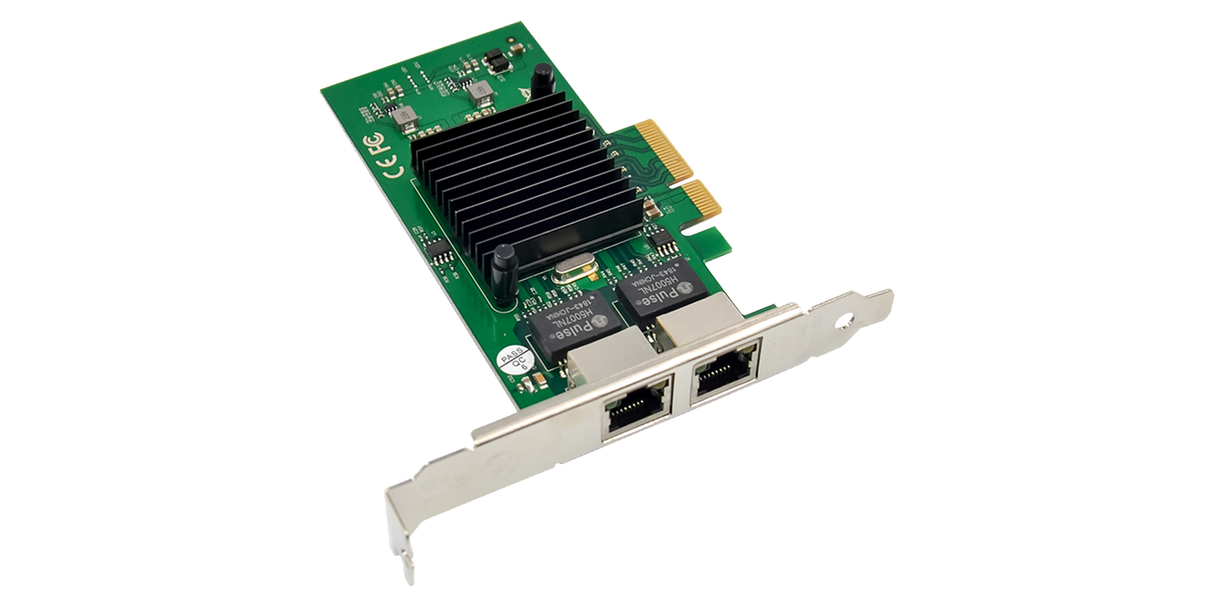

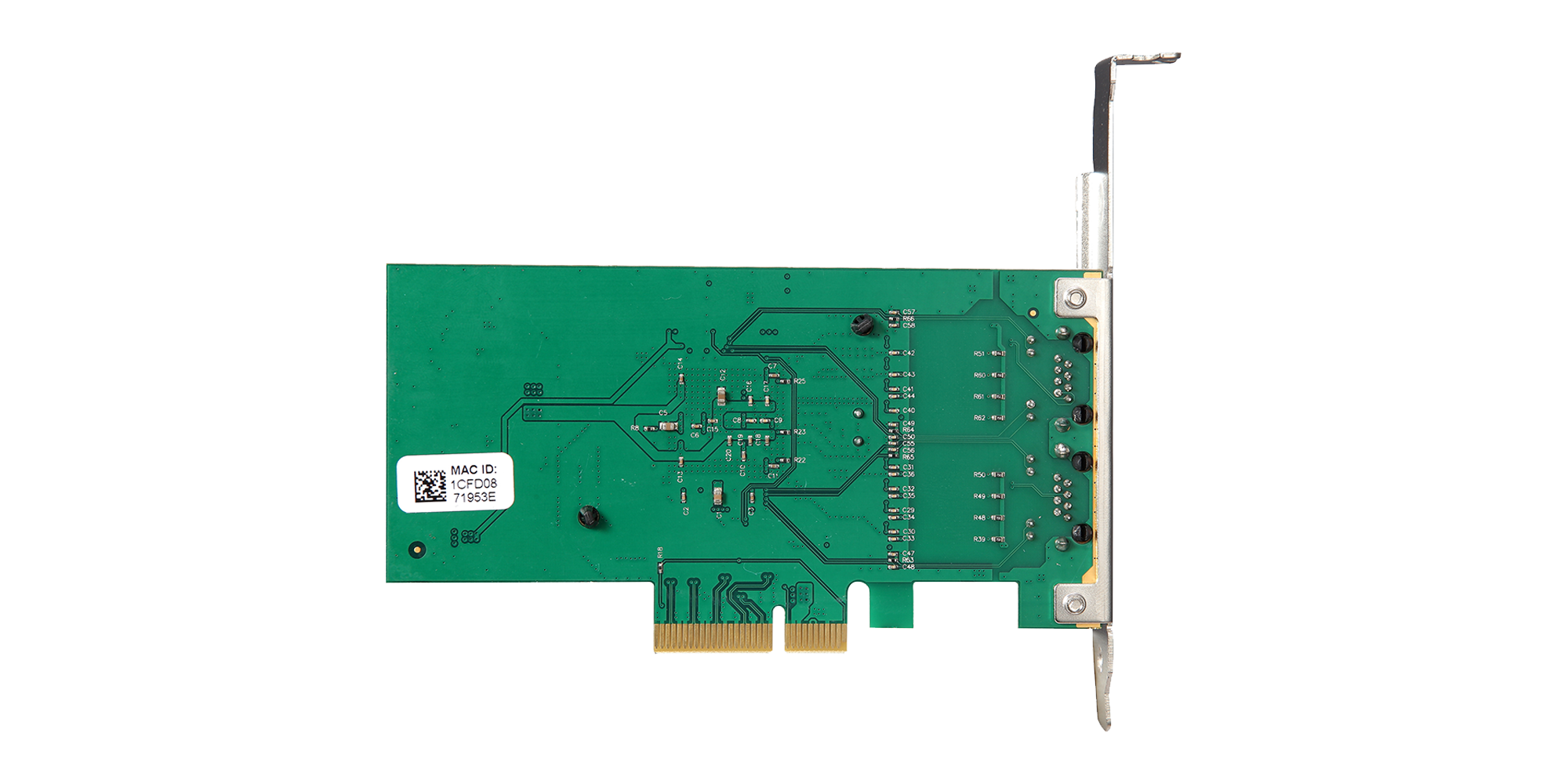

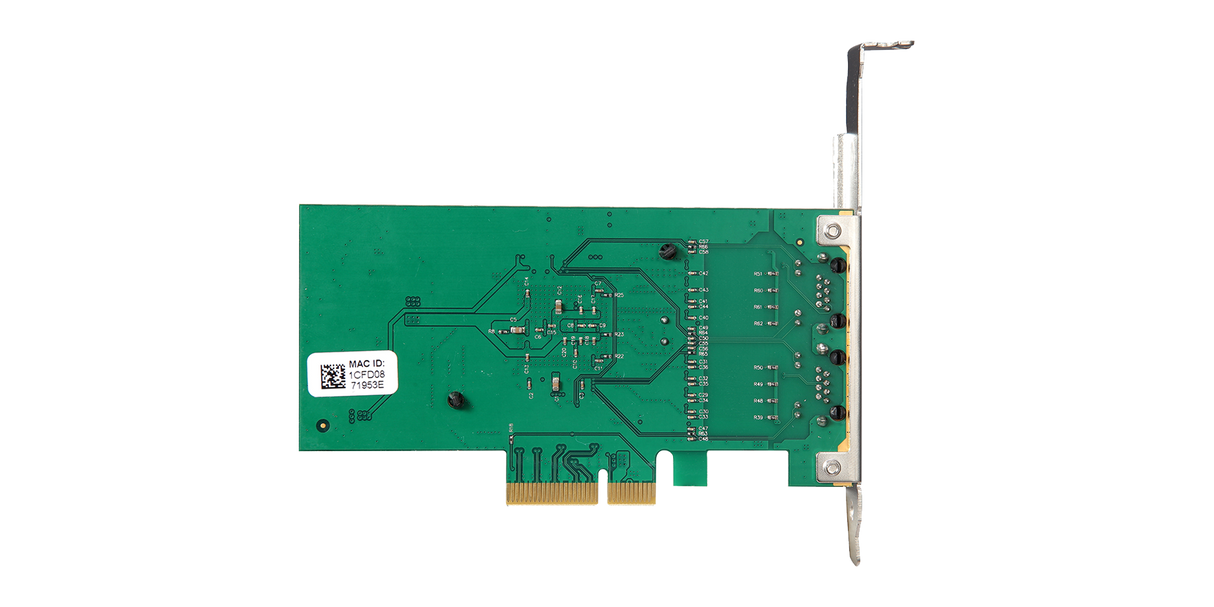

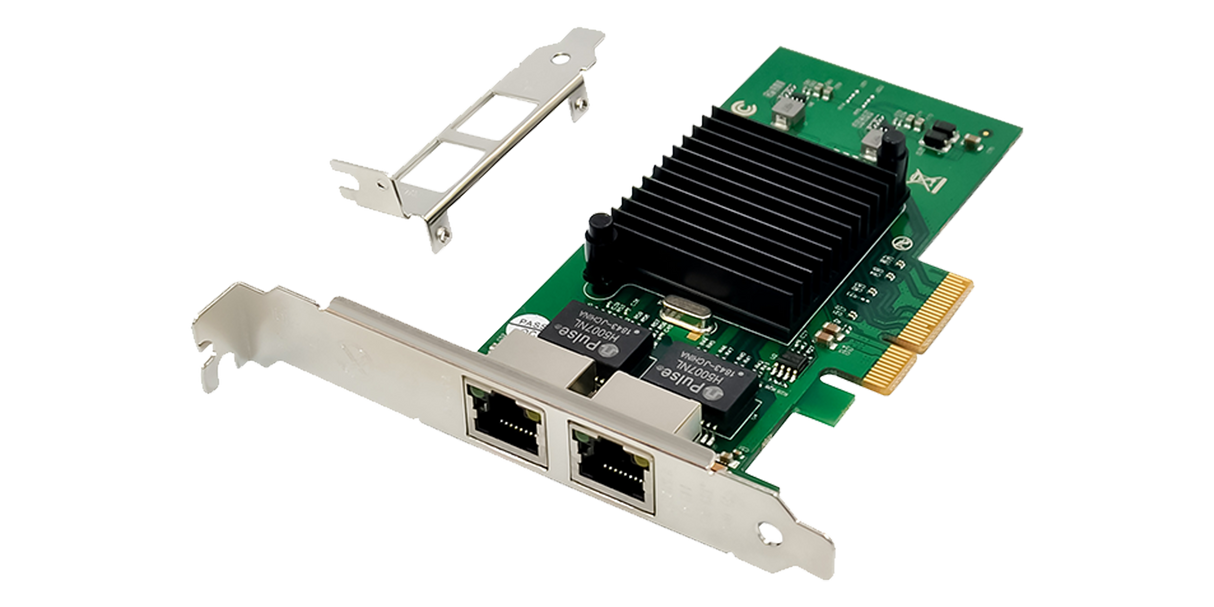

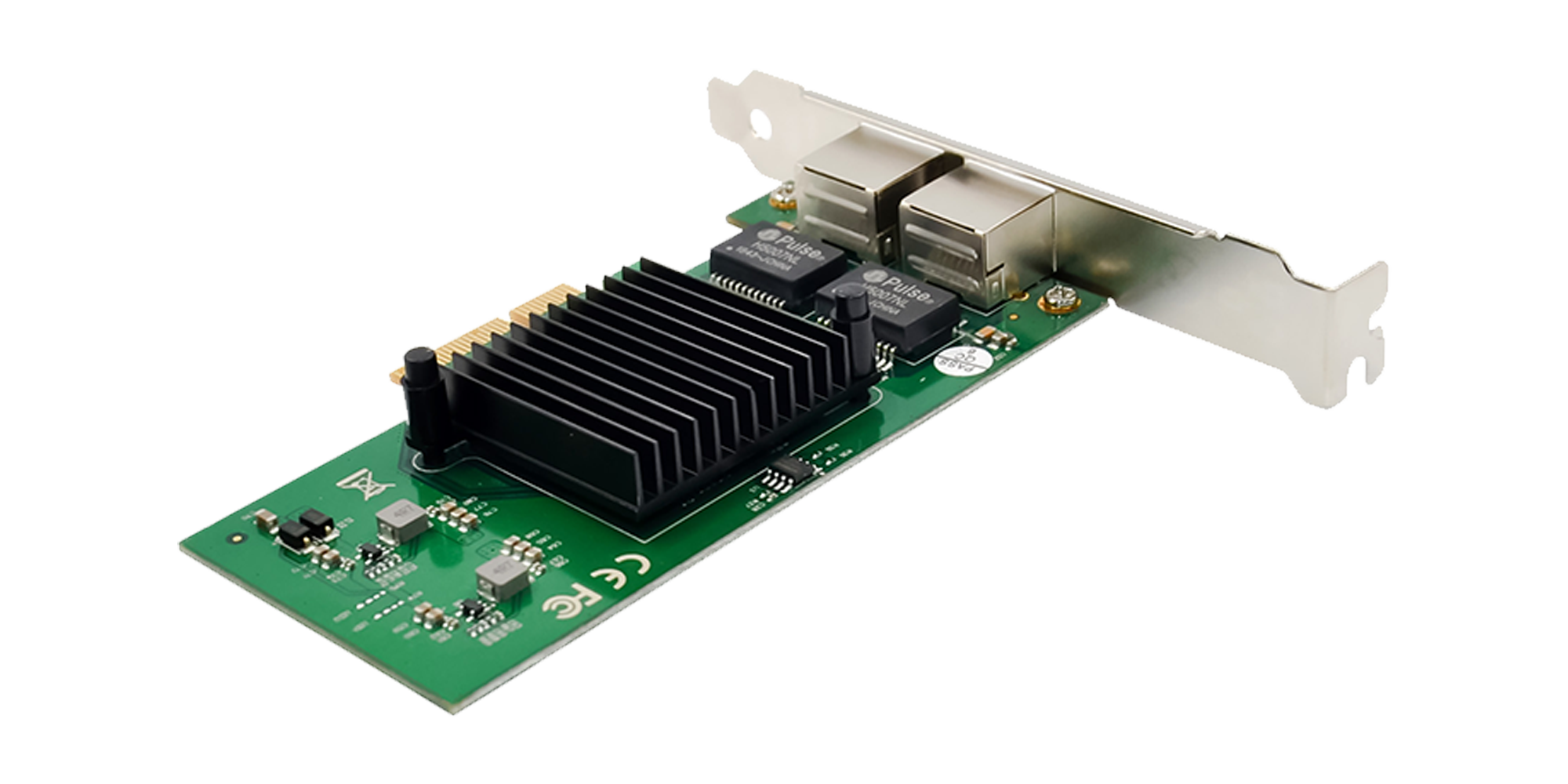

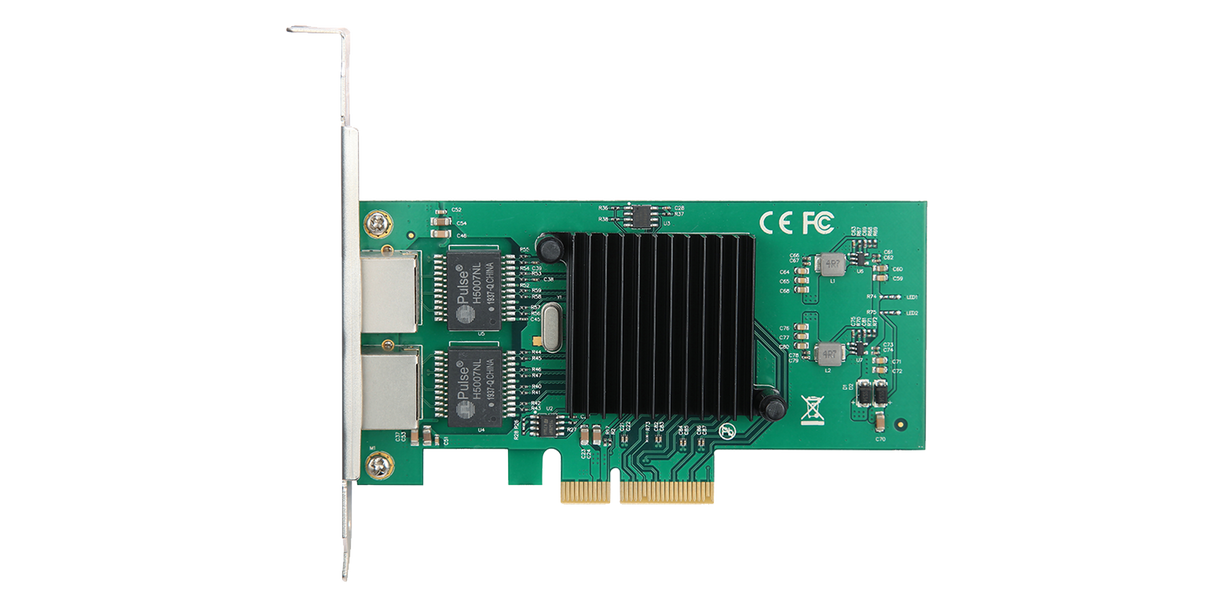

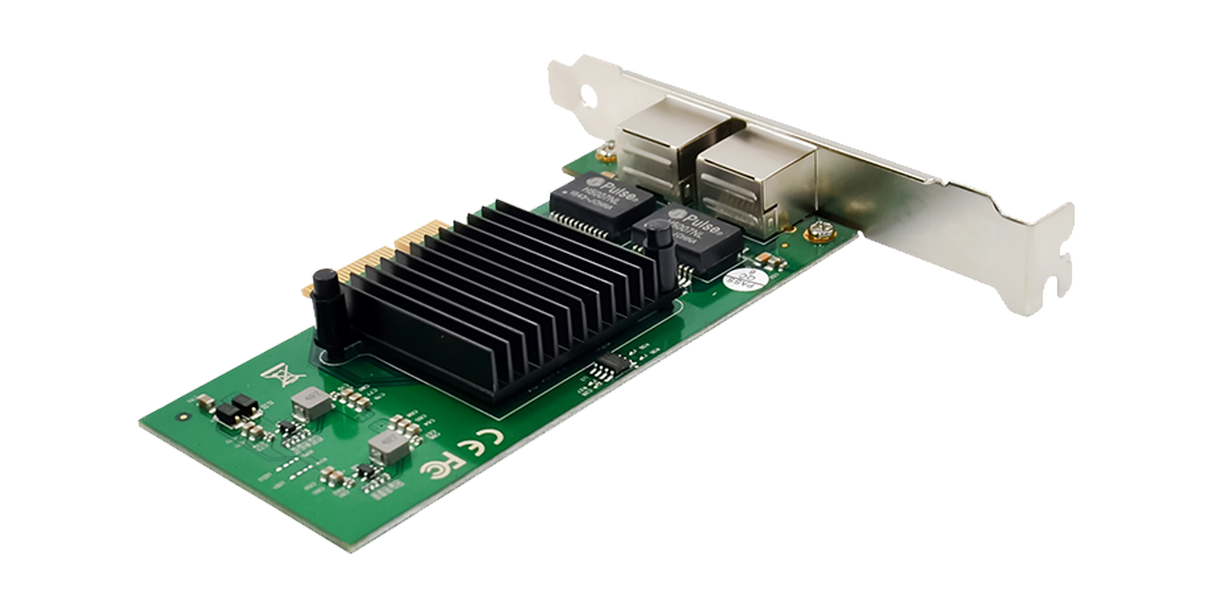

Cisco® N2XX-ABPCI01-M3 alternative Intel 82576 NIC PCIe 2.0 x4 Dual Port 1GbE RJ45

Cisco® N2XX-ABPCI01-M3 alternative Intel 82576 NIC PCIe 2.0 x4 Dual Port 1GbE RJ45

The PCIe* v2.0 (2.5GT/s) Intel 82576 GbE Network adapter is a single, compact, low power component that offers two fully integrated Gigabit Ethernet Media Access Control (MAC) and physical layer (PHY) ports.

The 82576 enables two-port implementation in a relatively small area and can be used for server system configurations such as rack mounted or pedestal servers, where it can be used as add-on NIC or LAN on Motherboard (LOM) designs.

Another system configuration is blade servers, where it can be used as LOM. The 82576 can also be used in embedded applications such as switch add-on cards and network appliances.

System Requirements

• Windows Client: Windows 10/8.1/8/7
• Windows Server: 2008 R2/2012/2012 R2/2016/2019
• Linux: RHEL7.9/8.4/8.5, SLES12SP5, SLES15SP3, Ubuntu18.04LTS/ 20.04LTS, FreeBSD 12.2/13

Specification

• Chipset: Intel JL82576EB
• PCI-Express host interface specification v2.0 with 2.5GT/s BUS width
• PCI-Express lanes: x4
• MDI (Copper) standard IEEE 802.3 Ethernet interface for 1000BASE-T, 100BASE-TX, and 10BASE-T applications (802.3, 802.3u, and 802.3ab)
• Serializer-Deserializer (SERDES) to support 1000Base-SX/X/LX (optical fibre) for Gigabit backplane applications.
• Layer 2 functions: IEEE 802.3x Flow Control - IEEE 802.1q VLAN
• Supports Receive-side scaling (RSS)
• Supports IPv 4, IPv 6 protocols
• Supports Jumbo Frames up to 9.5K
• Supports UDP.TCP and IP Checksum offloading
• Statistics for management and RMON
• Support for virtual machines device queues
• Queues per port: 16 TX queues and 16 RX queues Full-Spectrum Security
• Next Generation VMDq Support (8VMs)
• Interrupt throttling control to limit maximum interrupt rate and improve CPU usage
