Broadcom® BCM957414A4142CC alternative NIC PCIe 3.0 x8 Dual Port 25GbE SFP28

Broadcom® BCM957414A4142CC alternative NIC PCIe 3.0 x8 Dual Port 25GbE SFP28

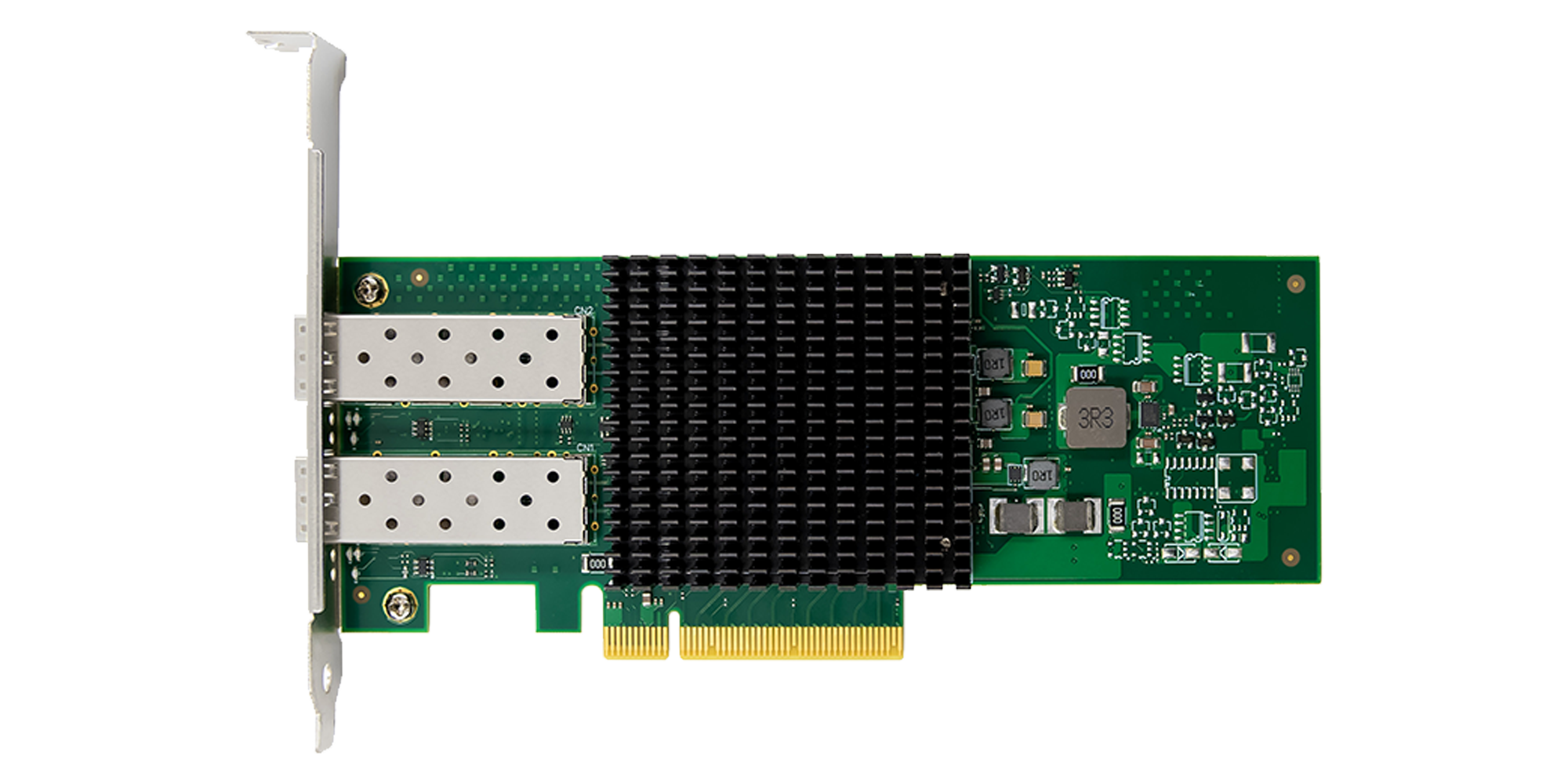

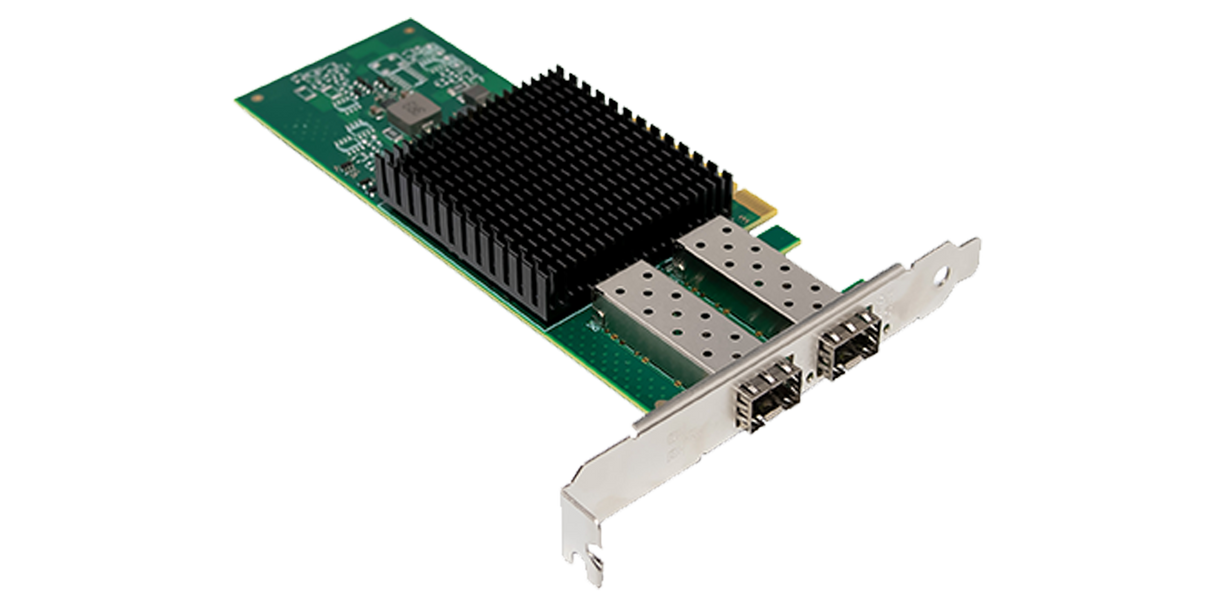

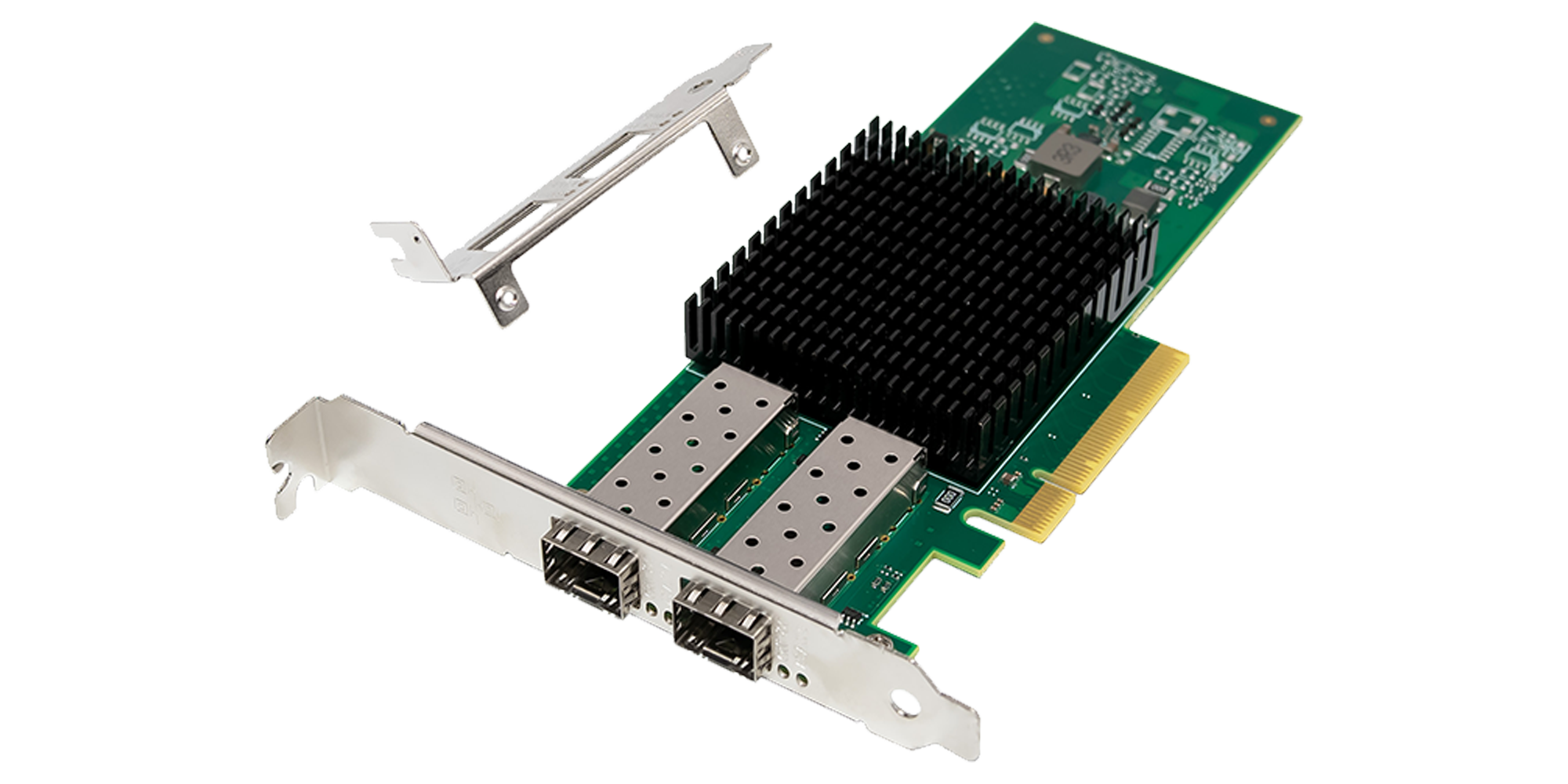

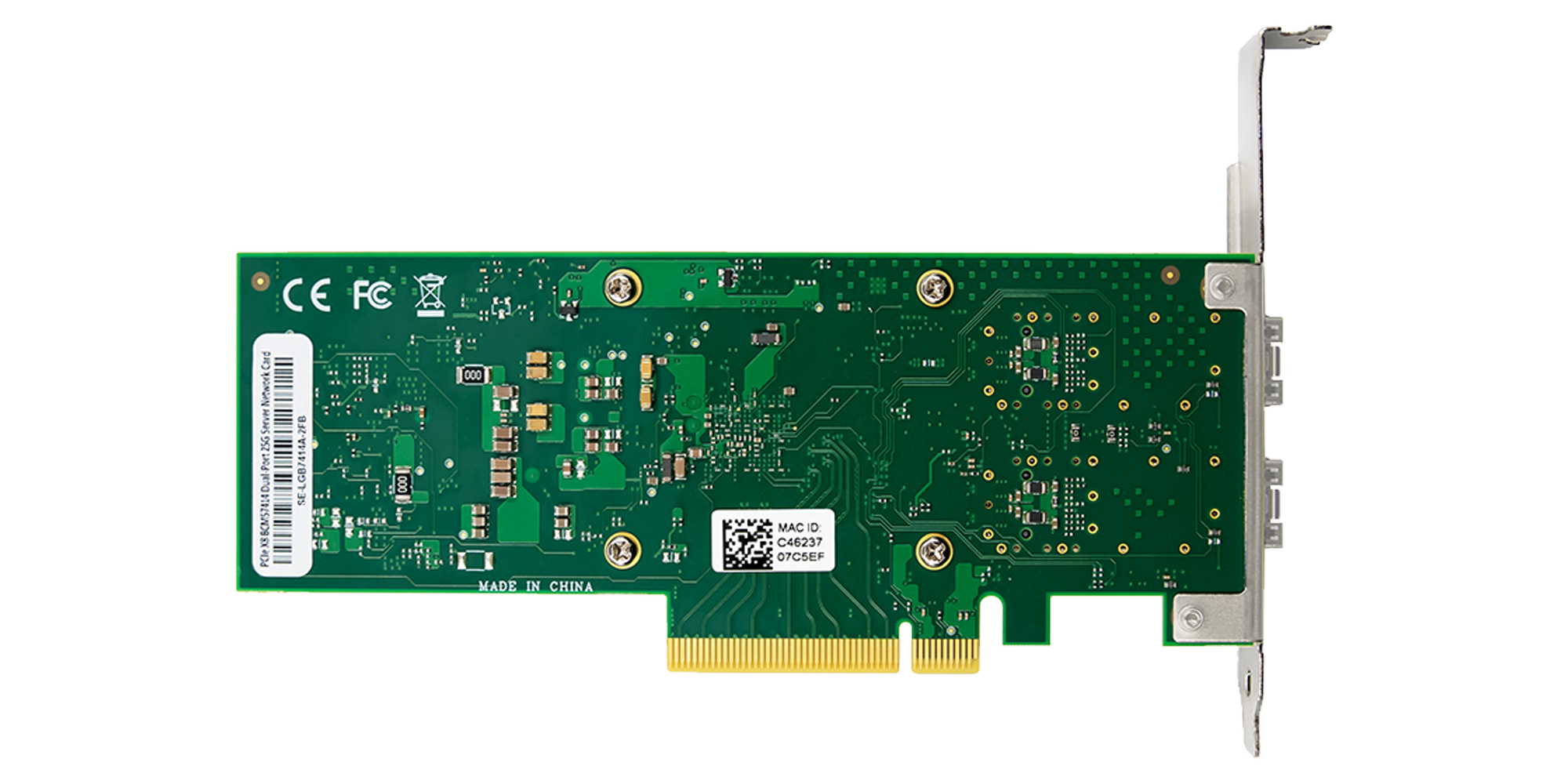

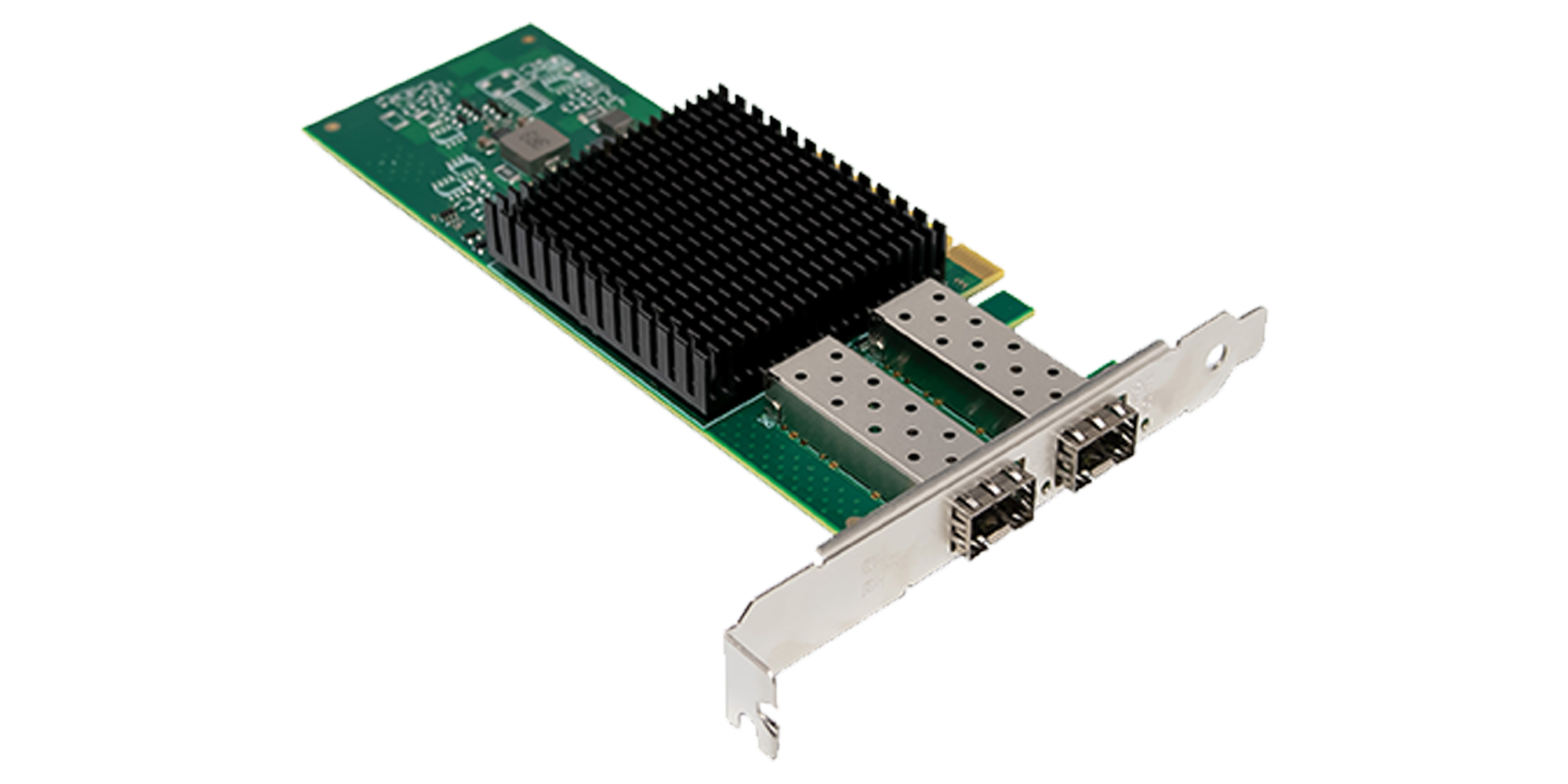

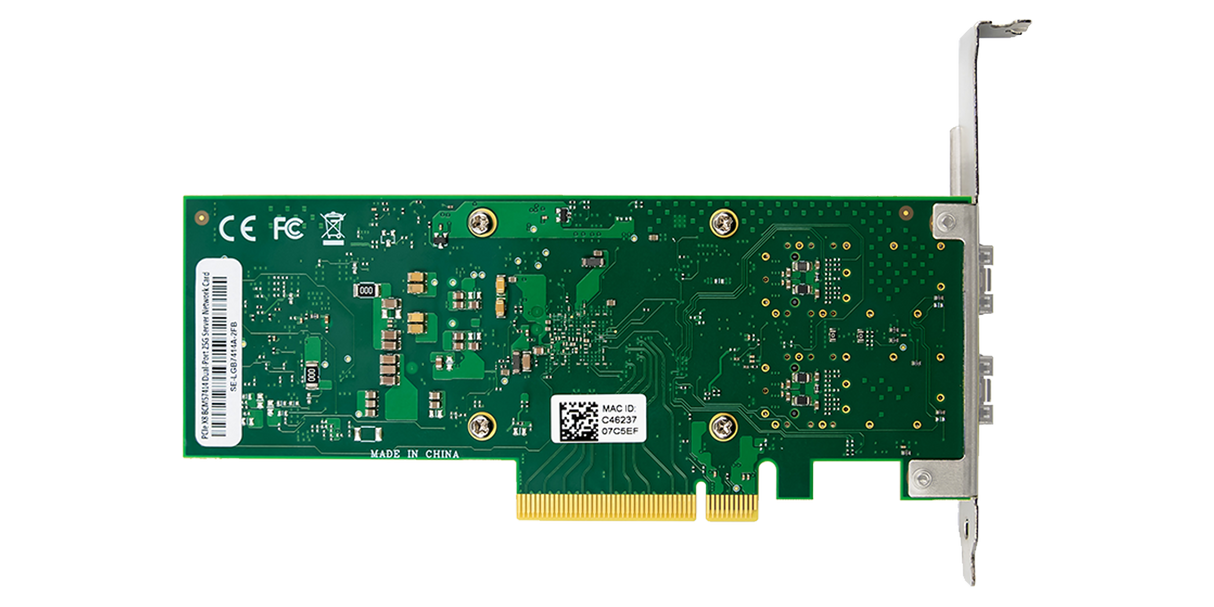

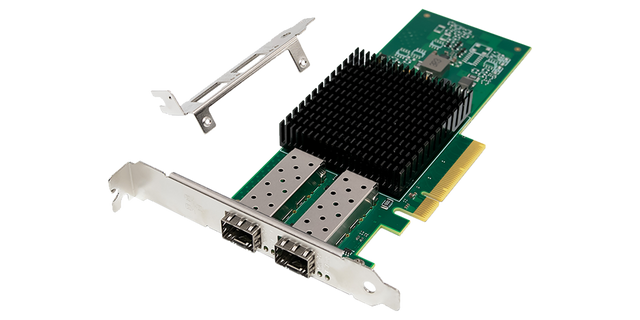

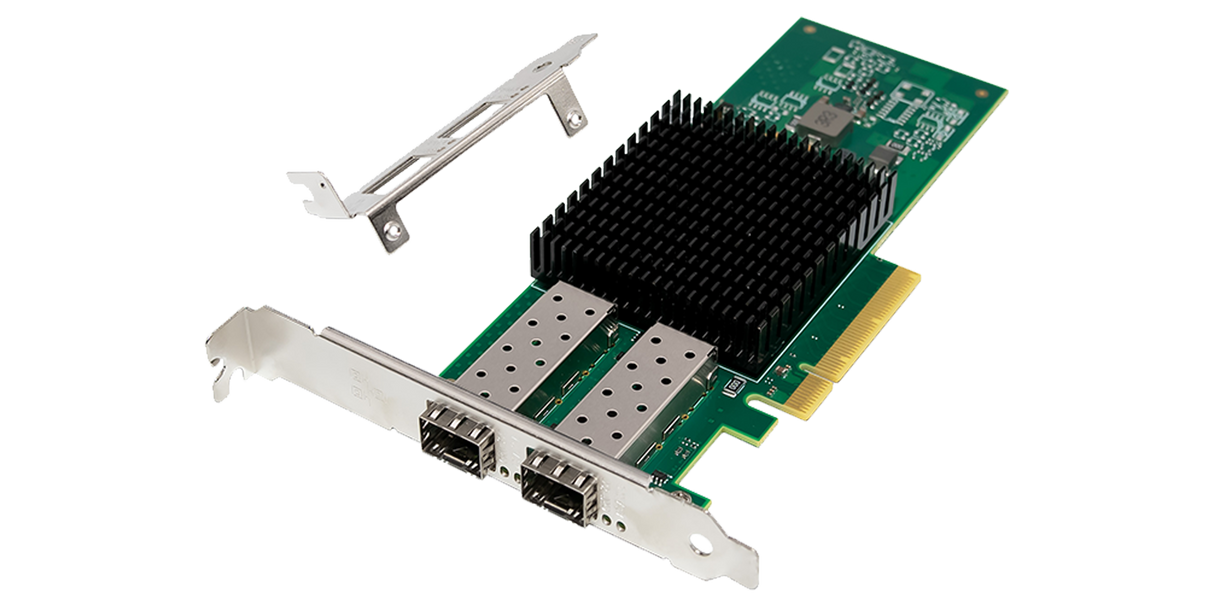

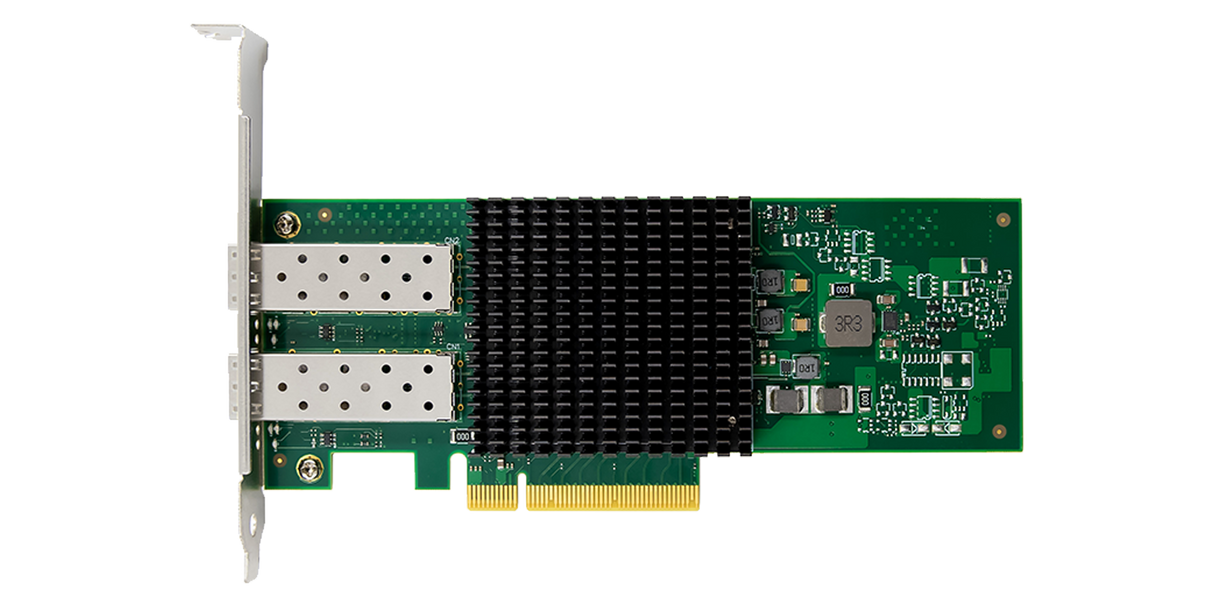

The PCIe x8 Broadcom BCM957414A4142CC Dual-Port 25G SFP28 Network Adapter is a dual-port 25Gbps, PCI Express Gen3 x8 Network Interface Card that supports both SFP28/SFP+ optical modules and copper direct attach cabling. The card uses the Broadcom BCM57414 25GbE MAC controller with the integrated dual-channel 25GbE SFI transceiver. This enables low latency, a high message rate and an embedded PCIe switch and NVMe over Fabrics offloads. These intelligent remote direct memory access (RDMA) enabled adapters provide advanced application offload capabilities for high-performance computing (HPC), cloud hyperscale, and storage platforms.

System Requirements

• Windows® R10/11, Win server 2012/2016/2019/2022/2025
• Linux: RHEL / CentOS / SLES / Ubuntu / FreeBSD / UOS / OPENEULER / KYLIN / EULEROS / DEBIAN / CTYUNOS / BCLINUX / ALIOS
• An available PCI Express x8 slot

Specification

• PCI-Express host interface specification v3.0 x8 compliant with 2.0 and 1.1 compatibility
• 2.5Gbps, 5Gbps, 8Gbps link rate X8
• Auto-negotiates to x8, x4, x2 or x1
• Support for MSI/MSI-X mechanisms
• Supports 25GbE / 10GbE / 1GbE transmission data rates
• IEEE802.1Q, 802.1P VLAN tags and priority
• IEEE802.1Qau (QCN) congestion Notification
• Support IEEE802.3by, IEEE802.3Qbz, IEEE802.3Qbb, IEEE802.1X, IEEE802.1AE, IEEE1588v2
• Jumbo frame supports up to 9KB MTU
• NVMe-oF Target/Initiator Support end-to-end hardware offload for NVMe / TCP and NVMe/RoCE protocols
• RDMA over Converged Ethernet (RoCEv2)
• TCP/UDP/IP stateless offload
• LSO, LRO, checksum offload
• Hardware offload of encapsulation and decapsulation of NVGRE overlay network
• SR-IOV up to 256 virtual functions
• Support Remote boot over Ethernet, Remote boot over iSCSI, PXE and UEFI
