Product Details

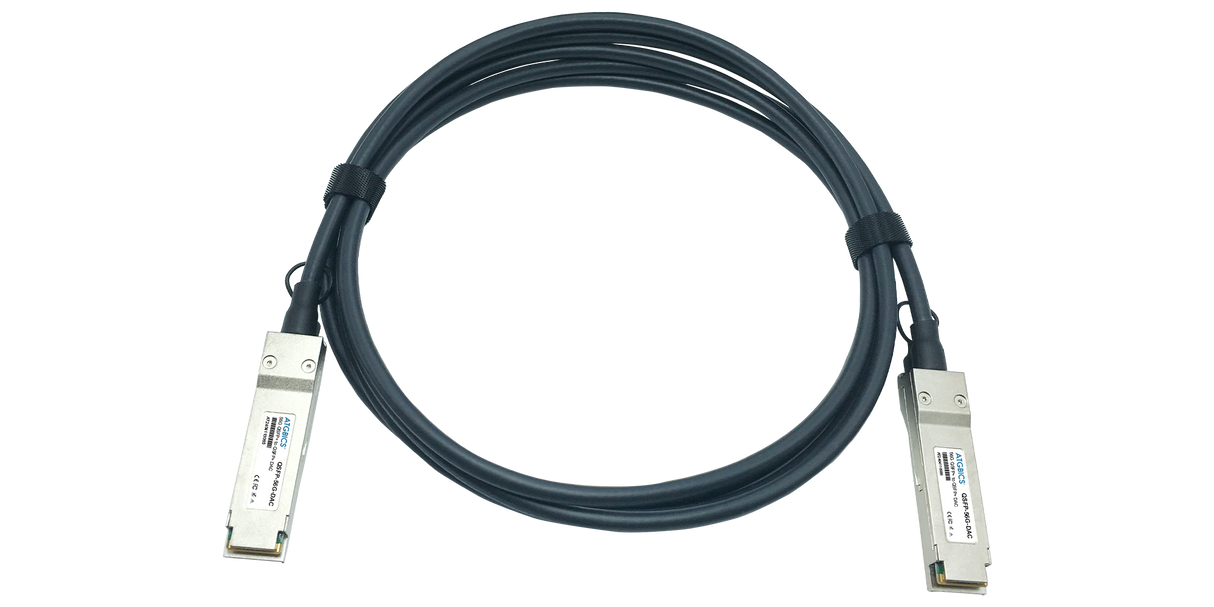

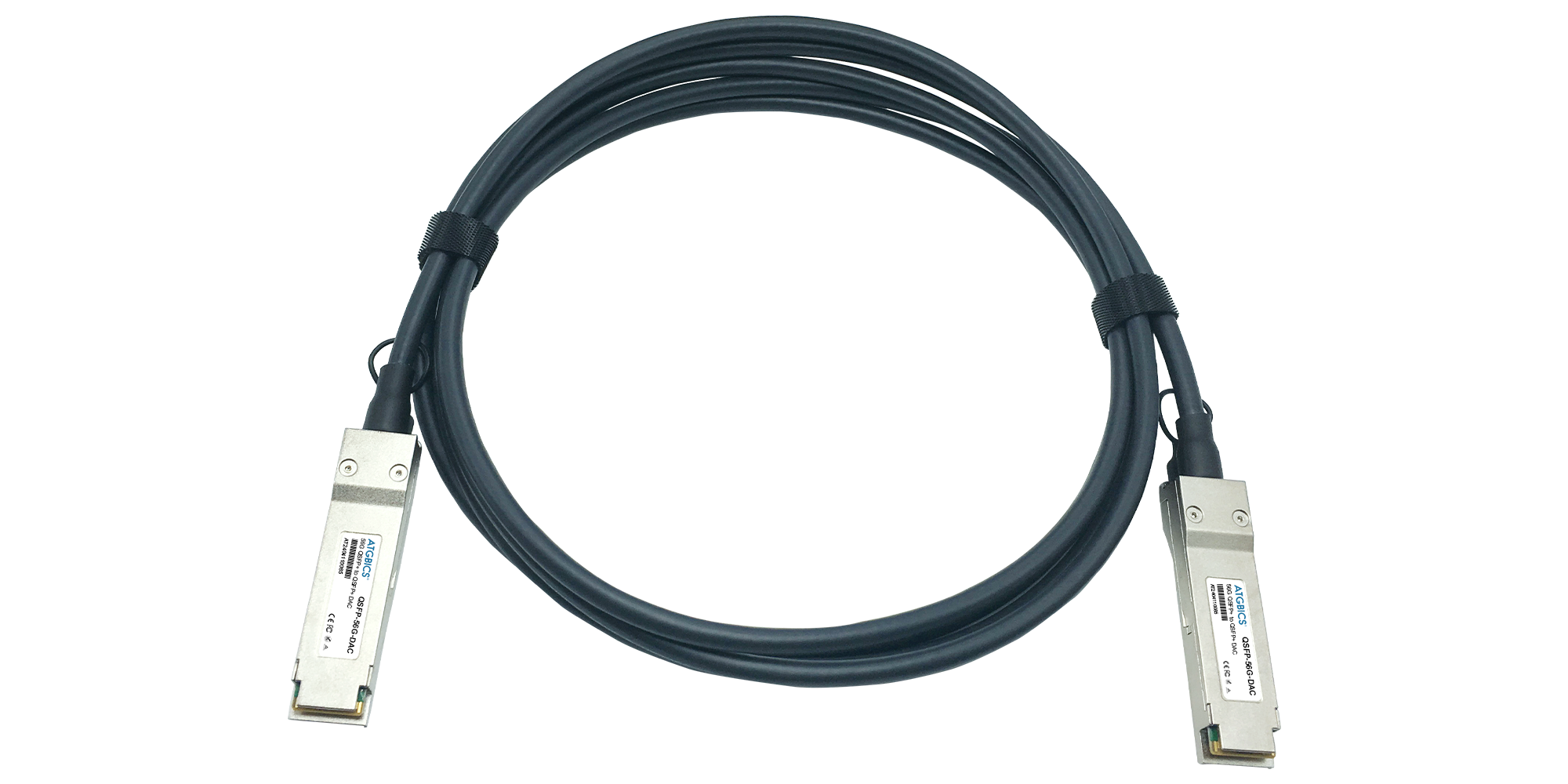

ATGBICS Universally Coded MSA Compliant DAC-QSFP-56G-5M-AT 56GBase-CU QSFP+ to QSFP+ direct attach cable operates over passive copper with a cable length of 5m. It is suitable for short reach connection between two QSFP+ ports in 56G interconnecting networking applications.
Our product meets all Multi-Source Agreement (MSA) standards for this form factor and are uniquely serialised for full date code and BOM traceability. We proudly offer a compatibility guarantee and lifetime replacement warranty.
Product Type: Direct Attach Cable 56G QSFP+ to 56G QSFP+
Product Description: Universally Coded MSA Compliant Transceiver, QSFP+ Direct Attach Copper Cable, 56G QSFP+, 5m, Passive
Compatible OEM: Universally Coded MSA Compliant
Manufacturer: ATGBICS
Technical Specifications
Connector Type | QSFP+ to QSFP+ | Max Data Rate | 56Gbps |
Application Type | Passive Copper |
Cable Length | 5m |
Minimum Bend Radius | 35mm |
Wire AWG | 28AWG |
Jacket Material | PVC (OFNR) | Temperature range | 0 to 70°C (32 to 158°F) |
Compliance Standards | 40G InfiniBand 8x DDR, 4x QDR, 56 Gigabit Ethernet, Fibre Channel | Warranty | Lifetime Replacement |
