Intel I210 based NIC PCIe x2.1 Single Port 1GbE RJ45
Intel I210 based NIC PCIe x2.1 Single Port 1GbE RJ45

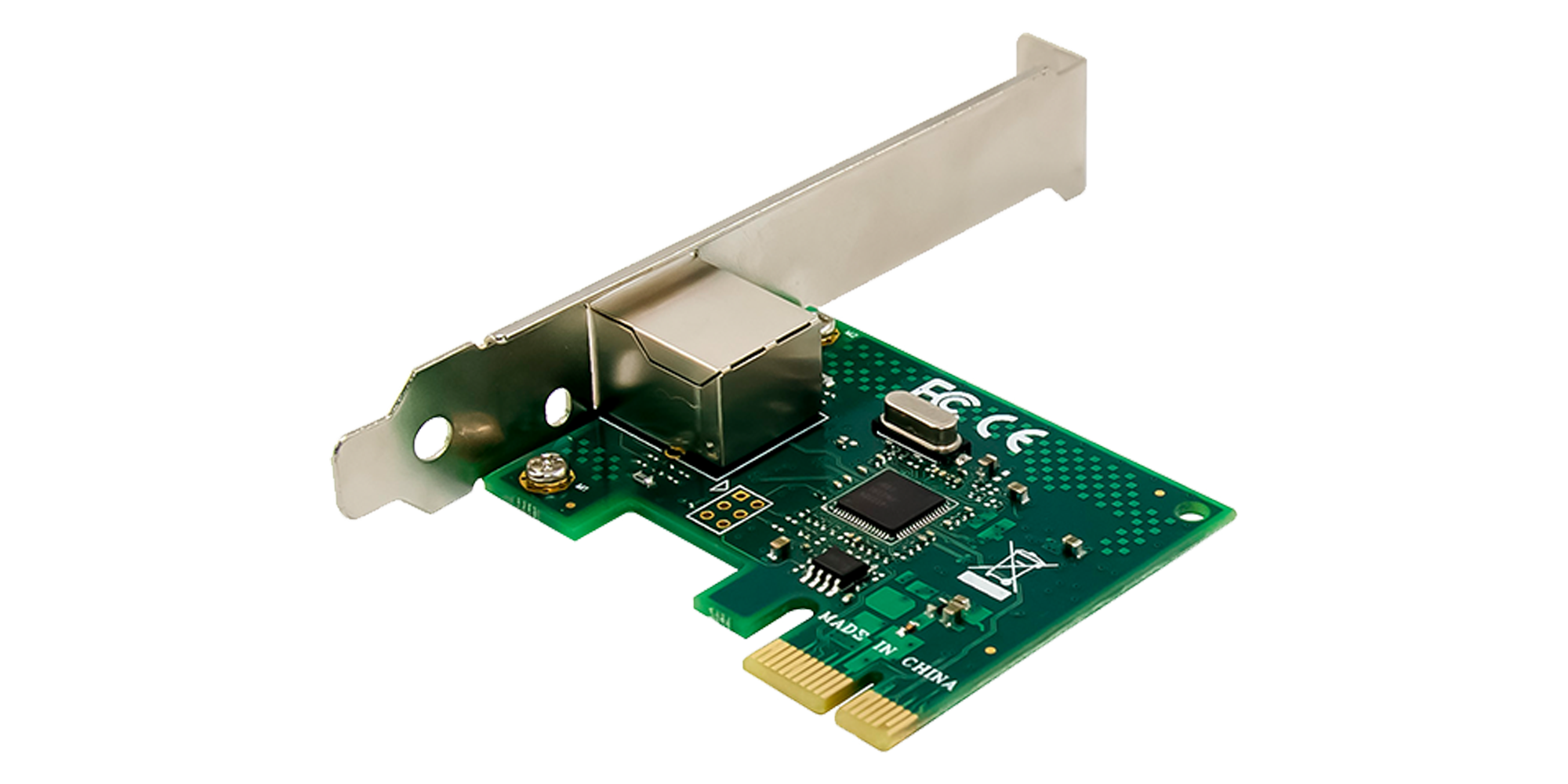

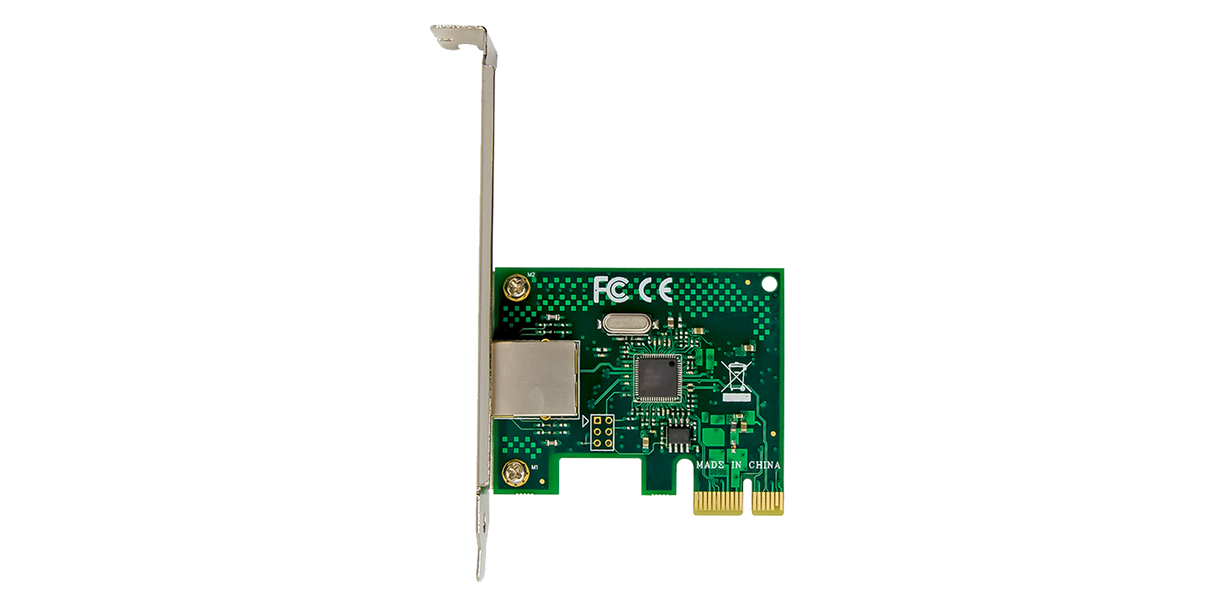

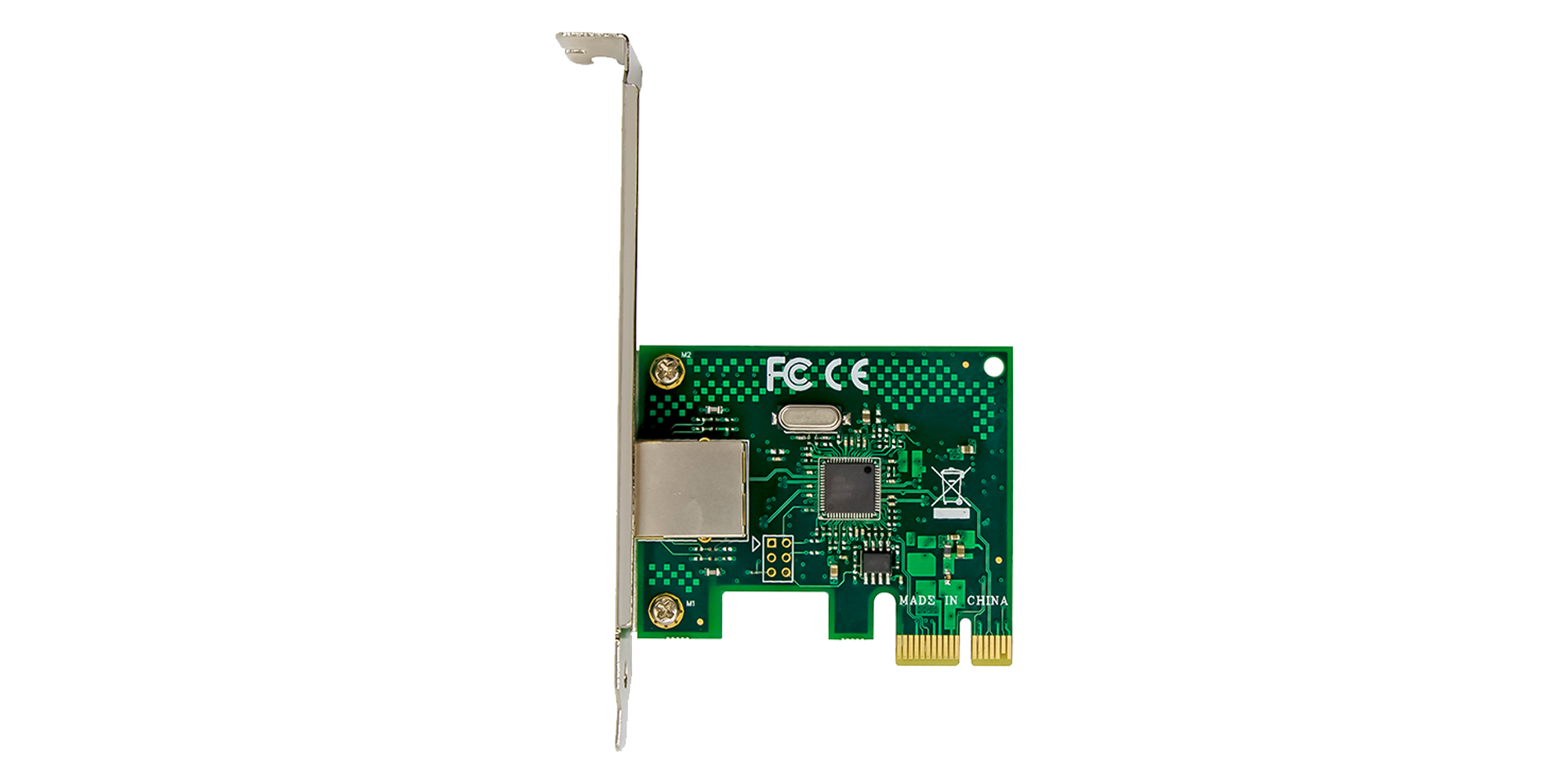

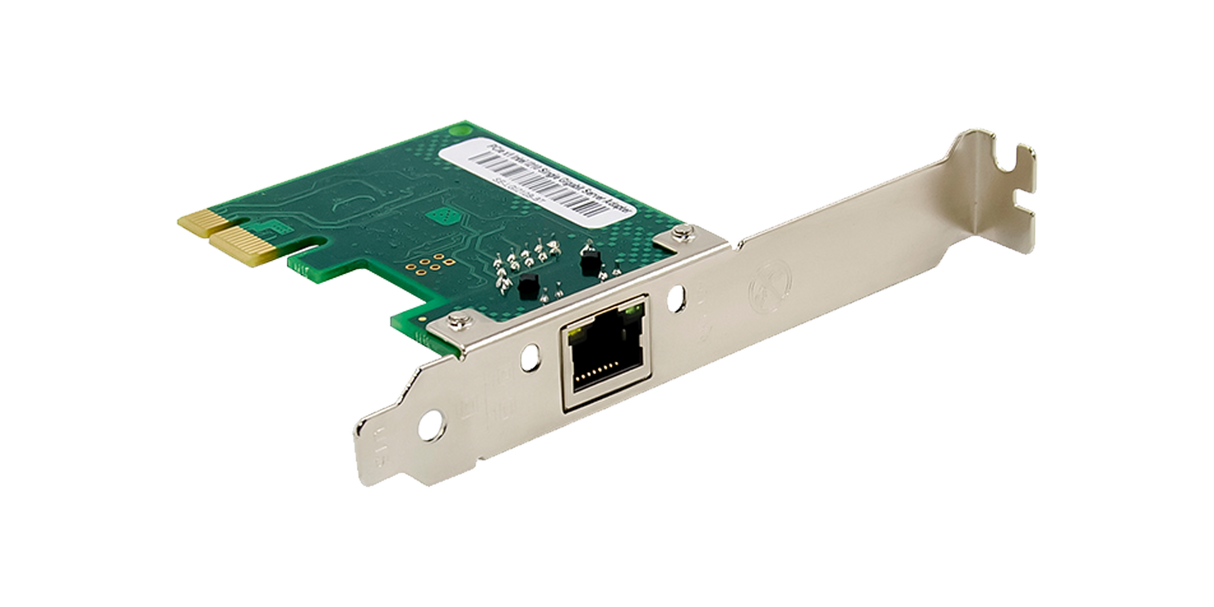

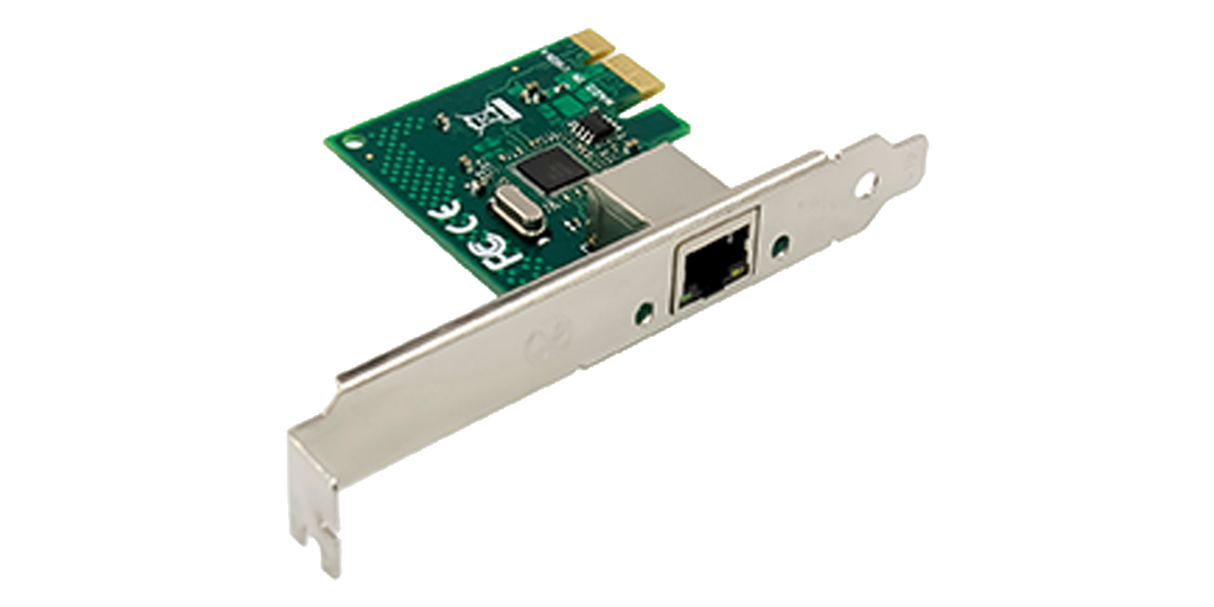

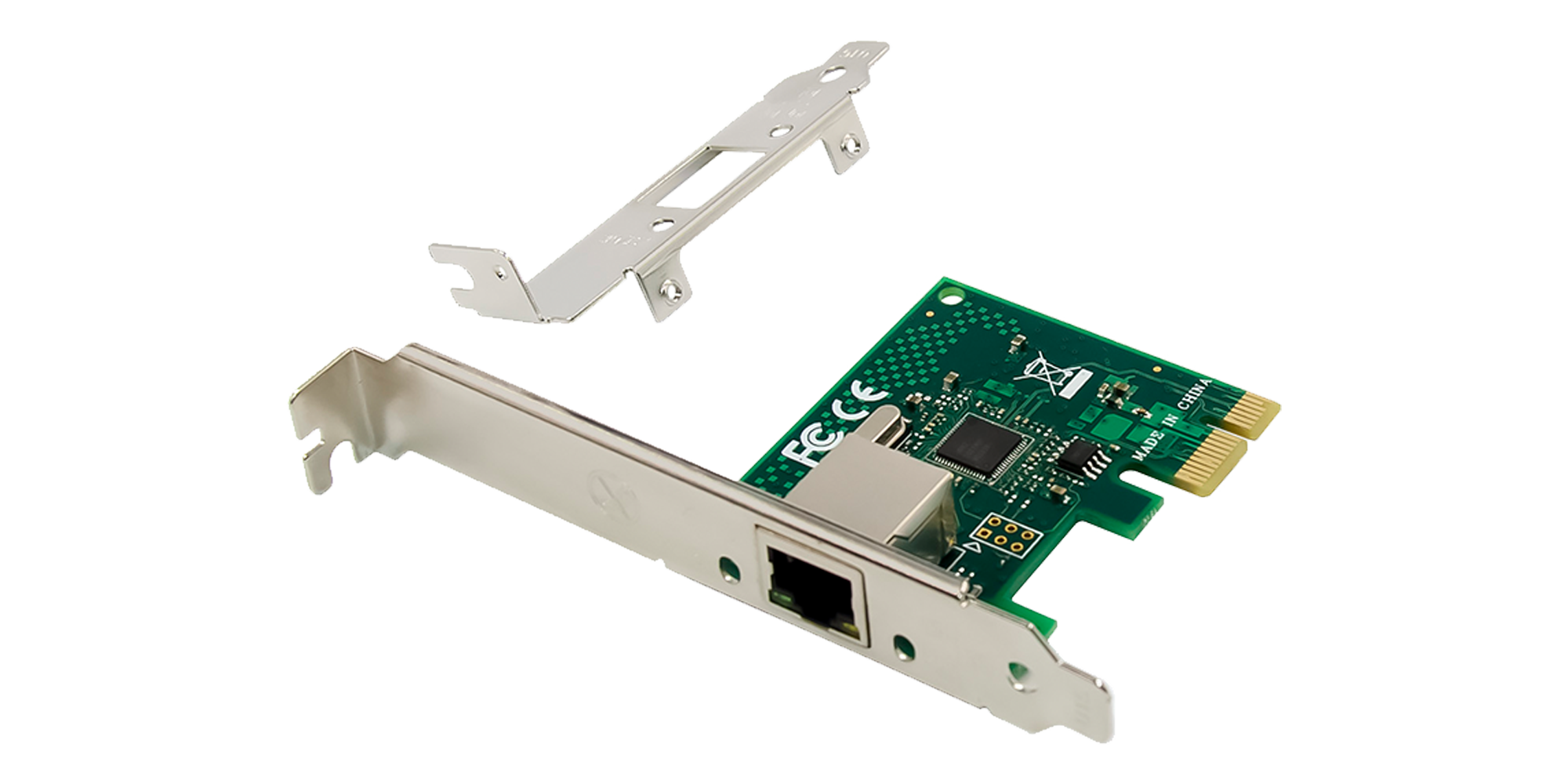

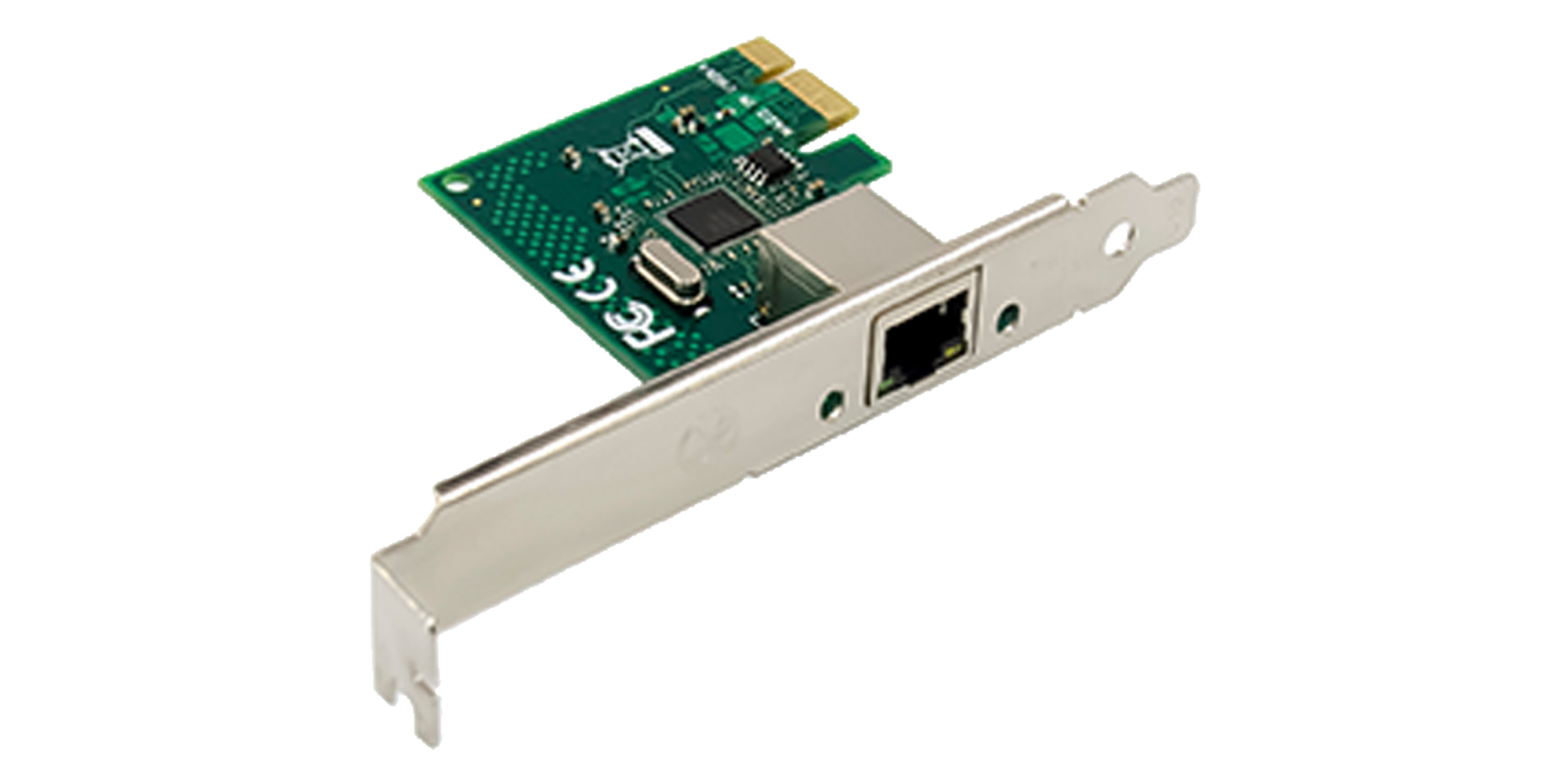

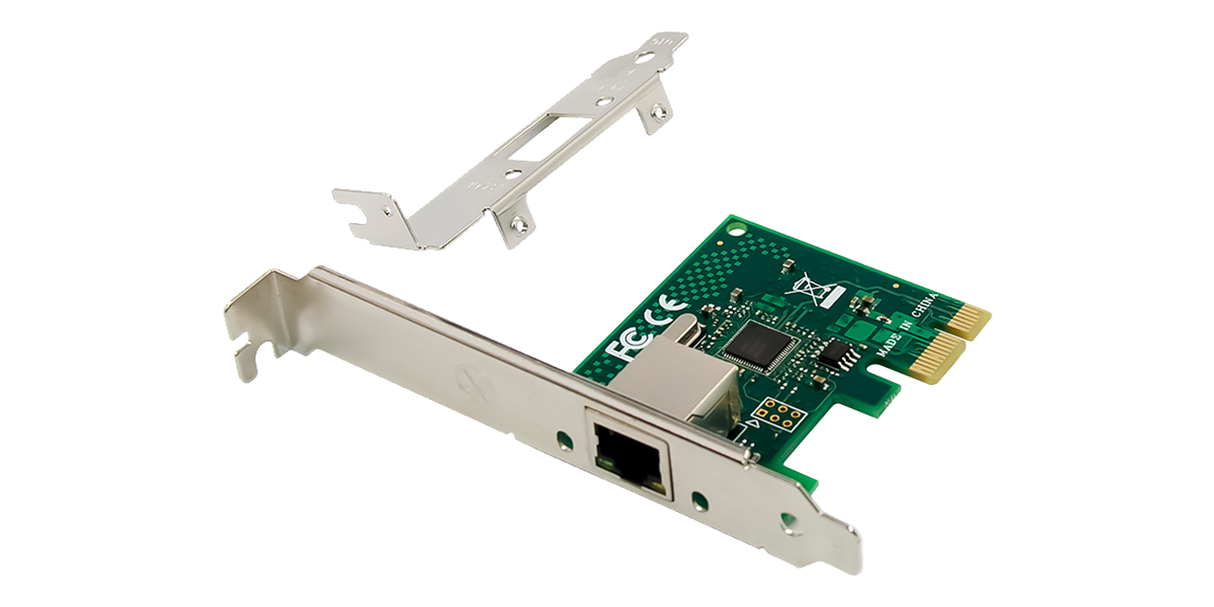

PCIe x1 I210-T1 Network adapter, Based on the Intel Ethernet Controller WGI210AT, By providing unparalleled features of virtualization, flexible features, and proven reliable performance. I210 solves the high requirements of the generation data center, this adapter represents
the next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and data center offering Audio Video-Bridging (AVB) support, along with power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).
▪ Low-halogen, single-port PCI-Express* 10/100/1000 Ethernet adapter
▪ High-performing design supporting PCI Express* Gen 2.1 2.5GT/s
▪ Innovative power management features including Energy Efficient Ethernet (EEE), DMA Coalescing, ultra-compact design, and a unique ventilated bracket for increased efficiency and reduced power consumption
▪ IEEE 802.1Qav Audio-Video-Bridging (AVB) for tightly controlled media stream synchronization, buffering, and reservation
▪ Hardware-based time stamping of IEEE 1588 and 802.1AS packets enabling high-precision time synchronization over Ethernet
▪ MDI (Copper) standard IEEE 802.3 Ethernet inter-face for 1000BASE-T, 100BASE-TX, 10BASE-T connections (IEEE 802.3, 802.3u, 802.3ab)
System Requirements
Windows Client: Windows 10/8.1/8/7
Windows Sever: 2008 R2/2012/2012 R2/2016/2019
Linux: RHEL7.9/8.4/8.5, SLES12SP5, SLES15SP3, Ubuntu18.04LTS/20.04LTS, FreeBSD 12.2/13
Specification
- PCI-Express 2.1 form factor - 1 x 2.5Gbps line
- Complies with single port 1GbE RJ45 port
- Complies with the IEEE802.3ab, IEEE802.3u and IEEE802.3 specifications
- Half duplex at 10/100Mbp operation and full duplex operation at all supported speeds
- Chipset: Intel WGI210AT
- Layer 2 functions: IEEE 802.3x Flow Control - IEEE 802.1q VLAN
- Supports Receive-side scaling (RSS)
- Supports IPv 4, IPv 6 protocols
- Supports Jumbo Frames up to 9K
- Supports Checksum offloading
-
Connector Type
-
Data Rate
-
Media
-
Storage Temperature
-
Bracket Height
-
Bus Type
-
Bus Width
-
Chipset
-
Protocol
-
Link Rate
-
Number of Ports
-
RDMA
-
Compatible OEM
-
Operating Temperature Range
-
Safety & Environmental Standards
-
Warranty
-
Dimensions
-
ECCN
